SolarEdge & SolarEdge high-voltage retrofit storage package with 9.7 kWh
| Art. Nr.: | 11753 |
|---|---|
| Inverter: | SE5000H AC |
| Phases: | 1 |
| Solar battery: | SolarEdge Home Batterie-Hochvolt 9,7 kWh Batterie |
| Net capacity: | 9.7 kWh |
| Battery type: | High volt lithium |
| Accessoires: | SolarEdge Home Energiezähler, Home Netzwerk Plug-in |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
Prices are only visible to business customers upon successful registration.
- TIP
- Sale
Available from stock
Product number:
11753
-
-
{ "id": "c4a9e620b34e54ef94df4fc02cd84a96", "item_brand": "", "item_name": "SolarEdge One Controller HOME", "item_id": "12415", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c4a9e620b34e54ef94df4fc02cd84a96" } } -
{ "id": "c9de23d61e765dfb8c48367788baa73e", "item_brand": "", "item_name": "SolarEdge charging station 22 kW, socket, RFID, MID", "item_id": "10344", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c9de23d61e765dfb8c48367788baa73e" } } -
Handles for SolarEdge Home high-voltage battery, 4 pcs.- Art. Nr.: 6649
- SolarEdge
Available from stock{ "id": "36ad6f7f28ce5cb280722800ab1456c0", "item_brand": "", "item_name": "Handles for SolarEdge Home high-voltage battery, 4 pcs.", "item_id": "6649", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "36ad6f7f28ce5cb280722800ab1456c0" } } -
{ "id": "72e114def6b45652bc366385fc44b62f", "item_brand": "", "item_name": "SolarEdge Home high-voltage battery base plate", "item_id": "6648", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "72e114def6b45652bc366385fc44b62f" } }
-
Description
Better value as a bundle! : SolarEdge retrofit package comprising a high-voltage battery and an SE5000H AC Inverter
For existing systems with SolarEdge PV inverters, it makes sense to choose SolarEdge for your storage solution too. This is now very easy to do with the SolarEdge Battery Retrofit Package. Systems with inverters from other manufacturers can also be retrofitted with this storage package using a second meter. Use the free SolarEdge Designer for system design.
SolarEdge inverters do not have a display. Commissioning the inverters is quick and easy using the SolarEdge app on your smartphone.
SolarEdge inverters come with a standard 12-year warranty, confirming their quality.
Warranty extensions can be purchased at https://www.solaredge.com/de/warranty.
SolarEdge Home Battery training course available on EDGE Academy: ENG, IT, NL, FR, DE, ES
Package contents:
- SE5000H AC Battery Inverter
- SE Home High-Voltage Battery 9.7 kWh
- SE Home Energy Meter

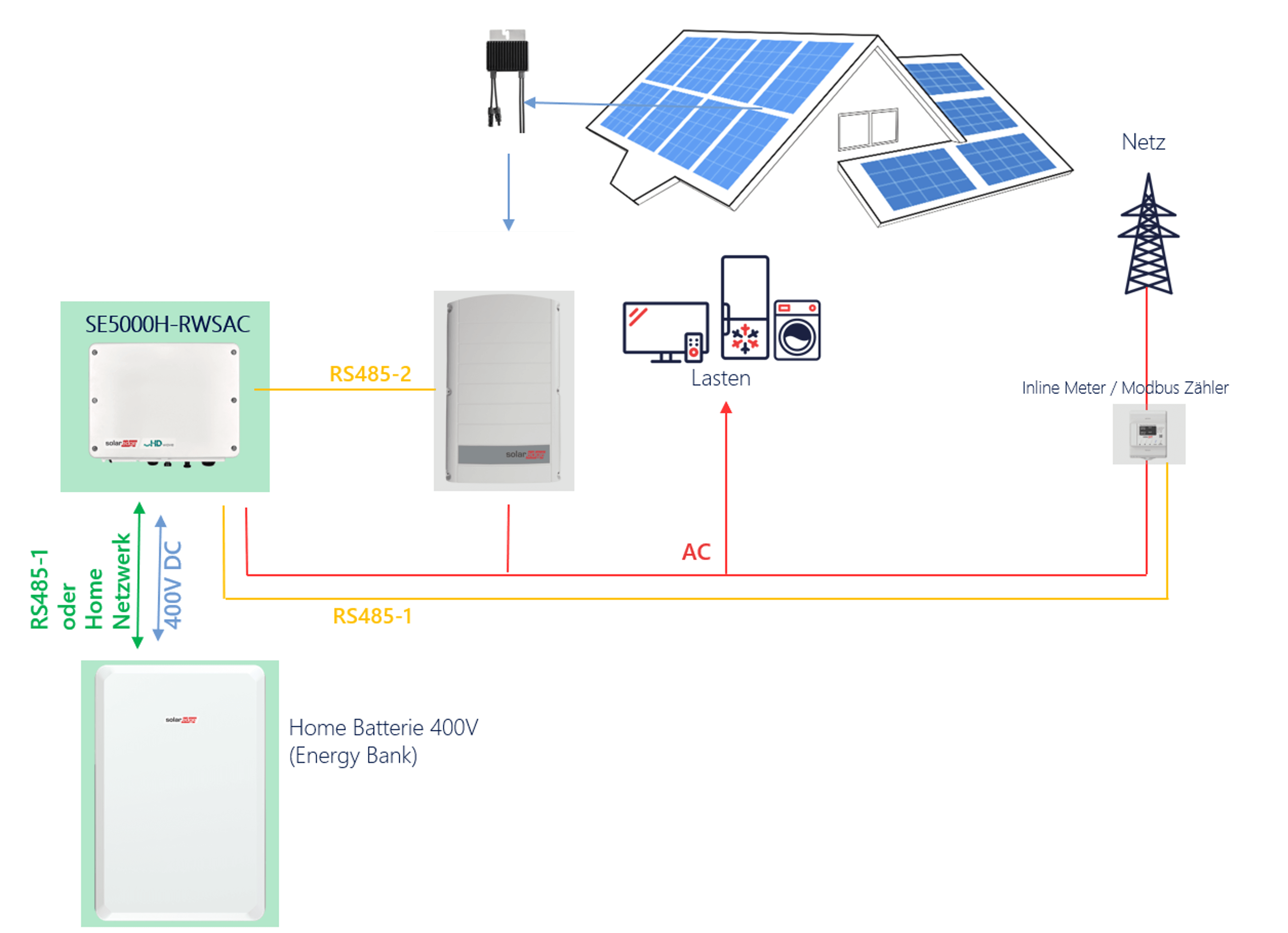

- SE Home Network Plug-in for AC Battery Inverter (further information on communication in the Tech Tip and Product Image No. 2)
Product benefits of the SolarEdge Home Battery HV 9.7 kWh:
- Optimal system efficiency thanks to optimised components
- A single, expert point of contact for service
- Scalable – up to 3 batteries on a single Inverter
- The wireless connection to the Inverter simplifies installation
- Easy installation with the SolarEdge SetApp
Product specifications SolarEdge Home Battery HV 9.7 kWh:
- Net capacity: 9.7 kWh (at 100% DoD) Gross capacity: 10.3 kWh
- Rated power: 5 kW
- Warranty: 10 years
- Compatibility: Single-phase inverters with HD-Wave Technology, StorEdge single-phase inverters with HD-Wave Technology
- Communication: Wireless connection via SolarEdge Home Network Plug-in
- Weight: 121 kg
- Dimensions: 790 x 1179 x 250 mm
- Protection class: IP 55
- Installation: Indoor or outdoor installation possible. Wall mounting with brackets or floor mounting with base plate possible (must be ordered separately)
Product advantages of the SolarEdge SE5000H AC BEN4:
- DC nominal voltage 380 Vdc
- Very high efficiency of up to 99.2%
- Internet connection via RJ45 network port
- Optional WiFi
Product features SolarEdge SE5000H AC BEN4:
- 4.6 kVA power, single-phase
- 2 pairs of MC4 inputs
- Interfaces: Ethernet, RS485
- Protection class: IP65
- Standard warranty: 12 years
- Dimensions: 280 x 370 x 142 mm (H x W x D)
- Weight: 9.5 kg
