Solinteg E2BR-S64K-C with M2HT-30K-150
| Art. Nr.: | 15879 |
|---|---|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 57.87 kWh |
| Power: | 30 kW |
| Warranty: | 5 years |
| Charging power: | 30 kW |
| Discharging power: | 30 kW |
| Communication: | CAN/RS485 |
| Commercial storage type: | All-in-One |
Prices are only visible to business customers upon successful registration.
- New
Available from 24.08.2026
Product number:
15879
Description

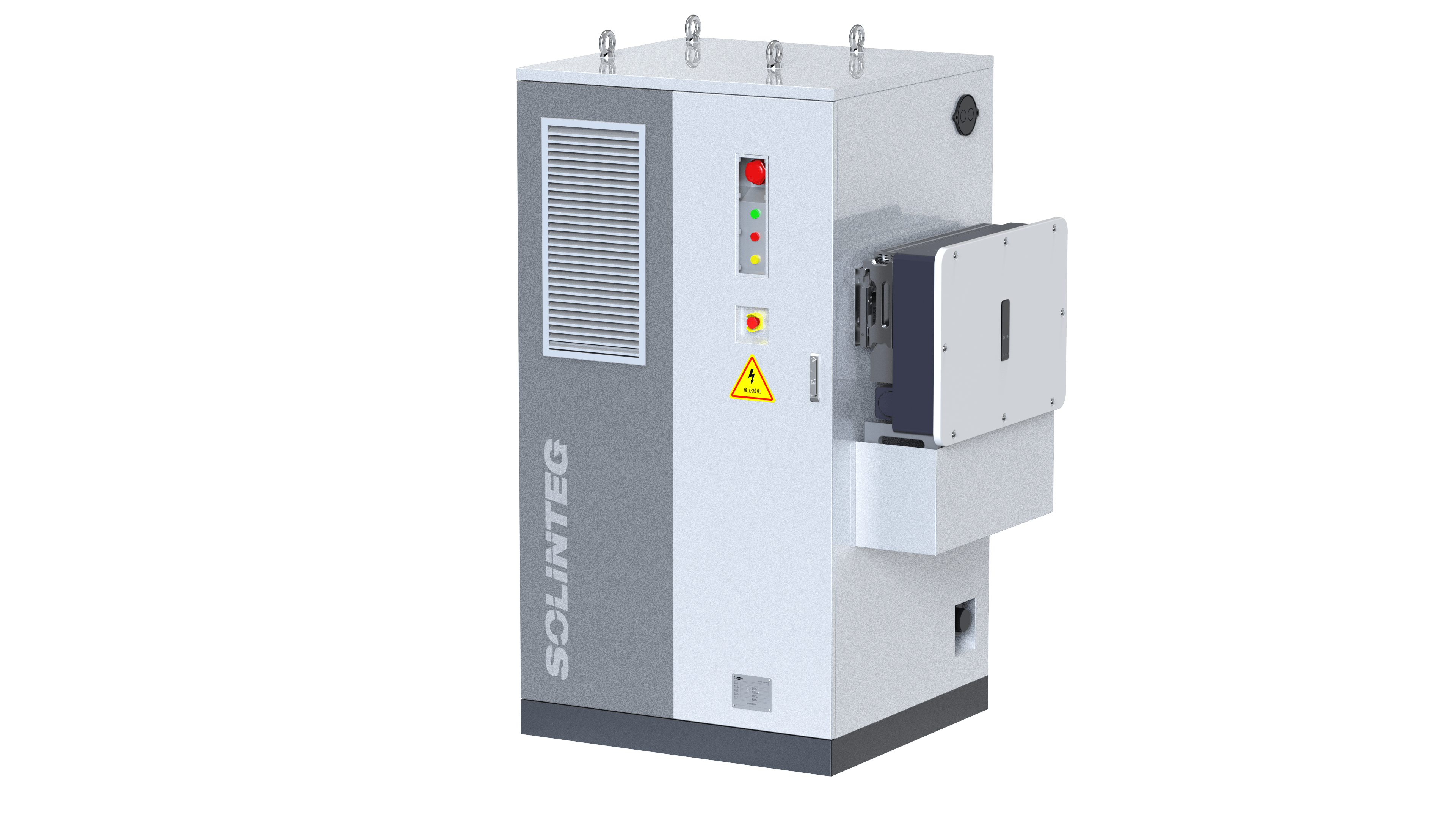

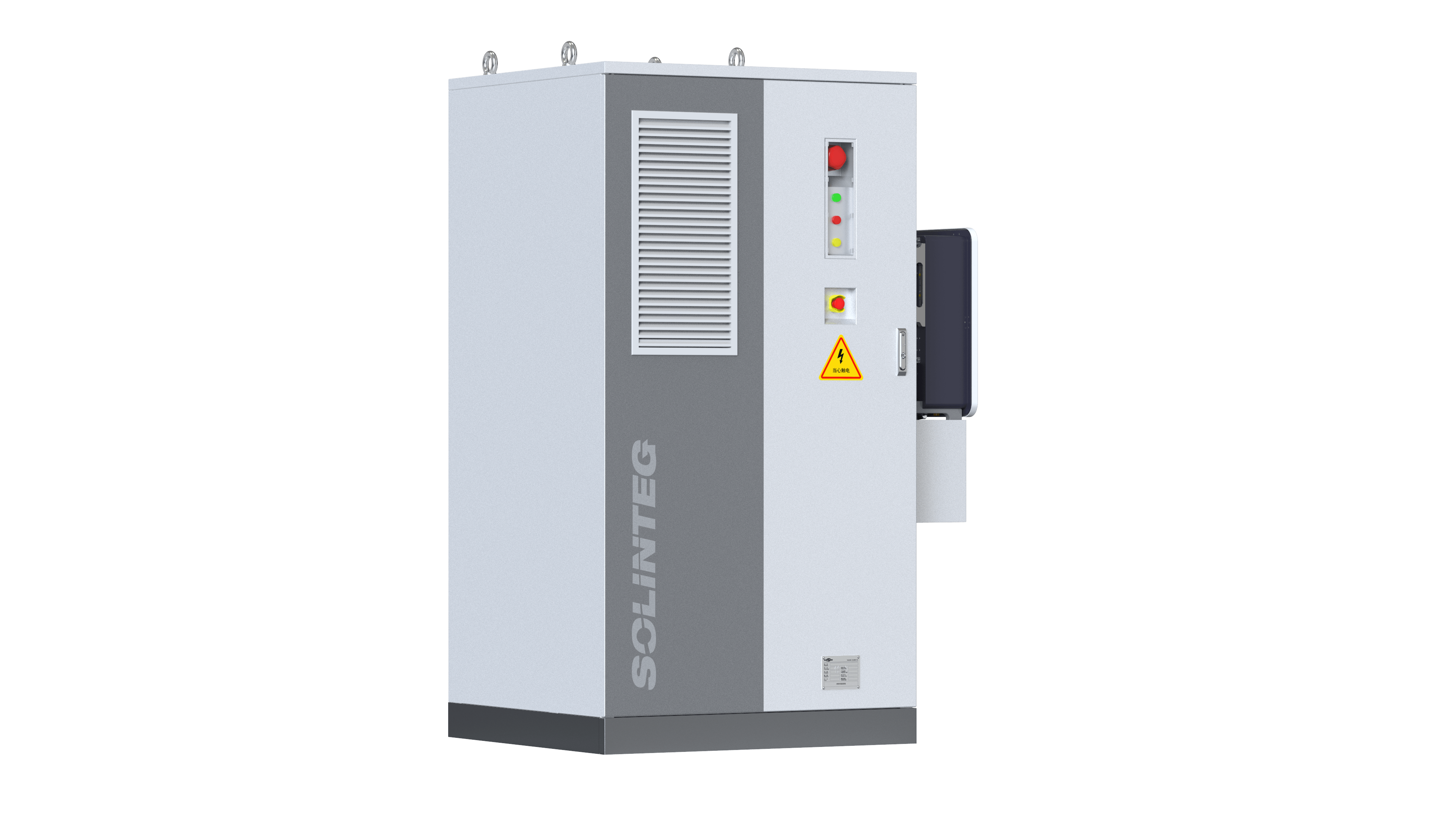

Solinteg E2BR-S64K-C with Solinteg M2HT-30K-150
The Solinteg E2BR-S64K-C, combined with the Solinteg M2HT-30K-150, forms a high-performance all-in-one energy storage system for commercial and industrial applications.
The combination of a 64.3 kWh Battery storage system and a 30 kW hybrid inverter enables efficient self-consumption optimisation, peak shaving and a reliable emergency power supply. Thanks to their specially coordinated design and the mounting bracket included with the Inverter, both components can be seamlessly combined.
Package benefits:
- A storage and inverter system optimally matched to one another
- 64.3 kWh storage capacity for high self-consumption rates
- 30 kW charging and discharging power
- Four MPP trackers for maximum flexibility in system design
- Up to 60 kWp of PV capacity can be connected
- Back-up power function with a switchover time of < 10 ms
- Support for peak shaving and load management
- Integrated air conditioning and multi-stage fire protection system
- Protection rating IP55 (cabinet) and IP66 (Inverter)
Product features of the Solinteg E2BR-S64K-C:
- Storage capacity: 64.3 kWh
- Usable storage capacity: 57.87 kWh
- Battery type: Lithium iron phosphate (LiFePO₄)
- Number of battery modules: 4
- Nominal voltage: 204.8 V
- Operating voltage range: 166.4 – 233.6 V
- Recommended charge/discharge current: 157 A
- Cycle life: 8,000 cycles
- Protection rating: IP55
- Communication: CAN, RS485
- Weight: 1,089 kg
- Dimensions (L × W × H): 1,140 × 1,050 × 2,262 mm
- Performance guarantee: 10 years up to 70% remaining capacity or 224 MWh of energy output
Product specifications for Solinteg M2HT-30K-150:
- Rated AC power: 30 kW
- Max. PV power: 60 kWp
- Number of MPP trackers: 4
- Max. PV input current: 40 A per MPPT
- Battery voltage range: 150–840 V
- Max. charge/discharge current: 150 A
- Charging/discharging power: 30 kW
- Max. efficiency: 97.8%
- Communication: CAN, RS485
- Protection rating: IP66
- Weight: 89 kg
- Dimensions (L × W × H): 919 × 305 × 739 mm
- Warranty: 5 years
Contents
- Solinteg E2BR-S64K-C battery cabinet with 64.3 kWh
- Solinteg M2HT-30K-150 hybrid inverter including mounting bracket
