Solinteg E2BR-S96K-C with M2HT-50K-150
| Art. Nr.: | 15880 |
|---|---|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 86.76 kWh |
| Power: | 50 kW |
| Warranty: | 5 years |
| Charging power: | 50 kW |
| Discharging power: | 50 kW |
| Communication: | CAN/RS485 |
| Commercial storage type: | All-in-One |
Prices are only visible to business customers upon successful registration.
- New
Available from 24.08.2026
Product number:
15880
Description

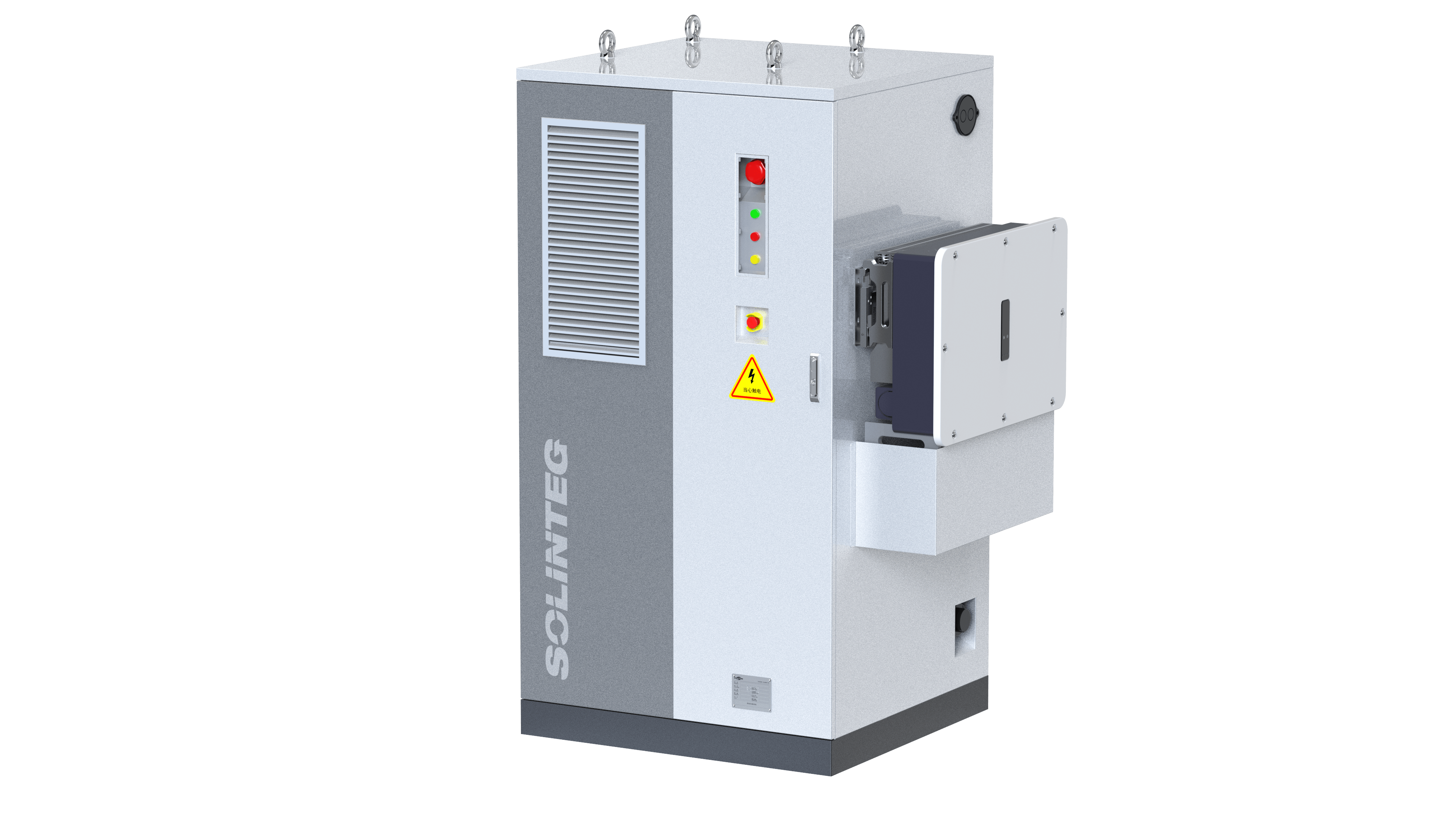

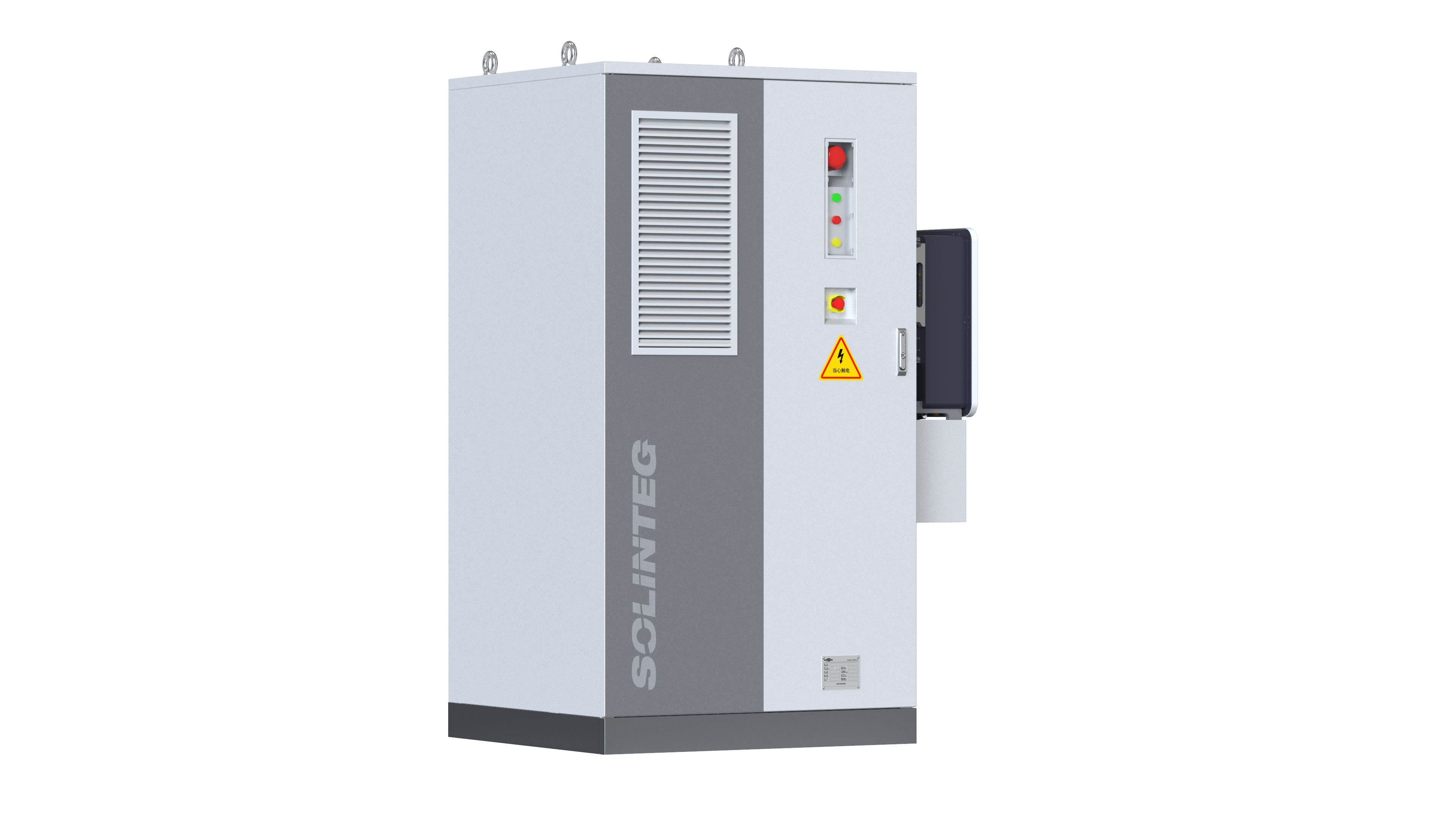

Solinteg E2BR-S96K-C with Solinteg M2HT-50K-150
The Solinteg E2BR-S96K-C, combined with the Solinteg M2HT-50K-150, offers a high-performance storage solution for demanding commercial and industrial applications.
With a storage capacity of 96.4 kWh and a hybrid inverter output of 50 kW, the system is ideally suited to Self-consumption optimisation, peak load shaving and enhancing security of supply. The coordinated design of the battery cabinet and hybrid inverter enables simple and seamless installation.
Package benefits:
- Fully integrated C&I storage system
- 96.4 kWh storage capacity
- 50 kW charging and discharging power
- Up to 100 kWp of PV capacity can be connected
- Four MPP trackers for flexible roof orientations
- Support for peak shaving and load management
- Back-up power function with switchover time < 10 ms
- Integrated temperature management and multi-stage fire protection system
- Protection rating IP55 (cabinet) and IP66 (Inverter)
Product features of the Solinteg E2BR-S96K-C:
- Storage capacity: 96.4 kWh
- Usable storage capacity: 86.8 kWh
- Battery type: Lithium iron phosphate (LiFePO₄)
- Number of battery modules: 6
- Nominal voltage: 307.2 V
- Operating voltage range: 249.6–350.4 V
- Recommended charge/discharge current: 157 A
- Cycle life: ≥ 8,000 cycles
- Communication: CAN, RS485
- Protection rating: IP55
- Corrosion protection class: C5
- Weight: 1,315 kg
- Dimensions (L × W × H): 1,140 × 1,050 × 2,262 mm
- Performance guarantee: 10 years up to 70% remaining capacity or 336 MWh of energy output
Product specifications for Solinteg M2HT-50K-150:
- Rated AC power: 50 kW
- Max. PV power: 100 kWp
- Number of MPP trackers: 4
- Max. PV input current: 40 A per MPPT
- Battery voltage range: 150–840 V
- Max. charge/discharge current: 150 A
- Charging/discharging power: 50 kW
- Max. efficiency: 97.8%
- Communication: CAN, RS485
- Protection rating: IP66
- Weight: 89 kg
- Dimensions (L × W × H): 919 × 305 × 739 mm
- Warranty: 5 years
Contents
- Solinteg E2BR-S96K-C battery cabinet with 96.4 kWh
- Solinteg M2HT-50K-150 hybrid inverter including mounting bracket
