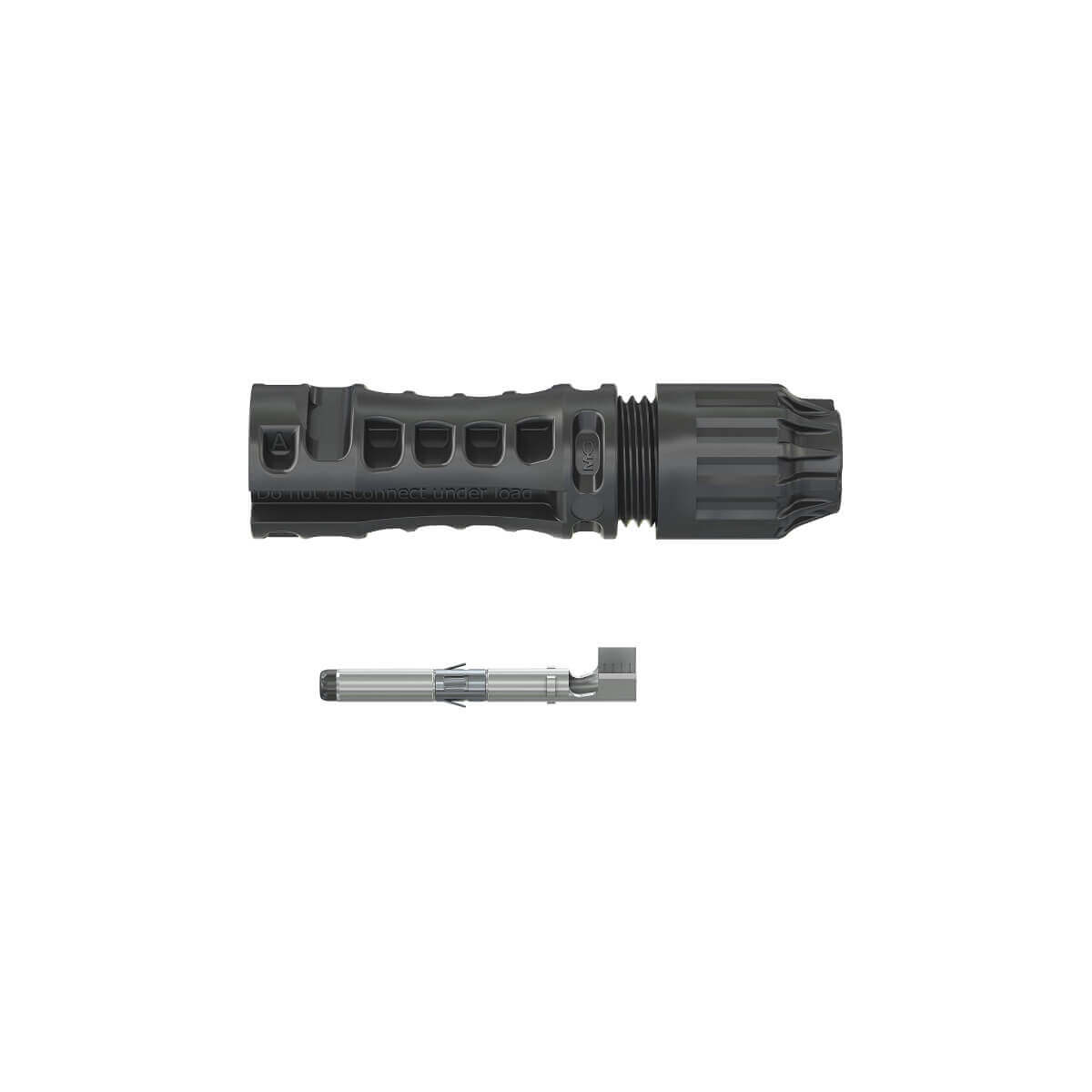

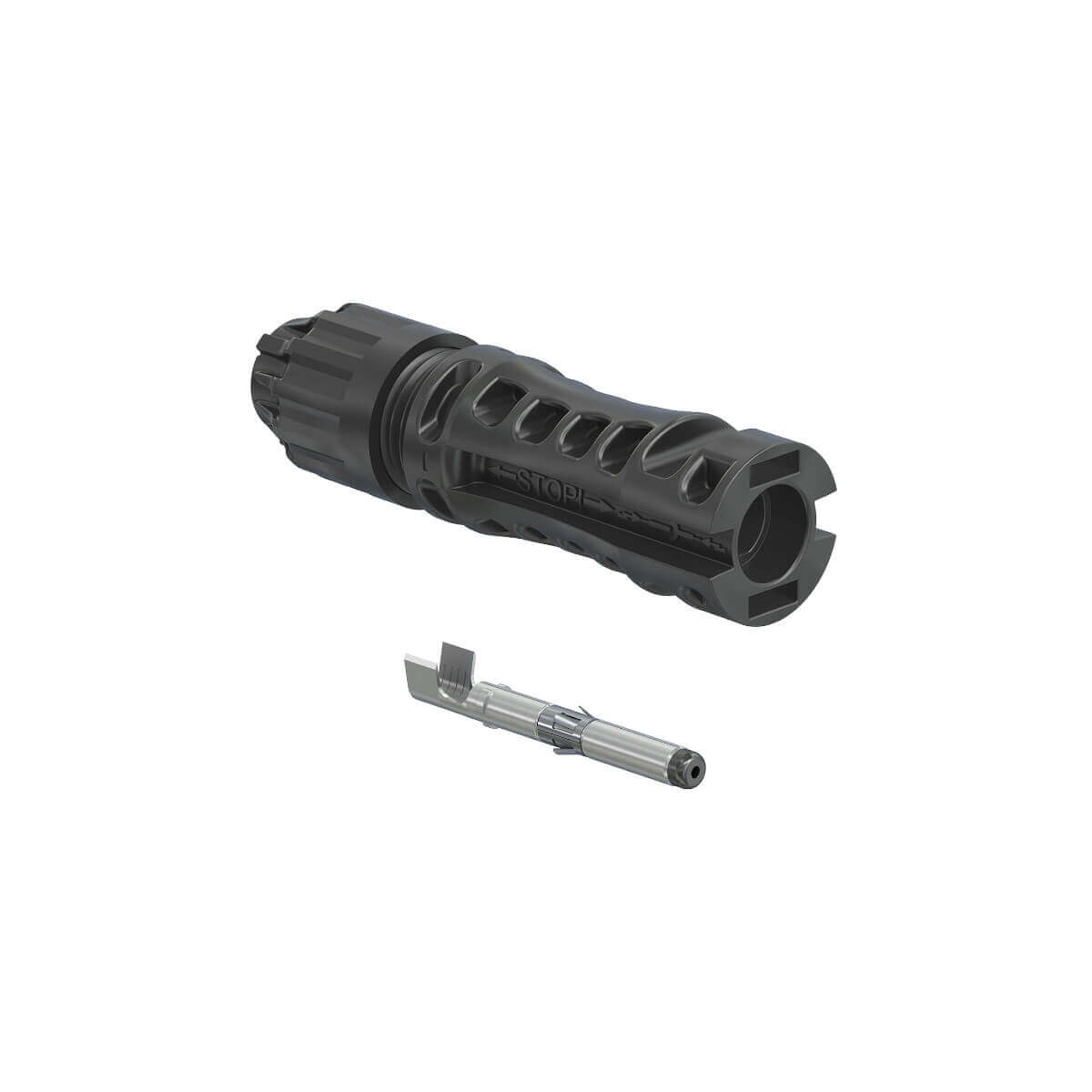

Stäubli MC4-EVO 2 plug 4/6 mm², Da 6.4 – 8.4mm

Stäubli

Type of manufacturer:	PV-KST4-EVO 2A/6II
Manufacturer Art. No.:	32.0321P0001
Art. Nr.:	8987
Pieces per package unit:	100 per carton
Accessory type:	Plugs
WEEE-Number:	DE83512114

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 8987

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 8987

Tech tip

If you make a mistake when assembling the plugs and sockets or press them incorrectly – the inner workings of the connectors are also available as individual parts.

Stäubli Multi Contact MC4-EVO 2 connector for system voltages up to 1,500 V DC and cables with 4/6 mm²

The MC4 and MC4-EVO 2 connectors from Stäubli are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.

The scope of delivery includes the housing and the inner part.

Product advantages

Meets the requirements of IEC 61984:2008
TÜV certification according to IEC 62852:2014 in combination with corresponding PV cables
UL certification according to 6703:2014 in combination with corresponding PV cables
Can also be used in systems outside the photovoltaic sector

Product features Stäubli MC4-EVO 2 plug 4/6 mm², Da 6,4 - 8,4 mm

Cable cross-section (conductor): 4/6 mm²
Outer cable diameter: 6.4 – 8.4 mm
Rated voltage: 1,500 V DC
Ambient temperature: -40 °C to +85 °C
Protection class plugged in: IP 65

Internationally certified according to IEC, UL, JET and cTÜVus. Approved for DC 1500 V (IEC, JET), DC 1500 V (UL). The quality and durability of MULTILAM technology has proven itself many hundreds of millions of times since 2004. Suitable for all climatic conditions thanks to UV and ammonia resistance and high IP protection class (IP68). Field assembly or pre-assembled connector, use of standard crimping pliers possible. Plug-in compatible with the original MC4 connector family.

Downloads

Staubli Orignial MC4 EVO 2 Datasheet

Matching accessories
Solar cable HELUKABEL Solarflex H1Z2Z2-K 10.0 mm² 500m black

Type of manufacturer: 713532

Art. Nr.: 5758

Available from stock

Sign up to view the prices

{ "id": "007c371c77f350a5a8feea2106ad3b85", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 10.0 mm² 500m black", "item_id": "5758", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "007c371c77f350a5a8feea2106ad3b85" } }

Solar cable HELUKABEL Solarflex H1Z2Z2-K 10.0 m² 500m blue

Type of manufacturer: 713572

Art. Nr.: 5782

Available from stock

Sign up to view the prices

{ "id": "6d9dca6d159f5fd9b418d25969ce098c", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 10.0 m² 500m blue", "item_id": "5782", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6d9dca6d159f5fd9b418d25969ce098c" } }

Solar cable HELUKABEL Solarflex H1Z2Z2-K 10.0 mm² 500m red

Type of manufacturer: 713571

Art. Nr.: 5780

Available from stock

Sign up to view the prices

{ "id": "41b7b800c7705bc59dabac4b9653a447", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 10.0 mm² 500m red", "item_id": "5780", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "41b7b800c7705bc59dabac4b9653a447" } }

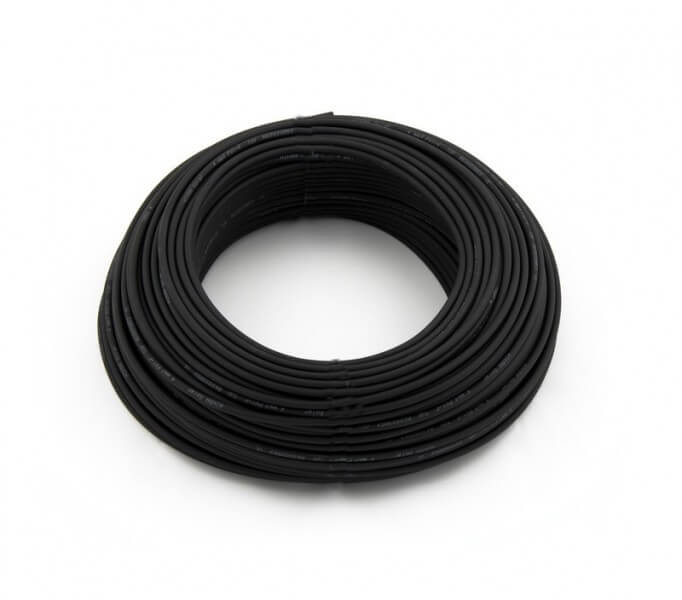

Solar cable HELUKABEL Solarflex H1Z2Z2-K 10.0 mm² 100m black
