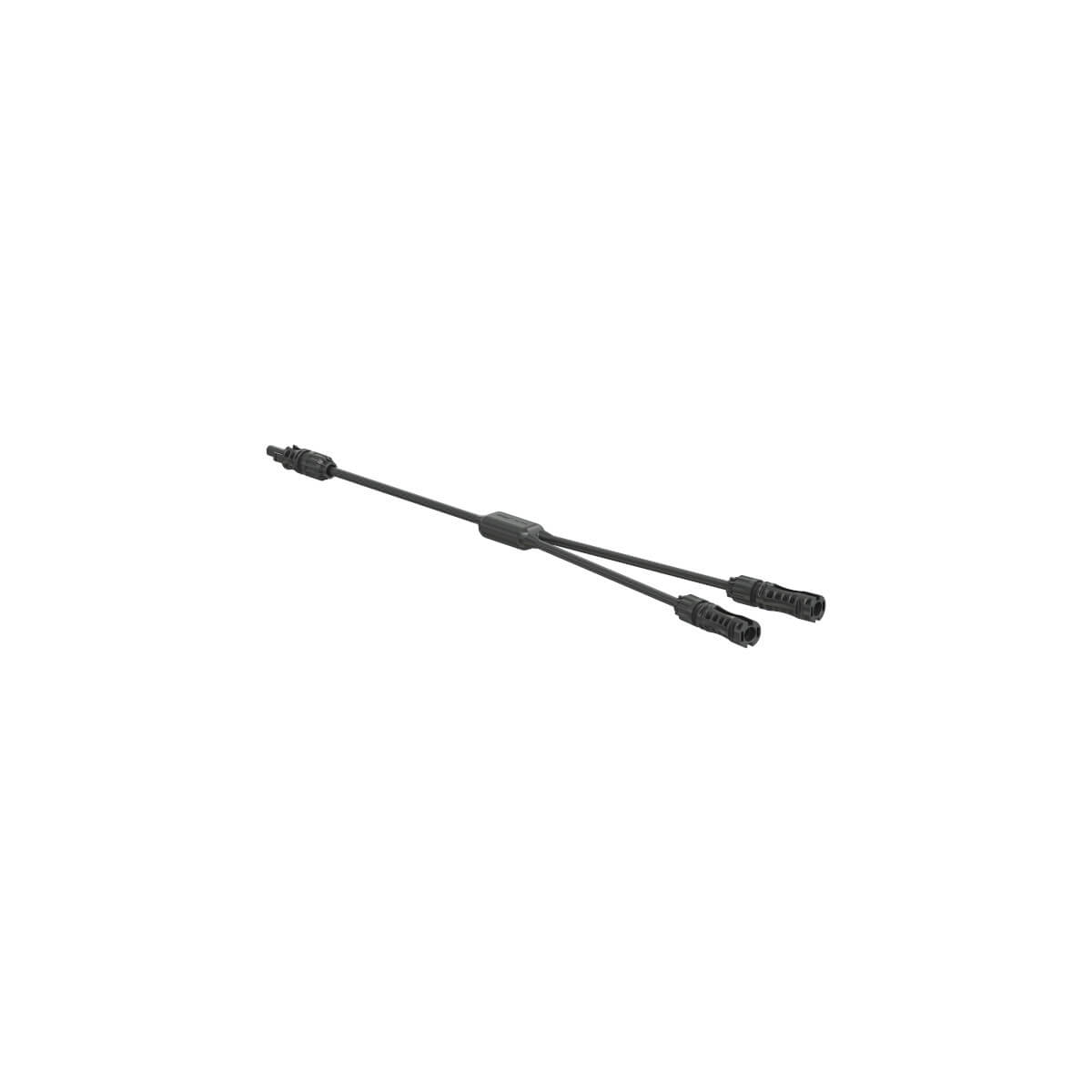

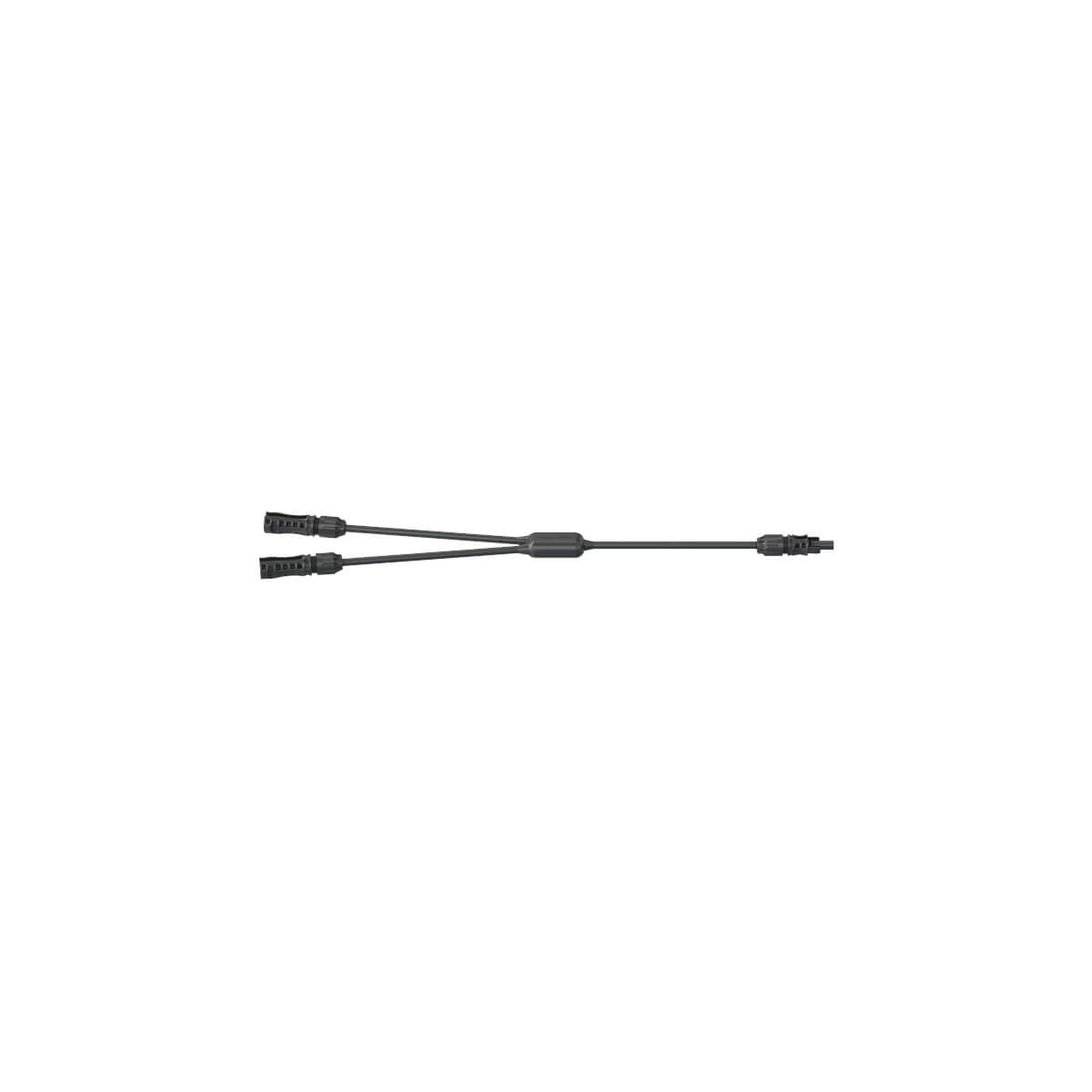

Stäubli MC4-EVO 2 Y-splitter 1,500 V, 53 A, 2 x plug, 1 x socket
| Type of manufacturer: | PV-K/SPL-Y-6-15/15-15EPP/ES-0050 |
|---|---|
| Manufacturer Art. No.: | 32.0333 |
| Art. Nr.: | 8992 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8992
Description
Stäubli Multi Contact MC4-EVO 2 Y-splitter for system voltages up to 1,500 V DC / 53 A
Stäubli's MC4 and MC4-EVO 2 connectors are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.
The scope of delivery includes the socket as well as the inner part.
Product advantages
- Low heat generation
- Minimum energy loss
- Certified according to TÜV Rheinland 2PfG 191
- Höchstklassige Schutzklasse IP65
- Can also be used in systems beyond the photovoltaic sector
Product features Stäubli MC4-EVO 2 Y-Splitter 1,500 V DC / 53 A
- Cable length: 50 cm
- Cable cross section: 6 mm²
- Rated voltage: 1,500 V DC
- Rated current: 53 A
- Ambient temperature: -40 °C to +85 °C
- Protection category: IP 65
- 2 x plug, 1 x socket
The DC cabling system offers first-class quality and outstanding features. The unique manufacturing process with vulcanization permanently delivers the highest IP protection and offers superior performance even under harsh climatic conditions.
-
Matching accessories
-
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black- Type of manufacturer: 713531
- Art. Nr.: 5734
Available from stock{ "id": "02eb7ea1d0a956a5b4c52598abf1754f", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black", "item_id": "5734", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "02eb7ea1d0a956a5b4c52598abf1754f" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black- Type of manufacturer: 713531
- Art. Nr.: 5752
Available from stock{ "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb" } } -
Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm- Type of manufacturer: PV-KST4/6I-UR
- Art. Nr.: 338
Available from stock{ "id": "0dae6ec5fad8591a9f118659ff2184db", "item_brand": "", "item_name": "Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm", "item_id": "338", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0dae6ec5fad8591a9f118659ff2184db" } } -
Stäubli MC4 socket, 4-6 mm² I, diameter 5-6 mm- Type of manufacturer: PV-KBT4/6I-UR
- Art. Nr.: 339
Available from stock{ "id": "50777318441e5d52b9e4059410de4900", "item_brand": "", "item_name": "Stäubli MC4 socket, 4-6 mm² I, diameter 5-6 mm", "item_id": "339", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "50777318441e5d52b9e4059410de4900" } } -

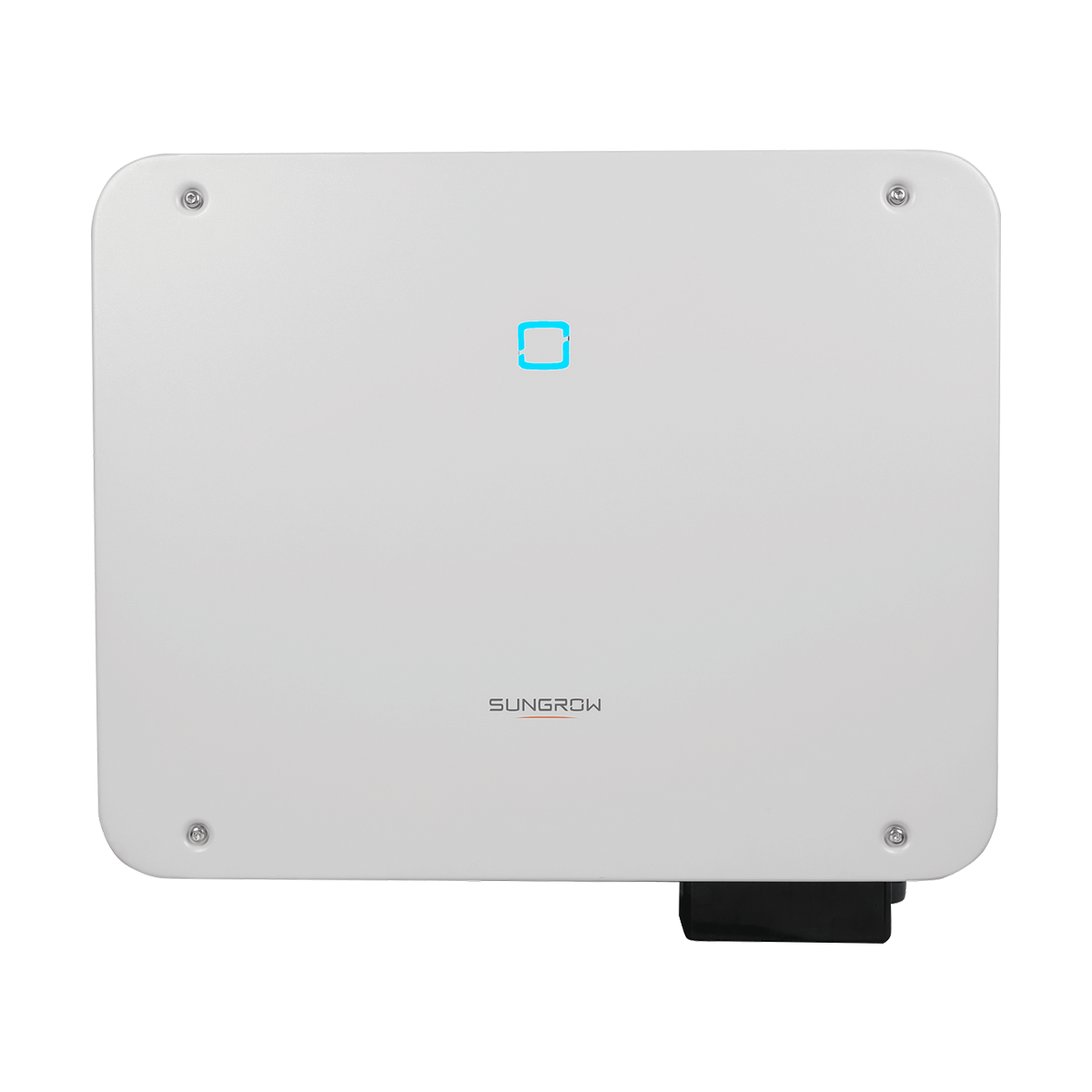

Sungrow SG50CX-P2- Type of manufacturer: SG50CX-P2
