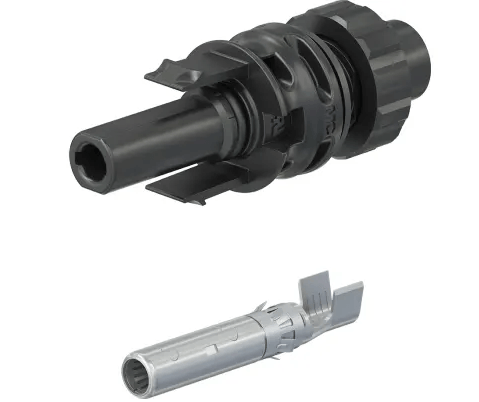

Stäubli MC4-EVO 2A/6 socket, 4–6 mm², 5.8 mm
| Type of manufacturer: | PV-ADB4-EVO 2A/6 |
|---|---|
| Manufacturer Art. No.: | 32.0346P0001 |
| Art. Nr.: | 15815 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
Prices are only visible to business customers upon successful registration.
- New
Available from 10.07.2026
Product number:
15815
Description
Stäubli Multi-Contact MC4-EVO 2A/6 female connector for system voltages up to 1,500 V DC and cables with a cross-section of 4–6 mm²
Stäubli’s MC4 and MC4-EVO 2 connectors are a cost-effective, high-quality solution for Photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/8 AWG. The connectors comply with the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.
The scope of supply includes the housing and the inner part.
Product advantages
- Meets the requirements of IEC 61984:2008
- TÜV certification in accordance with IEC 62852:2014 in combination with suitable PV cables
- UL certification to 6703:2014 in combination with suitable PV cables
- Can also be used in systems outside the photovoltaic sector
Product features Stäubli MC4-EVO 2A/6 socket 4/6 mm², 5.8 mm
- Cable cross-section (conductor): 4/6 mm²
- Width of crimp opening: 5.8 mm
- Rated voltage: 1,500 V DC
- Ambient temperature: -40 °C to +85 °C
- Protection class when plugged in: IP 65
Internationally certified in accordance with IEC, UL, JET and cTÜVus. Approved for DC 1,500 V (IEC, JET), DC 1,500 V (UL). The quality and durability of MULTILAM technology has been proven hundreds of millions of times since 2004. Suitable for all climatic conditions thanks to UV and ammonia resistance and a high IP protection rating (IP68). Field assembly or pre-assembled connector; standard crimping pliers can be used. Plug-compatible with the original MC4 connector family.
-
