Sungrow EnergyBridge EB80T
| Manufacturer Art. No.: | EB80T |
|---|---|
| Art. Nr.: | 16439 |
| Pieces per package unit: |
|
| Accessory type: | Emergency power, Installation accessories |
| Model series: | EnergyBridge |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16439
Description

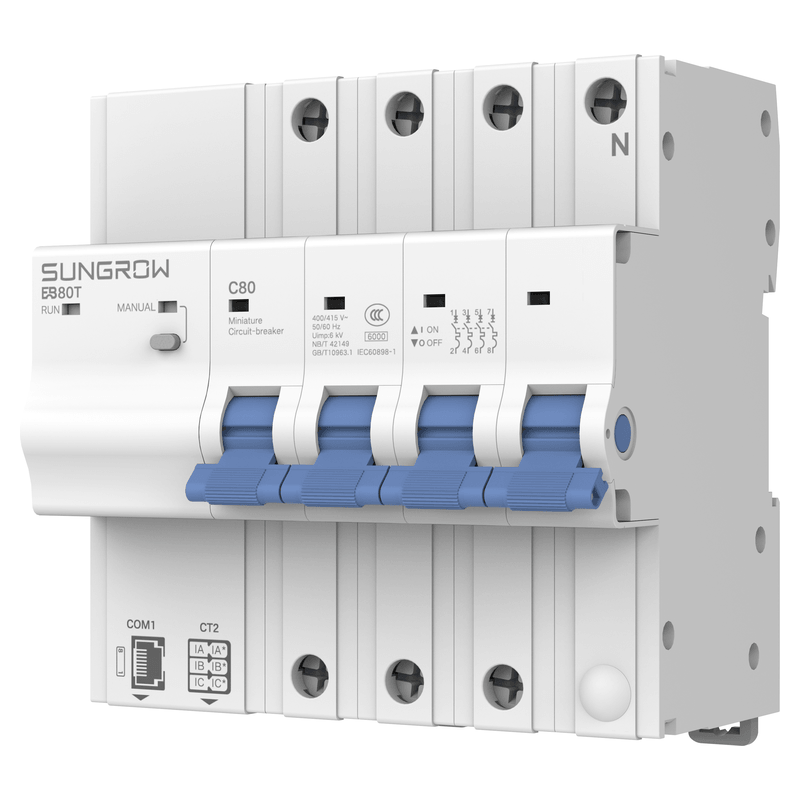

Sungrow EnergyBridge EB80T
The Sungrow EnergyBridge EB80T is the three-phase emergency power and transfer switch unit for Sungrow hybrid systems. It combines a circuit breaker, mains/back-up power transfer, bypass and energy metering in a compact DIN-rail unit. In the event of a mains power failure, the EB80T switches to backup power within a maximum of 10 ms and supplies the entire building (whole-home backup) rather than individual emergency power circuits. The unit communicates directly with the Inverter via RS485; reclosing can be carried out either manually or automatically.
Compatible with Sungrow SH5.0-6.0RS, SH8.0-10.0RS and SH5.0-25T.
Product benefits
- Whole-home backup: supplies power to the entire building in the event of a mains failure, rather than just individual emergency circuits
- Switchover time of no more than 10 ms – sensitive loads continue to operate without interruption
- Integrated 80 A circuit breaker, trip characteristic C, 6 kA short-circuit withstand capacity
- Bypass function as well as manual and automatic reclosing
- Integrated energy metering, optionally expandable with external 100 A current transformers
- Compact mounting on a 35 mm top-hat rail, connection via RJ45
Technical specifications
- Rated current: 80 A | Rated voltage: 400/415 V AC | 50/60 Hz
- Mains configuration: L1/L2/L3-N, 6-pole version, tripping characteristic C
- Switchover time for substitute current: max. 10 ms | Voltage range: 0.75–1.3 Un
- Short-circuit current: 6 kA | Insulation voltage: 500 V | Surge withstand voltage: 4 kV
- Communication: RS485 x 1, DI x 1, DO x 1 via RJ45, up to 100 m cable length
- Functions: Circuit protection, mains/stand-alone system switching, energy metering, bypass, whole-home backup
- Dimensions (W x H x D): 108 x 105 x 79 mm | Weight: 780 g
- Operating temperature: -25 to +60 °C | Relative humidity: up to 95 per cent (non-condensing) | Installation altitude: up to 2,000 m
- Temperature derating: 80 A at 30 °C, 74 A at 45 °C, 68 A at 60 °C
- Protection rating: IP20 | Accuracy class: 1 | EMC: Class B | Mounting: 35 mm top-hat rail
- Certificates: CE, RCM, IEC 60898-1, IEC 61326-1, IEC 61000-6-2/3
- Compatible inverters: SH5.0-6.0RS, SH8.0-10.0RS, SH5.0-25T
Contents
- 1x Sungrow EnergyBridge EB80T
- External current transformers (ZTY6.176.532, 100 A, split core, 6 m cable) are optional and not included in the scope of delivery
