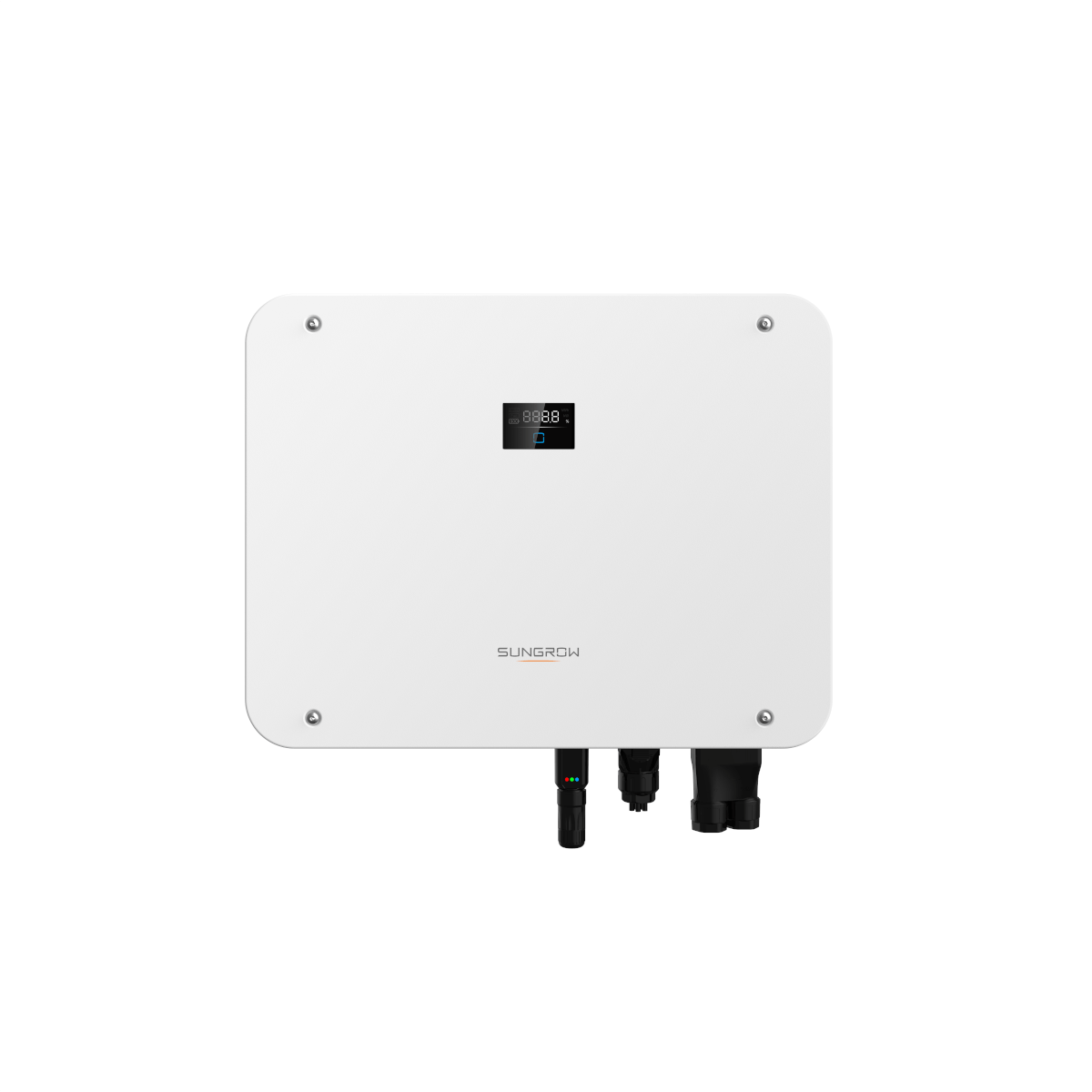

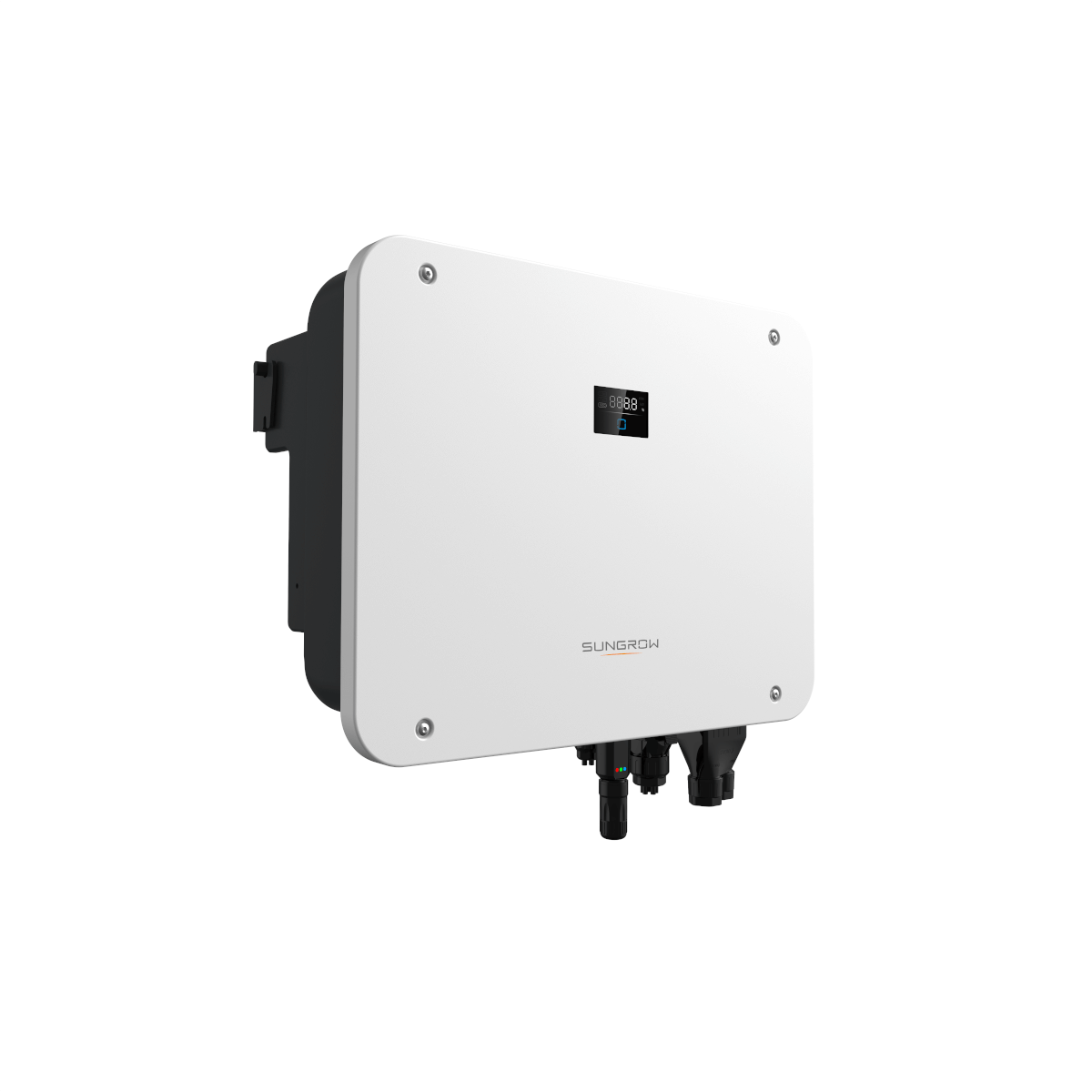

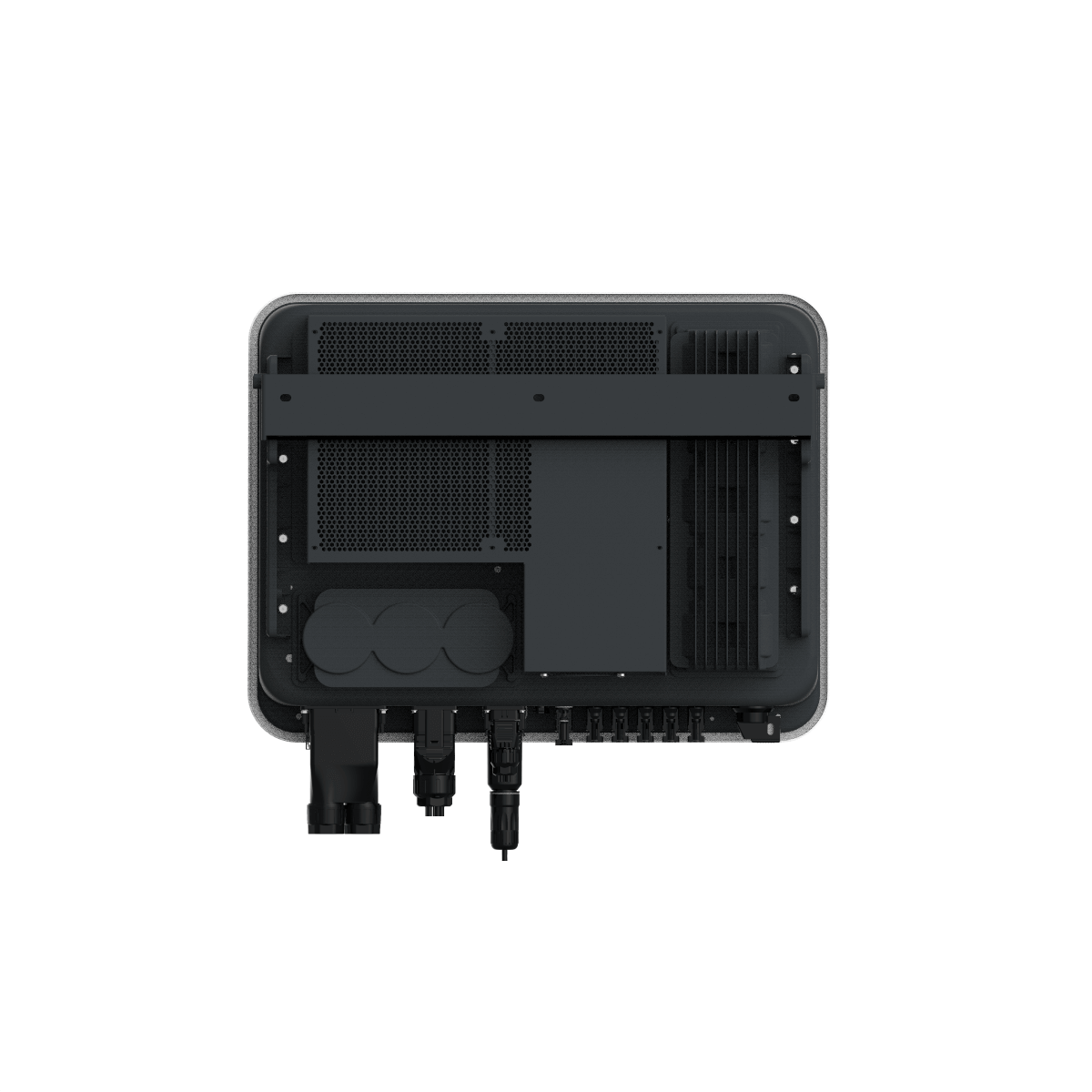

Sungrow & Sungrow Hybrid SH10T - V11
| Type of manufacturer: | SH10T |
|---|---|
| Manufacturer Art. No.: | ASH00142 |
| Art. Nr.: | 15493 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| MPP-Tracker: | 3 |
| AC power: | 10 kW |
| Warranty: | 10 years |
| Communication: | RS485, WiFi, Ethernet, CAN |
| MPP voltage range: | 150 - 950 Volt |
Prices are only visible to business customers upon successful registration.
- New
Available from stock
Product number:
15493
-
-
{ "id": "b49dfc32fd7b5508bc9ad9b8f88e72f1", "item_brand": "", "item_name": "Sungrow SBH150 battery", "item_id": "11849", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b49dfc32fd7b5508bc9ad9b8f88e72f1" } } -
{ "id": "1943520693aa585f899ae311134bb12b", "item_brand": "", "item_name": "Sungrow SBH200 battery", "item_id": "11850", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "1943520693aa585f899ae311134bb12b" } } -
{ "id": "6ad3c3d0c9e75d8bac32d3e5b93a8b2d", "item_brand": "", "item_name": "Sungrow SBH300 battery", "item_id": "11853", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6ad3c3d0c9e75d8bac32d3e5b93a8b2d" } } -
{ "id": "143a0ecafef354ddaf14fd2b280cc7ec", "item_brand": "", "item_name": "Sungrow SBH400 battery", "item_id": "11855", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "143a0ecafef354ddaf14fd2b280cc7ec" } }
-
Description
Sungrow SH10T High-Voltage Hybrid Inverter with Emergency Power Output
These new three-phase hybrid inverters feature a three-phase backup power output with three-phase current (capable of handling unbalanced loads). Combined with the high-voltage battery connection and 3 MPP trackers, the Sungrow inverter leaves nothing to be desired. This device is configured via iSolarCloud Assistant and sends its data via the built-in WiFi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. External connections, a generous connection area and an integrated spirit level enable quick installation.
The Inverter cannot be installed with Sungrow optimisers. In future, you will be able to connect the 22 kW Charger to the SHT via the iHomeManager (currently no Wallbox can be connected). You can only combine the Inverter with Sungrow SBR and SBH storage systems.
Product advantages
- Input voltage range of 150–950 V
- High efficiency of up to 98.1%
- Natural convection
- 2 integrated AC + DC surge protectors
- External connections, no need to open the Inverter
- Integrated spirit level
- Potential-free contact (SG-Ready contact) available (for controlling e.g. a Heat pump)
- Direct connection of a radio remote control receiver possible
- Noise emission 35 dB(A)
Applications:
- Operation without a battery as a pure Inverter
- DC operation with PV and battery
- AC operation without PV and with battery
Product features Sungrow Hybrid HV SH10T:
- Grid connection: 3-phase
- AC power: 10.0 kVA – emergency power via separate output
- Reverse polarity protection
- MPP trackers: 3
- MPPT 1: 2 MC4 inputs; MPPT 2: 2 MC4 inputs; MPPT 3: 1 MC4 input
- Maximum input current: 80A (32A / 32A / 16A)
- Maximum short-circuit current Isc: 100A (40A / 40A / 20A)
- Battery connection
- Interfaces: Ethernet
- AC connection cable cross-section: 6–10 mm² possible
- Cable cross-section for DC connection: 4–6 mm² possible
- Dimensions: 620 x 480 x 245 mm (H x W x D)
- Weight: 38 kg
- Protection class: IP 65
Scope of delivery
- Inverter
- 3-phase CHINT DTSU666-20 smart meter with 1x CT 100A/0.333V current transformer set included
- WiNet-S2 module Wi-Fi adapter
- Wall bracket
- Expansion plug set
- M4 screws and washers
- AC/backup connector set
- Cable end terminal
- PV connector
- Crimp contact
- SUNCLIX connector set
- LAN connector
- COM connector
- RS485 cable
- OT connector
- Documents
Battery compatibility
- Sungrow SBR096 – SBR256 battery
- Sungrow SBH100 - SBH400 Battery
- No other storage systems compatible
Memodo energy storage approval list
If you’re looking for emergency power, you’ve come to the right place! Compact dimensions and low weight with full power – quicker to install than any other.
You can find informative, free online training courses and other useful tools from Sungrow here.
-
