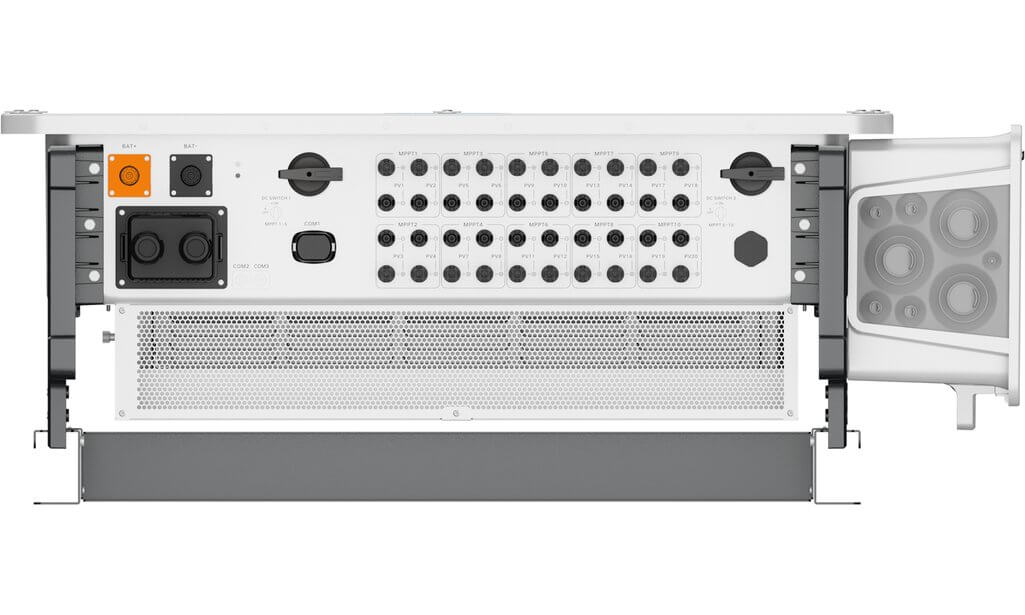

Sungrow & Sungrow SH125CX - 125 kW hybrid inverter
| Type of manufacturer: | SH125CX |
|---|---|
| Manufacturer Art. No.: | A0SH1033 |
| Art. Nr.: | 15669 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Hybrid inverter |
| MPP-Tracker: | 10 |
| AC power: | 125 kW |
| Warranty: | 5 years |
| Communication: | CAN |
| MPP voltage range: | 180 - 1000 Volt |
Prices are only visible to business customers upon successful registration.
- New
On request
Product number:
15669
-
-
{ "id": "617c70739dff5589bfd7113411acf495", "item_brand": "", "item_name": "PowerKeeper STC12.5 - 12.5 kWh battery module", "item_id": "15161", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "617c70739dff5589bfd7113411acf495" } } -
{ "id": "75424f9aef8255ef85f07c30dfbb1014", "item_brand": "", "item_name": "Sungrow & Sungrow PowerKeeper Accessory (Master)", "item_id": "15667", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "75424f9aef8255ef85f07c30dfbb1014" } } -
{ "id": "406f1c02617a556f9044c1f022a296fc", "item_brand": "", "item_name": "Sungrow & Sungrow PowerKeeper Accessory (Slave)", "item_id": "15668", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "406f1c02617a556f9044c1f022a296fc" } }
-
Description
Sungrow SH125CX – 125 kW hybrid inverter
The Sungrow SH125CX is a high-performance 125 kW hybrid Inverter for commercial and industrial applications and has been specially developed for the PowerKeeper energy storage system. The Inverter combines PV generation, battery storage and intelligent load management in a centralised solution.
With 10 MPP trackers and 40 A input current per MPPT, the SH125CX is ideally suited to modern high-performance modules. PV yield is maximised through up to 200% PV oversizing.
Particularly noteworthy is the integrated backup function with automatic switchover within ≤ 10 ms. This ensures that critical loads remain supplied without interruption, even in the event of a grid failure. An external ATS cabinet is not required.
Product benefits
- Up to 200% PV oversizing
- 10 MPPTs, each with 40 A input current
- Integrated backup function
- DC-coupled storage solution
- Supports off-grid and hybrid operation
- Extremely fast switching time ≤ 10 ms
Product features
- AC power: 125 kW
- MPP trackers: 10
- String connections per MPPT: 2
- Max. input current: 40 A per MPPT
- Max. charge/discharge current: 200 A
- Backup switchover time: ≤ 10 ms
- Noise level: approx. 65 dB(A)
- Protection class: IP66
- Communication: CAN
- Dimensions (L x W x H): 360×1095×795 mm
- Weight: 128 kg
