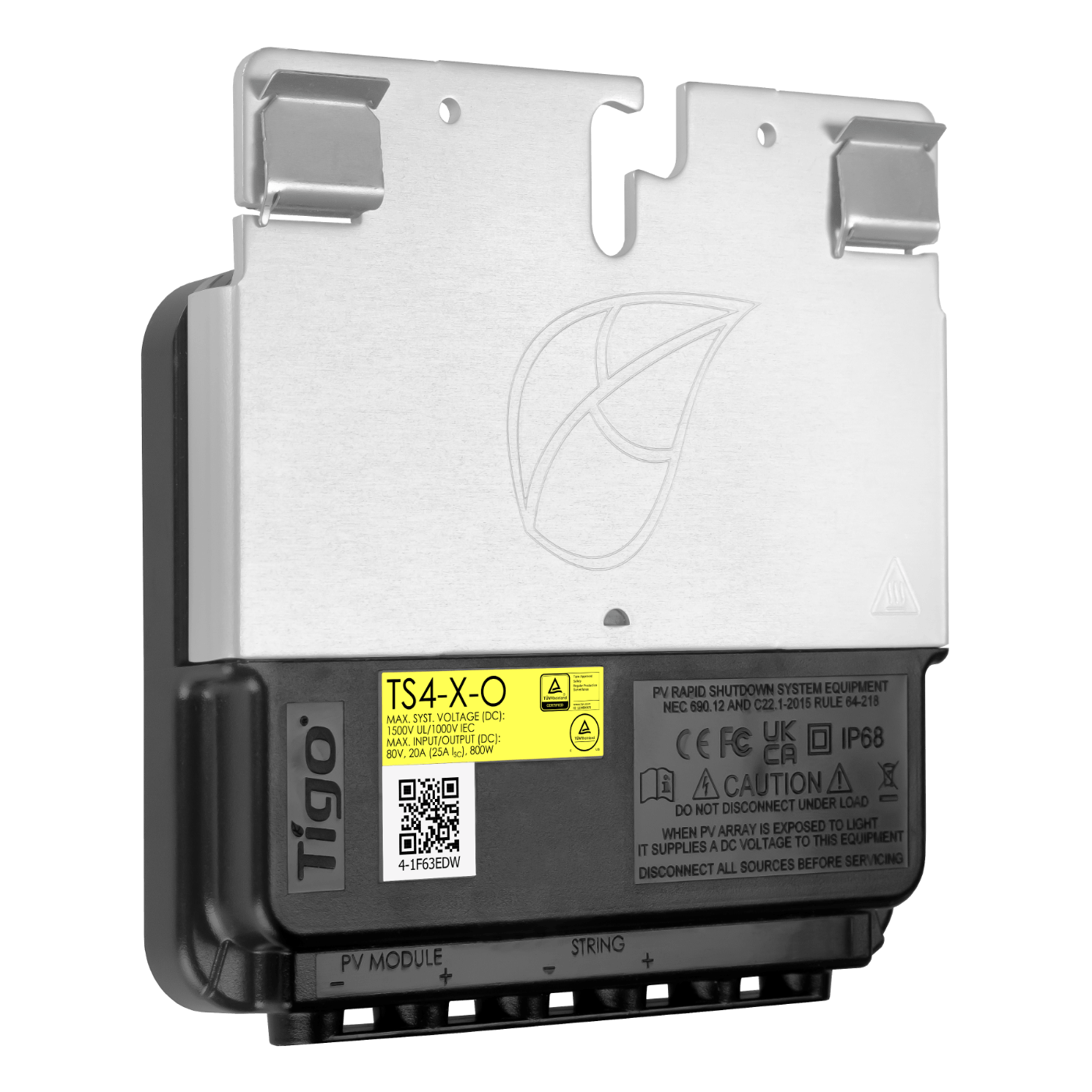

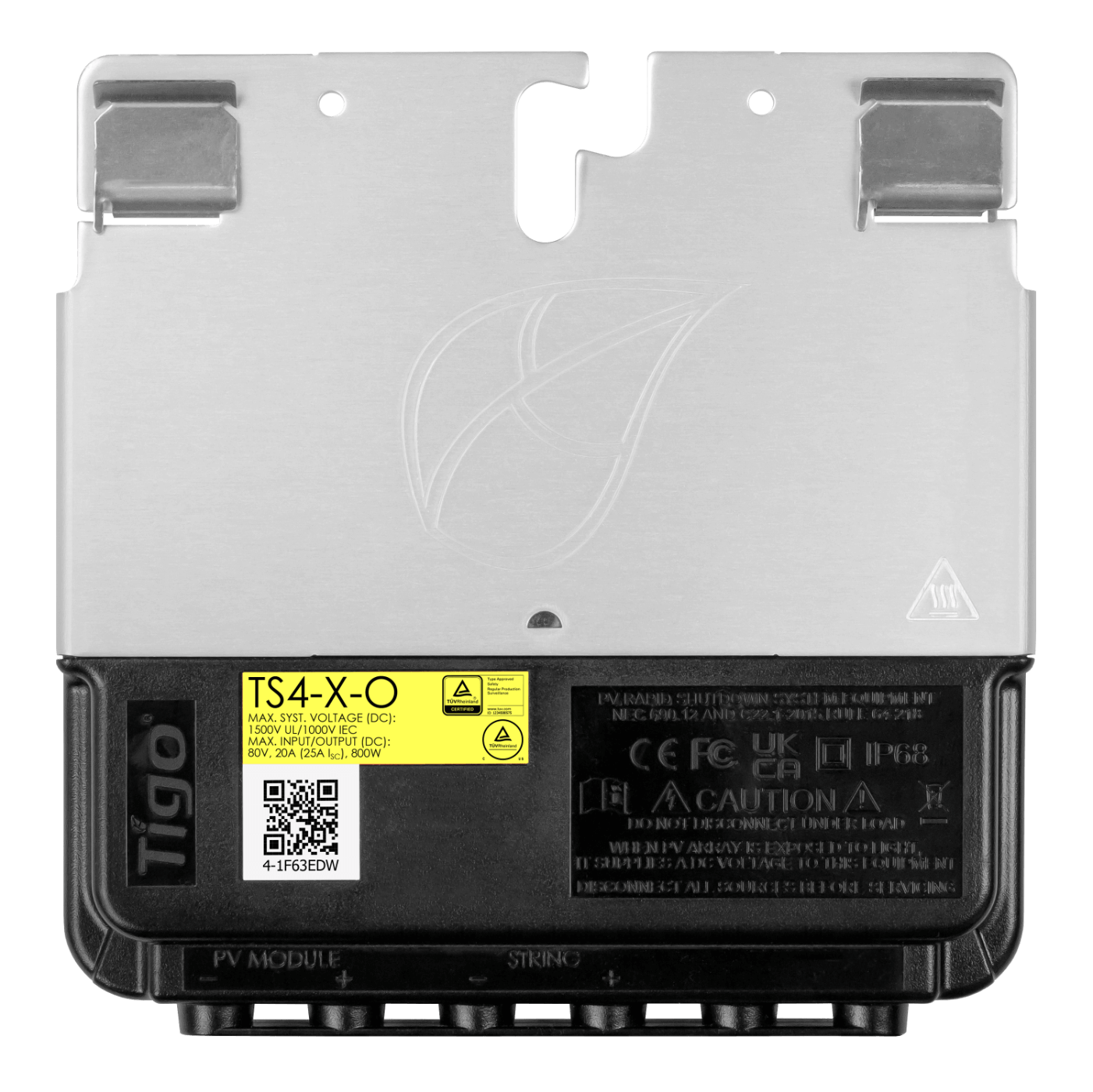

Tigo TS4-X-O up to 800 W modules (MC4)
| Manufacturer Art. No.: | 501-340612-2501 / 501-340612-2502 |
|---|---|
| Art. Nr.: | 15322 |
| Pieces per package unit: |
|
| Inverter type: | Optimizer |
| Warranty: | 25 years |
| Communication: | WiFi, PLC, kabel 0,62 / 1,20 m |
| MPP voltage range: | 20 - 80 Volt |
Prices are only visible to business customers upon successful registration.
- New
Available from stock
Product number:
15322
Description
Tigo TS4-X-O DC optimiser
The Tigo TS4-X-O is an intelligent module power optimiser (MLPE) for modern high-performance solar panels up to 800 W. Using patented optimisation technology, it maximises energy yield in the event of shading or mismatch, monitors each panel individually and enables certified rapid shutdown – for greater safety, transparency and return on investment for every system.
Product benefits:
- Maximum energy yield through intelligent optimisation at module level
- Module-level monitoring – full insight into production and performance data
- Fast shutdown in accordance with UL 1741 – certified for global PVRSS requirements
- For modules up to 800 W and 25 A ISC – compatible with the latest high-performance modules
- Universally applicable – compatible with over 50 inverter brands
- Easy installation: clip mounting on the module frame or Mounting system
- IP68 protection and -40 to +85 °C operating temperature for the harshest conditions
- 25-year warranty
Technical specifications:
- Maximum output power: 800 W
- Max. current (IMP / ISC): 20 A / 25 A
- Input voltage range (VMP): 12 – 80 V
- Maximum system voltage: 1000 V / 1500 V
- Maximum efficiency: 99.6%
- Fast shutdown: < 30 seconds
- Communication: Wireless (TAP/CCA) and/or PLC
- Connectors: MC4 / EVO2
- Cable length input / output: 0.6 m or 1.2 m / 1.2 m or 2 m
- Protection class: IP68
- Operating temperature: -40 to +85 °C
- Dimensions (H/W/D): 139.7 × 138.4 × 22.9 mm
- Weight: 520 g
- Certifications: FCC, CE, IEC 62109, UL 1741
- Warranty: 25 years
