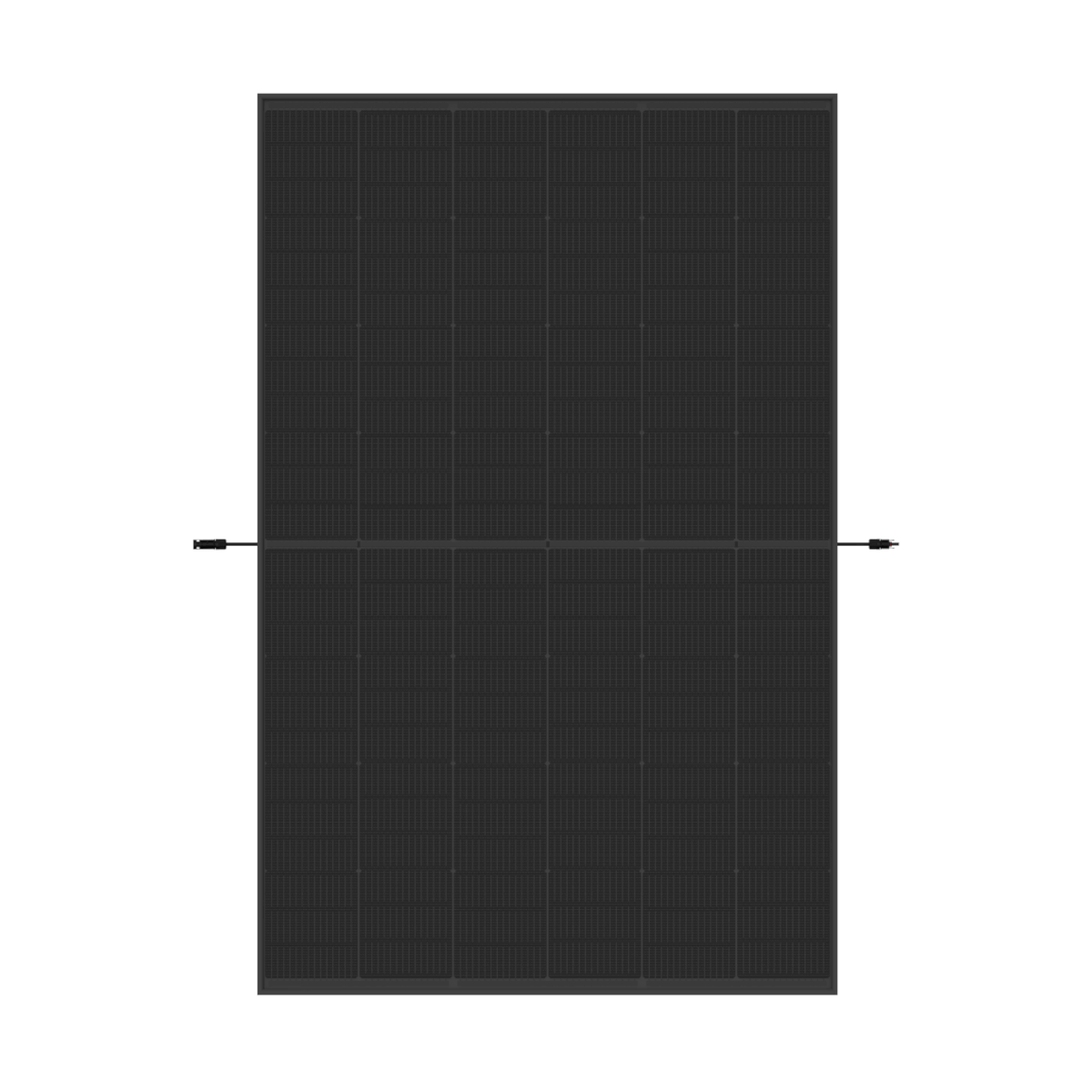

Trina 450 TSM-NEG9R.25 Vertex S+ double glass, Full Black
| Manufacturer Art. No.: | TSM-450-NEG9R.25 |
|---|---|
| Art. Nr.: | 13153 |
| Pieces per package unit: |
|
| Backsheet: | Black |
| Dimensions: | 1762 × 1134 × 30 mm |
| Frame color: | Black |
| Power: | 450 Watt |
| Solar panel type: | Glass-glass solar panels |
| Technology: | TOPCon |
| Warranty: | 25/30 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from 03.11.2025
Product number:
13153
Description
Vertex S+ 450 Watt, N-Type TOPCon, Full Black
Trina is launching its new Vertex S+ PV module series. The Vertex S+ series is the first Trina product to benefit from a 25-year product warranty upon launch. The new high-performance module achieves an output of up to 450W while requiring little space. It features integrated multi-busbar technology, which improves light capture, reduces series resistance, and improves current collection. This double-glass module has a 30-year performance warranty. The Vertex S+ series is flexible in its application and is designed for both residential and commercial use.
Product advantages
- Excellent resistance to fire and harsh environmental conditions
- N-type technology with 1% degradation in the first year and 0.4% in years 2-30
- Multi-busbar technology
- 30 mm frame height, very stable
- System design and planning exactly as before
- 25-year product warranty on workmanship
- 30-year performance warranty
Hail resistance class 3
Product features Trina 450 TSM-NEG9R.25 Vertex S+ double glass
- 450 Wp
- 144 monocrystalline cells
- Efficiency: 22.5%
- Black module frame
- Black backsheet (white reverse side)
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 21.0 kg
- Connector: MC4 EVO2/TS4
- Cable length on module: 1100 mm (portrait format)
- Snow load up to 5,400 Pa
- Wind load up to 4,000 Pa
- Power temperature coefficient: -0.29%/°C
-
