"Preliminary" data sheet!

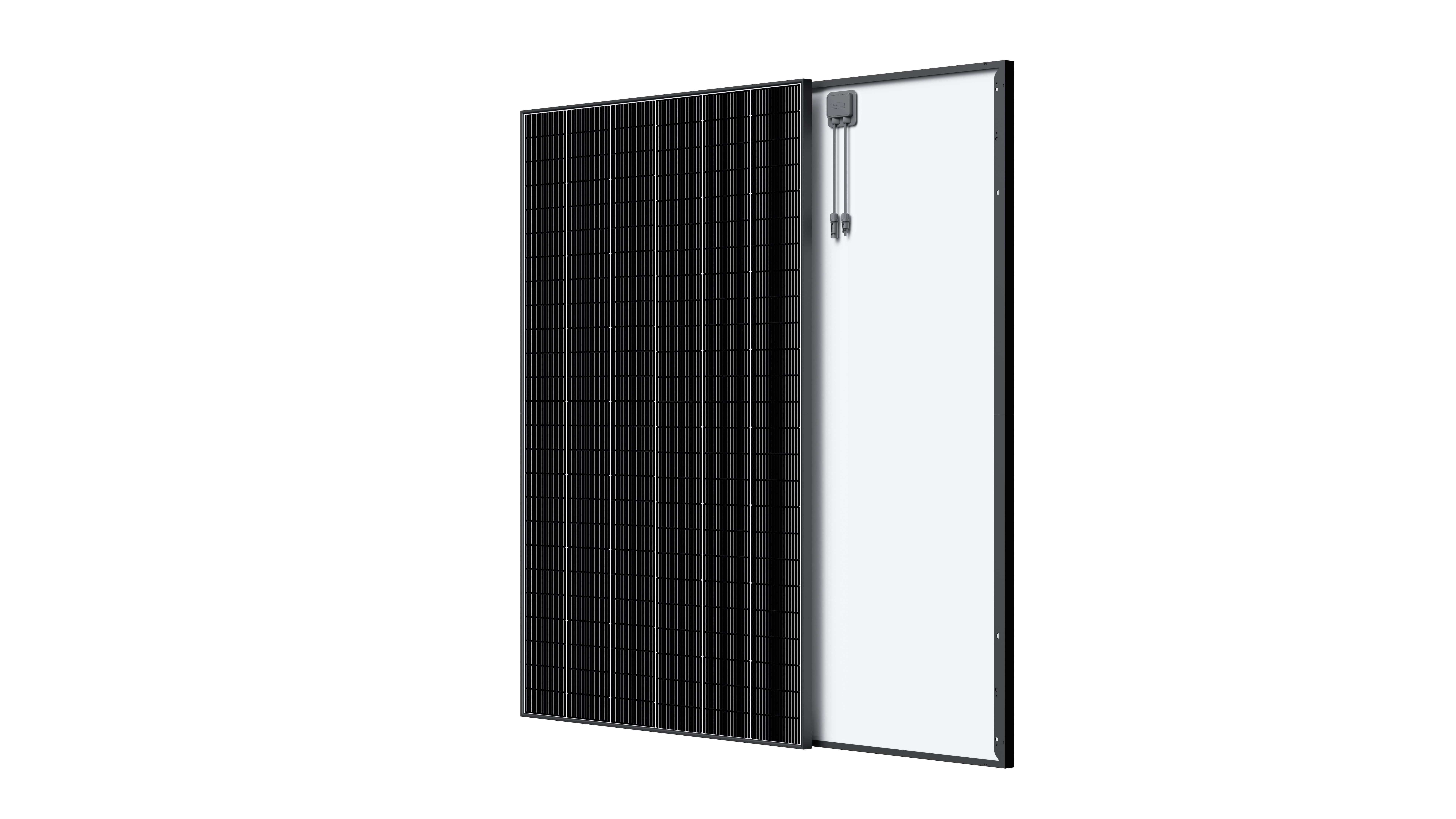

Trina Vertex S+ G3 480W – bifacial double-glass module with i-TOPCon Ultra for C&I and residential applications

With the Trina Vertex S+ G3 in its 60-cell version, Trina Solar is launching the third generation of its popular module series. At its heart is the new N-Type i-TOPCon Ultra cell technology, which delivers greater power and efficiency whilst maintaining the same module size. The result: 480 Wp with 24.0% efficiency in the standard residential format of 1762 × 1134 mm.

The low-voltage/high-current architecture allows for maximum string lengths, thereby reducing BOS costs – a strong selling point for commercial and ground-mounted projects. At the same time, the module stands out with its seamless full-black appearance, making it the right choice even for demanding residential applications. Trina Solar rounds off the package with a 25-year product warranty and a 30-year linear power warranty.

Product benefits

• N-type i-TOPCon Ultra cell technology – the latest generation for higher yields

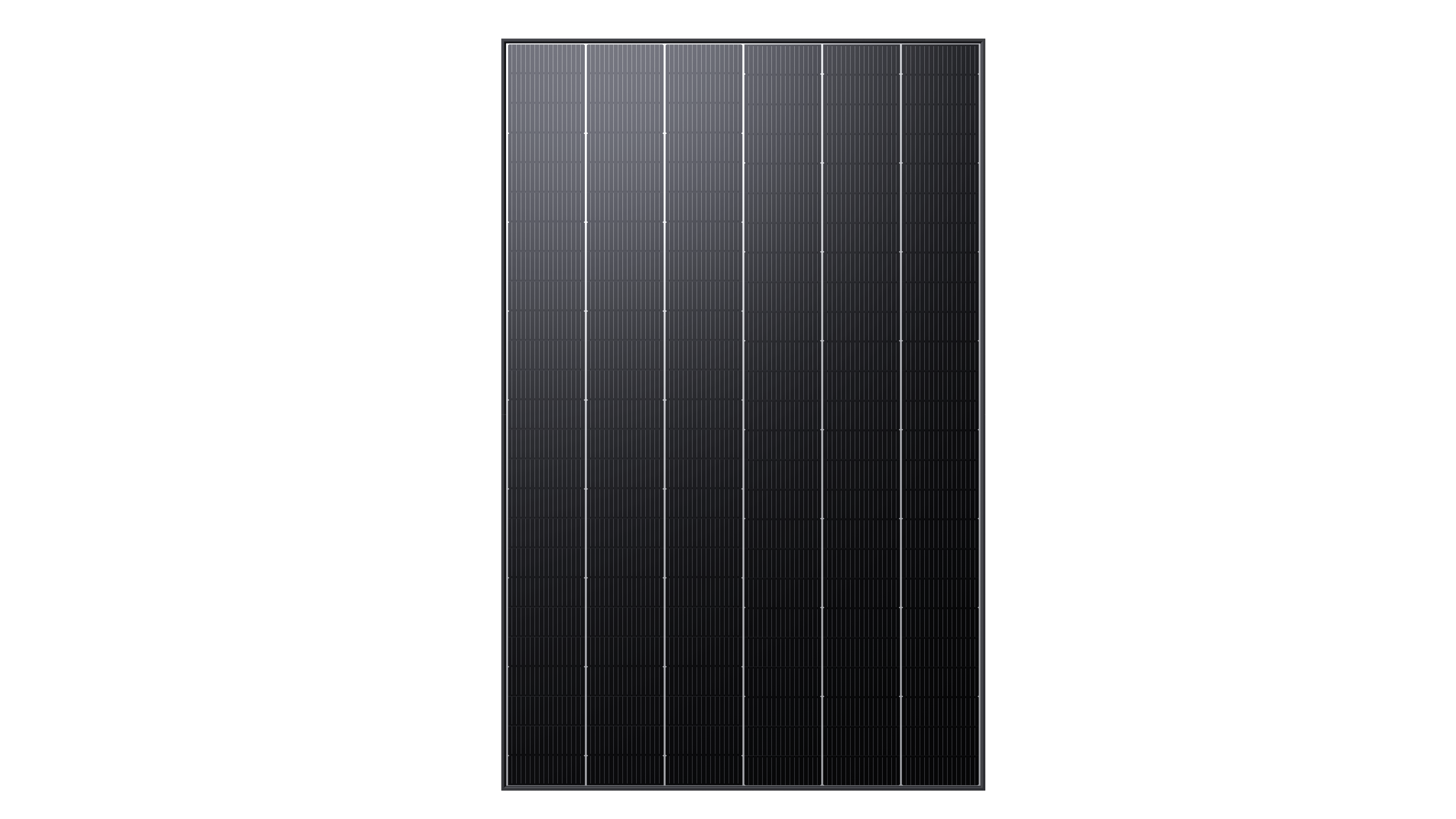

• Premium full-black appearance with seamless high-density cell interconnection
• 150 N-type i-TOPCon monocrystalline cells
• Bifacial double-glass 1.6 + 1.6 mm with anti-reflective coating
• Module efficiency 24.0% at 480 Wp
• Low-voltage/high-current architecture – maximum string lengths, reduced BOS costs
• Pmax temperature coefficient -0.26 %/°C – excellent performance at high temperatures
• 0/+5 W positive power tolerance
• Mechanical load 5,400 Pa front / 4,000 Pa rear
• Very good low-light performance
• Black anodised aluminium frame
• Versatile for residential and C&I applications
• 25-year product warranty
• 30-year linear power warranty (88.85% in year 30)
• 1 per cent degradation in the first year, thereafter only 0.35 per cent per year

Product specifications: Trina Vertex S+ G3 TSM-NEG9RP.28Z 480W

• Power: 480 watts
• 1500 V DC (IEC) certified
• Black anodised aluminium frame
• Front glass: 1.6 mm with AR coating, semi-tempered
• Rear glass: 1.6 mm semi-tempered
• Dimensions: 1,762 × 1,134 × 30 mm (H x W x D)
• Weight: 21.1 kg
• Cable length: 1,100 / 1,100 mm (customisable)
• Cable cross-section: 6.0 mm²
• Connector type: MC4 EVO2
• Junction box: IP68
• Power temperature coefficient: -0.26 %/°C
• Voltage (Vmp): 32.00 V
• Current (Imp): 15.00 A
• Short-circuit current (Isc): 16.05 A
• Open-circuit voltage (Voc): 37.70 V
• Maximum string fuse current: 30 A
• Operating temperature: -40 °C to +70 °C
• Nominal operating temperature of the cell: 43 °C (± 2 °C)
• Packaging: 36 units per pallet / 936 units per 40' container

Module manufacturer Trina Solar

Trina Solar has been one of the world’s leading manufacturers of photovoltaic modules for many years and is a pioneer in the field of N-type cell technology. With a strong focus on research and development, Trina Solar continues to set new standards – most recently with the i-TOPCon Ultra platform. As a Tier 1 manufacturer according to BloombergNEF and with a broad presence in Europe, Trina Solar stands for high quality, bankability and long-term market availability.
