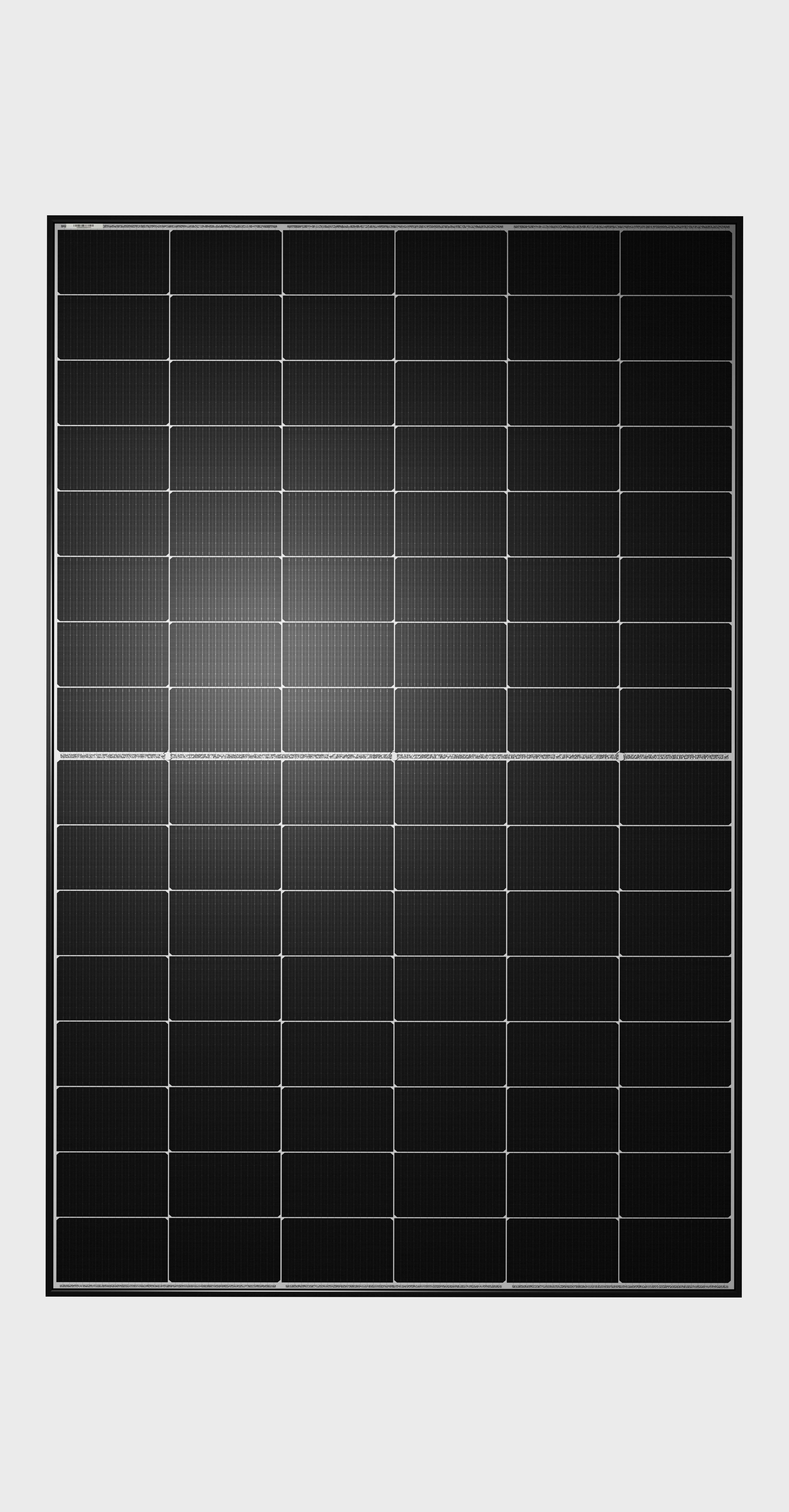

TW Solar double glass TWMNH-48HW 465W
Image may differ from the product.
| Manufacturer Art. No.: | TWMNH-48HW 465W |
|---|---|
| Art. Nr.: | 13904 |
| Pieces per package unit: |
|
| Backsheet: | White |
| Dimensions: | 1762 x 1134 x 30 |
| Frame color: | Black |
| Power: | 465 Watt |
| Solar panel type: | Glass-glass solar panels, High performance solar panels |
| Technology: | TOPCon |
| Warranty: | 25/30 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from 09.10.2025
Product number:
13904
Description
TW Solar (Tongwei) TWMNH-48HW 465W, Black Frame, Glass

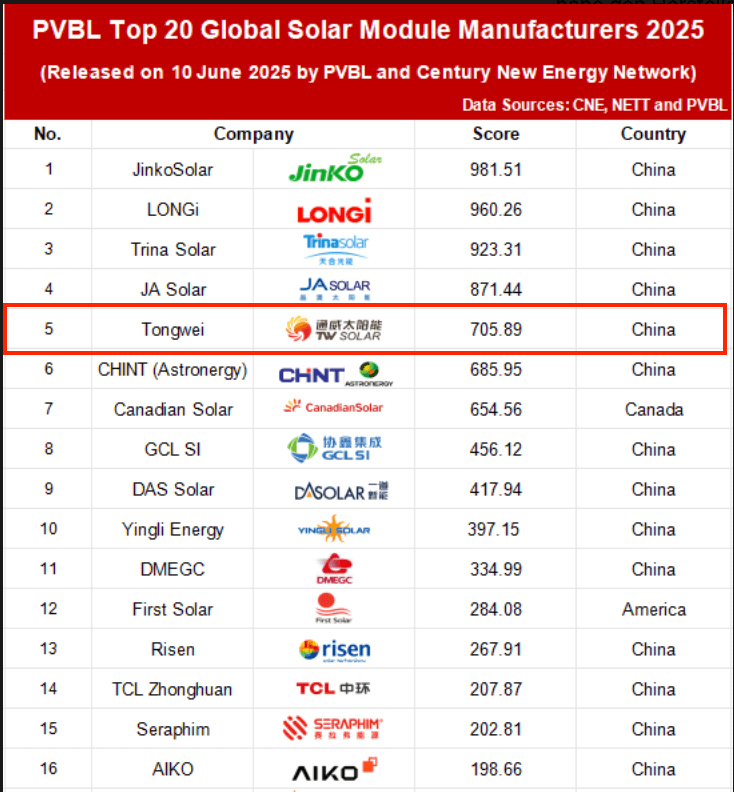

TW Solar is one of the market giants in terms of solar cell production, with a total of 200 GW of cells delivered by 2023. With their many years of experience, they are now also bringing modules to the European market that are second to none. With their N-type TOPCon cells, TW Solar achieves outputs of up to 465 Wp for glass/glass modules with a power temperature coefficient of -0.28%/°C. These modules are also resistant to salt and ammonia.
Product advantages
- IEC certified
- State-of-the-art N-type TOPCon
- Module with electrical properties similar to those of well-known half-cell modules
- High-density cell connection technology for higher module efficiency
- Super multi-busbar technology
- 30 mm frame height, very stable
- 25-year product warranty on workmanship
- 30-year performance warranty
Product features TW Solar (Tongwei) TWMNH 48HW465W, Black Frame
- 465 Wp
- 108 monocrystalline half-cut cells
- Efficiency: 23.0%
- 6000 Pa snow load
- 4000 Pa wind load
- Black module frame

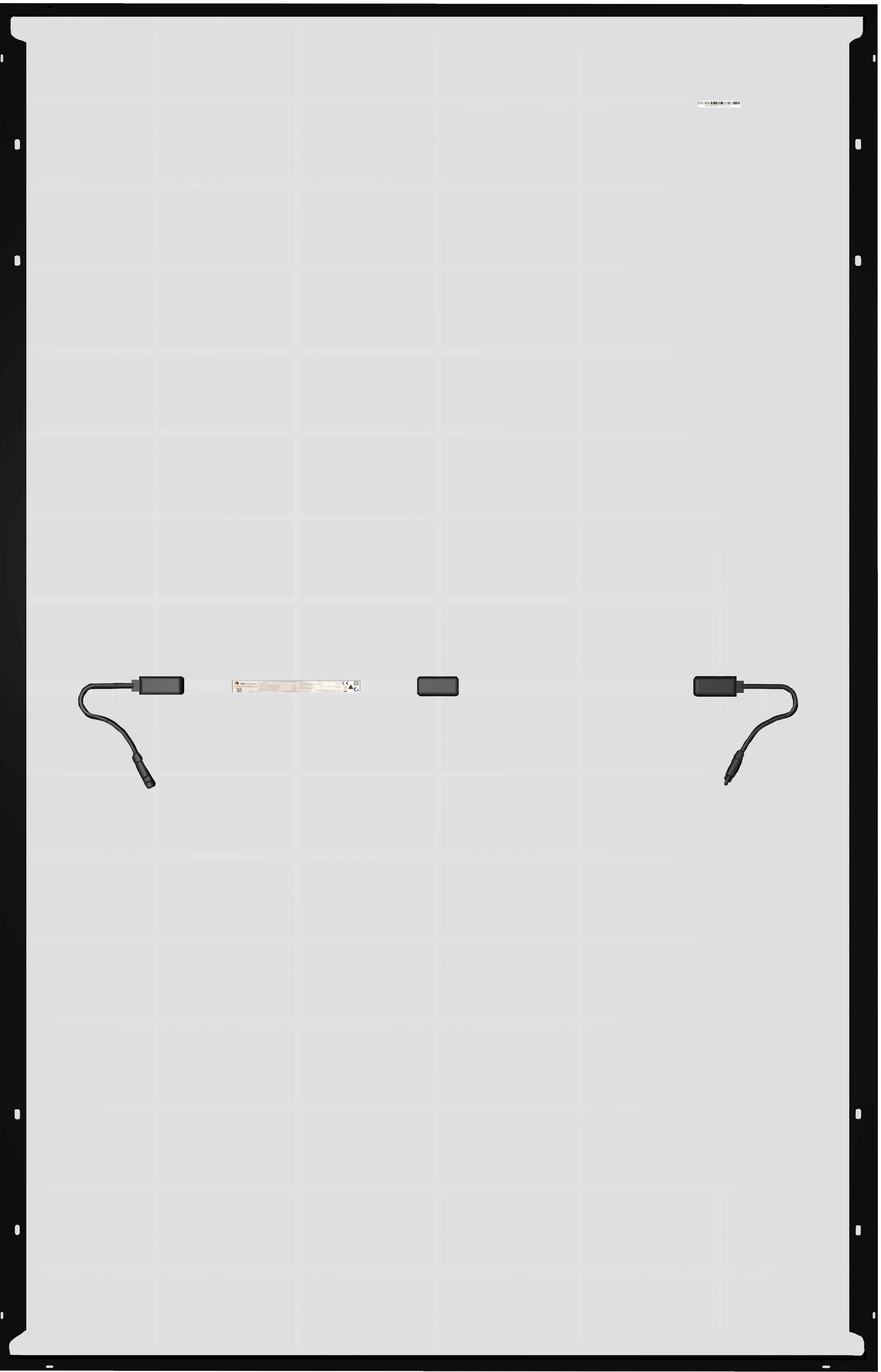

- White backsheet
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 23.7 kg
- Connector: MC4 EVO2
- Cable length on module: 1200 mm (landscape)
- Snow load up to 5,400 Pa
- Wind load up to 2,400 Pa
- Power temperature coefficient: -0.28%/°C
