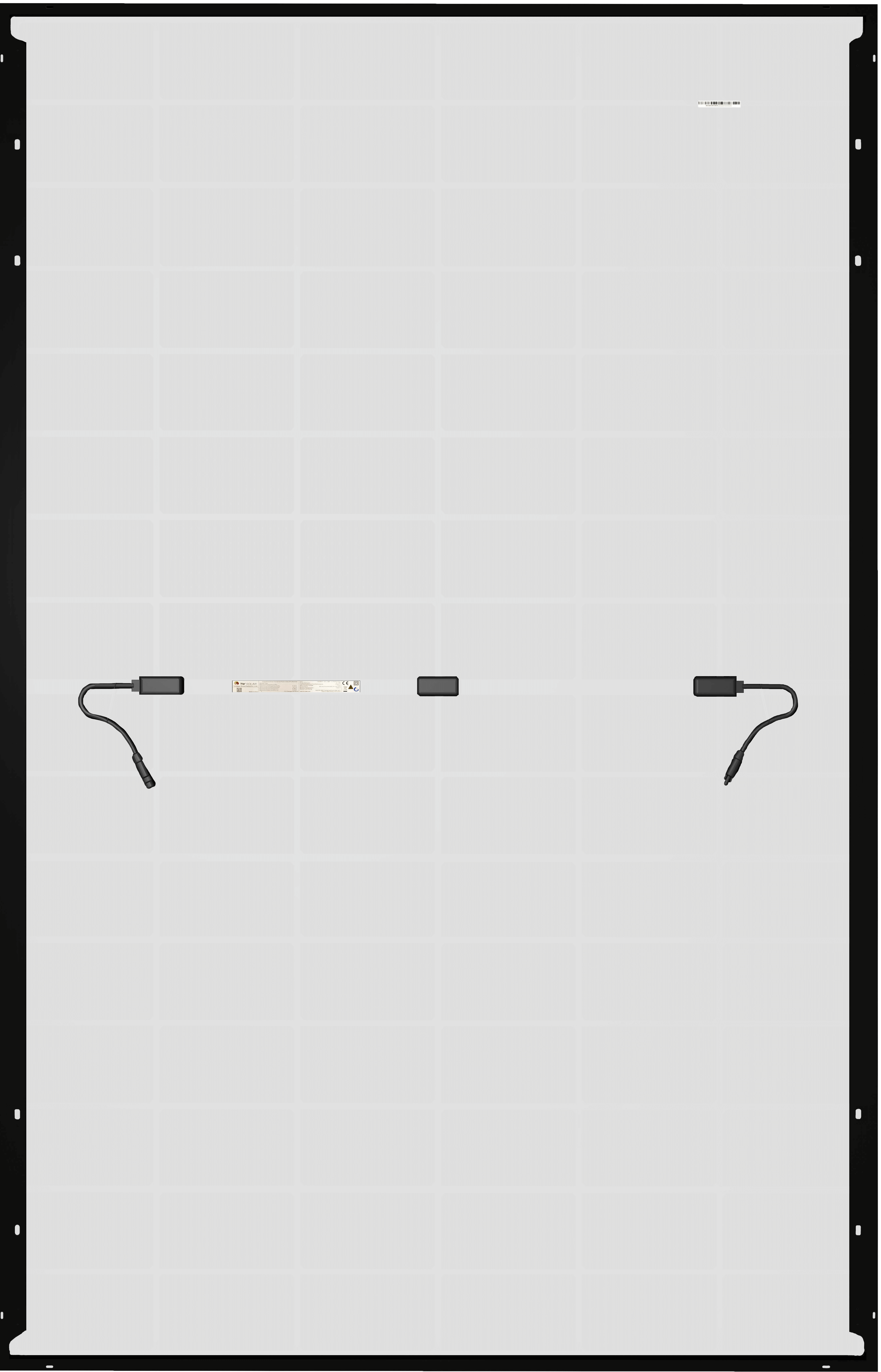

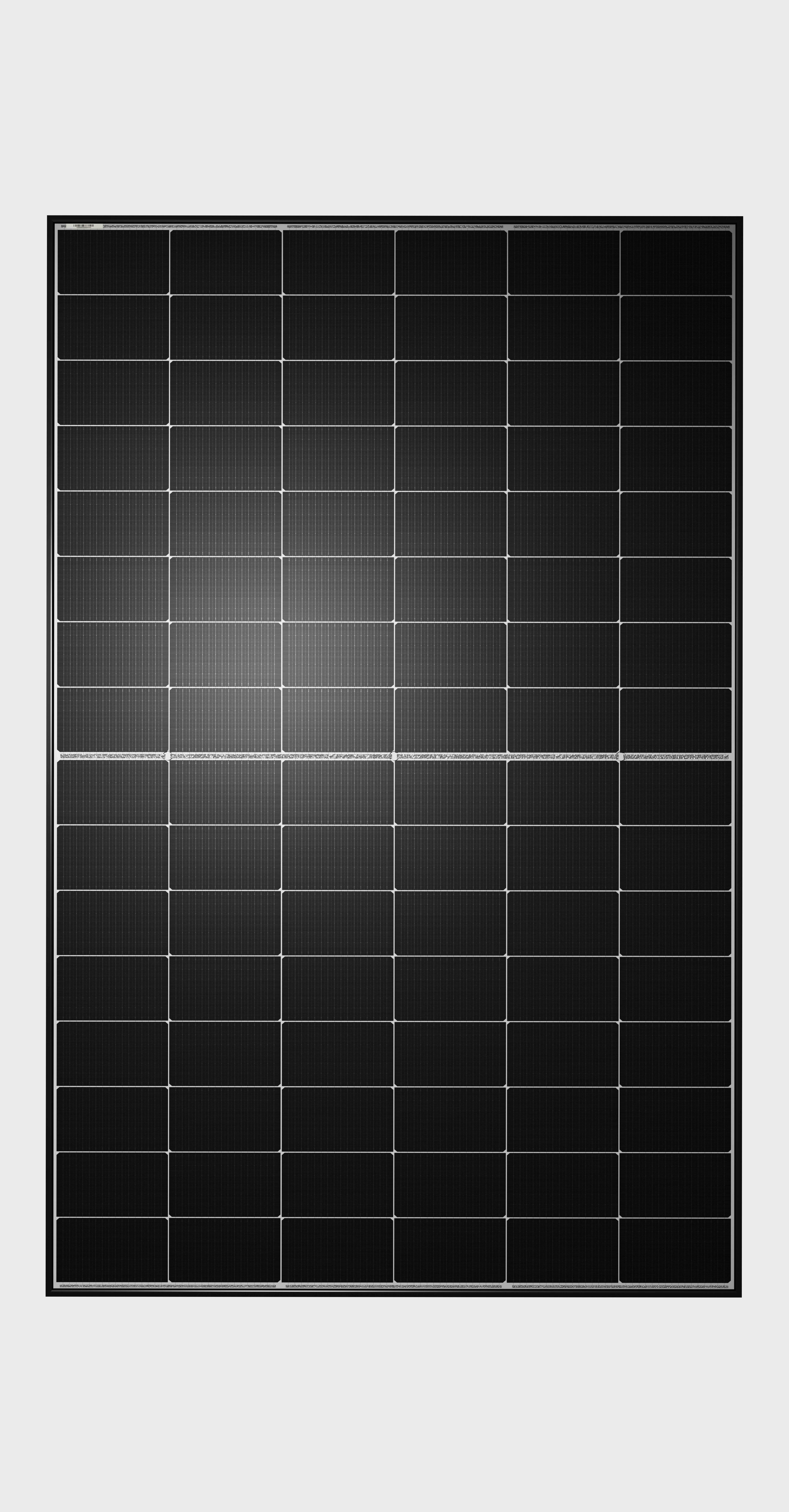

TW Solar double glazing TWMNH-48HW 470W
Image may differ from the product.
| Manufacturer Art. No.: | TWMNH-48HW 470W |
|---|---|
| Art. Nr.: | 14360 |
| Pieces per package unit: |
|
| Power: | 470 Watt |
| Efficiency: | 23.5 % |
| Construction type: | Double-Glass |
| Warranty: | 25/30 years |
| Dimensions: | 1762 x 1134 x 30 |
| Backsheet: | White |
| Frame color: | Black |
| Technology: | TOPCon |
| Connector: | MC4 |
| Snow load: | 6000 Pa |
| Wind load: | 4000 Pa |
| Solar panel type: | Glass-glass solar panels, High performance solar panels, TOPCon modules |
Prices are only visible to business customers upon successful registration.
- Top-Deal
Available from stock
Product number:
14360
Description
TW Solar (Tongwei) TWMNH-48HW 470W, black frame, glass/glass
TW Solar is one of the market giants in terms of cell production, with a total of 200 GW of cells delivered by 2023. Drawing on their many years of experience, they are now also bringing modules to the European market that are second to none. With their N-type TOPCon cells, TW Solar achieves outputs of up to 470 Wp in glass/glass modules with a power temperature coefficient of -0.28 %/°C. These modules are also resistant to salt and ammonia.
Product advantages
- IEC Certified
- State-of-the-art N-type TOPCon
- Module with electrical properties comparable to well-known half-cell modules
- High-density cell connection technology for higher module efficiency
- Super Multi-Busbar technology
- 30 mm frame height, very sturdy
- 25-year product warranty on workmanship
- 30-year performance warranty
- 6000 Pa snow load
- 4000 Pa wind load
Product features TW Solar (Tongwei) TWMNH 48HW470W, Black Frame
- 470 Wp
- 108 monocrystalline half-cut cells
- Efficiency: 23.5%
- 6000 Pa snow load
- 4000 Pa wind load
- Black module frame
- White backsheet
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 23.7 kg
- Connector: MC4 EVO2
- Cable length at module: 1200 mm (landscape)
- Power temperature coefficient: -0.28%/°C
