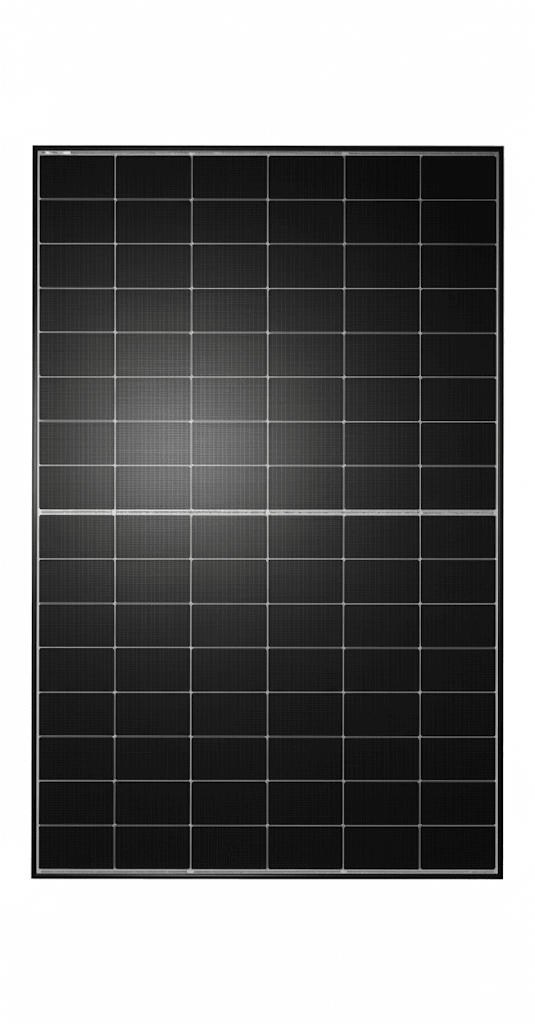

TW Solar double glazing TWMNH-48HW 470W
Container
Image may differ from the product.
| Manufacturer Art. No.: | TWMNH-48HW 470W |
|---|---|
| Art. Nr.: | 14386 |
| Pieces per package unit: |
|
| Power: | 470 Watt |
| Efficiency: | 23.5 % |
| Construction type: | Double-Glass |
| Warranty: | 25/30 years |
| Dimensions: | 1762 x 1134 x 30 |
| Backsheet: | White |
| Frame color: | Black |
| Technology: | TOPCon |
| Connector: | MC4 |
| Snow load: | 6000 Pa |
| Wind load: | 4000 Pa |
| Solar panel type: | Glass-glass solar panels, High performance solar panels |
Prices are only visible to business customers upon successful registration.
- Top-Deal
Available from stock
Product number:
14386
Description
TW Solar (Tongwei) TWMNH-48HW 470W, black frame, glass/glass
TW Solar is one of the market giants in terms of cell production, with a total of 200 GW of cells delivered by 2023. Drawing on their many years of experience, they are now also bringing modules to the European market that are more than a match for any competitor. With their N-type TOPCon cells, TW Solar achieves outputs of up to 465 Wp in glass/glass modules with a power temperature coefficient of -0.28 %/°C. These modules are also resistant to salt and ammonia.
Product advantages
- IEC Certified
- State-of-the-art N-type TOPCon
- Module with electrical properties comparable to well-known half-cell modules
- High-density cell connection technology for higher module efficiency
- Super Multi-Busbar technology
- 30 mm frame height, very sturdy
- 25-year product warranty on workmanship
- 30-year performance warranty
- 6000 Pa snow load
- 4000 Pa wind load
Product features TW Solar (Tongwei) TWMNH 48HW470W, Black Frame
- 470 Wp
- 108 monocrystalline half-cut cells
- Efficiency: 23.5%
- 6000 Pa snow load
- 4000 Pa wind load
- Black module frame
- White backsheet
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 23.7 kg
- Connector: MC4 EVO2
- Cable length at module: 1200 mm (landscape)
- Power temperature coefficient: -0.28%/°C
