AEconversion INV315-50
| Type of manufacturer: | INV315-50EU RF |
|---|---|
| Manufacturer Art. No.: | 11-05-600012-XX |
| Art. Nr.: | 4271 |
| Pieces per package unit: |
|
| Phases: | 1 |
| Inverter type: | PV inverter |
Prices are only visible to business customers upon successful registration.
- Sale
- Remaining quantity
Available from stock
Product number:
4271
-
-
AEconversion INV315-50 Connection cable 5 m for Wieland feed-in socket outlet- Art. Nr.: 4273
- AE Conversion
Available from stock{ "id": "049ea140ed4e55f6bfb7f2da57d2af0d", "item_brand": "", "item_name": "AEconversion INV315-50 Connection cable 5 m for Wieland feed-in socket outlet", "item_id": "4273", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "049ea140ed4e55f6bfb7f2da57d2af0d" } } -
{ "id": "7837b53ba8fb5d82b27823594307241c", "item_brand": "", "item_name": "AEconversion distribution block 3-pole", "item_id": "4274", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7837b53ba8fb5d82b27823594307241c" } } -
AEconversion 1 m connection cable from INV315-50 to distribution block- Art. Nr.: 4276
- AE Conversion
Available from stock{ "id": "39174677b5f15aa0806e777dbd163d3b", "item_brand": "", "item_name": "AEconversion 1 m connection cable from INV315-50 to distribution block", "item_id": "4276", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "39174677b5f15aa0806e777dbd163d3b" } }
-
Description
AEconversion Micro-Inverter for 1 module
The AEconversion micro-inverter is designed for use with balcony modules, guerrilla PV or mini-PV systems with a total output of up to 600 watts. The energy generated by the individual module is immediately converted into grid-compliant alternating current. Appliances can be powered directly from the socket using the self-generated electricity.
Advantages of the AEconversion INV 315-50:
- Power up to 300W AC
- Maximum DC voltage: 50 V
- Min./Max. start voltage: 20 V / 50 V
- MPP range: 24 V – 40 V
- Maximum module current: 14 A
- Compatible with modules that have an open-circuit voltage below 45 V
- Complies with the new VDE-4105/2018 standard
- Fully integrated NA protection
- Inverter can be integrated behind the module (30 mm high)
- Can be mounted on the module frame (weighs only 0.8 kg) Thanks to the flexible, screw-mounted mounting bracket (rotatable by 90° and 180°, or removable)
- Automatic, mechanical locking of the RST connectors upon connection
- Release of the lock using a standard screwdriver
- Touch-protected contacts on plug and socket parts, even when not connected
- IP44
Downloads
-
Matching accessories
-

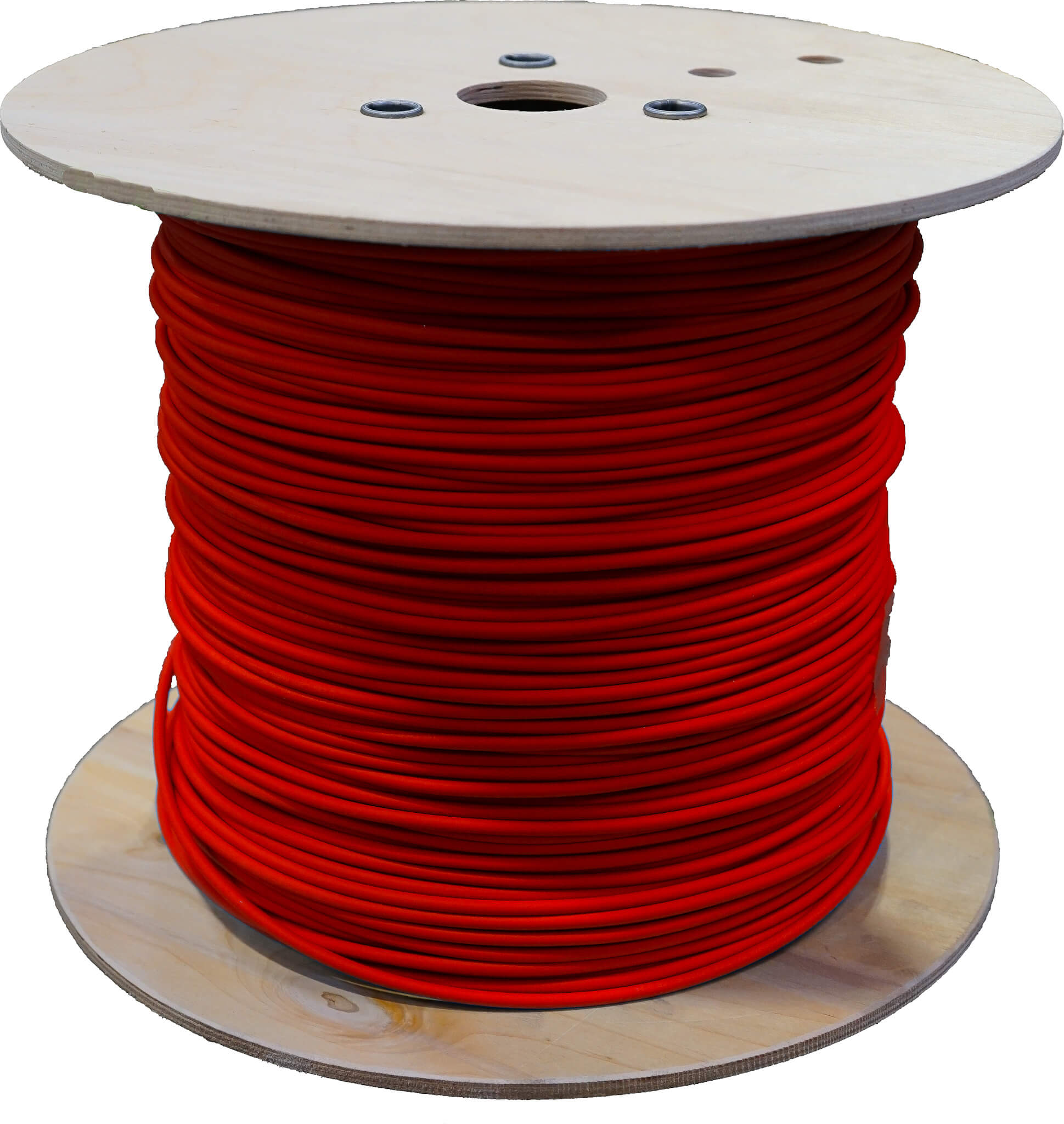

KBE solar cable DB+, 4mm², 500m, red- Type of manufacturer: H1Z2Z2-K 4,0 rt
- Art. Nr.: 11715
On request{ "id": "99c0c13824e15ccfa4480bff7e0e350a", "item_brand": "", "item_name": "KBE solar cable DB+, 4mm², 500m, red", "item_id": "11715", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "99c0c13824e15ccfa4480bff7e0e350a" } } -

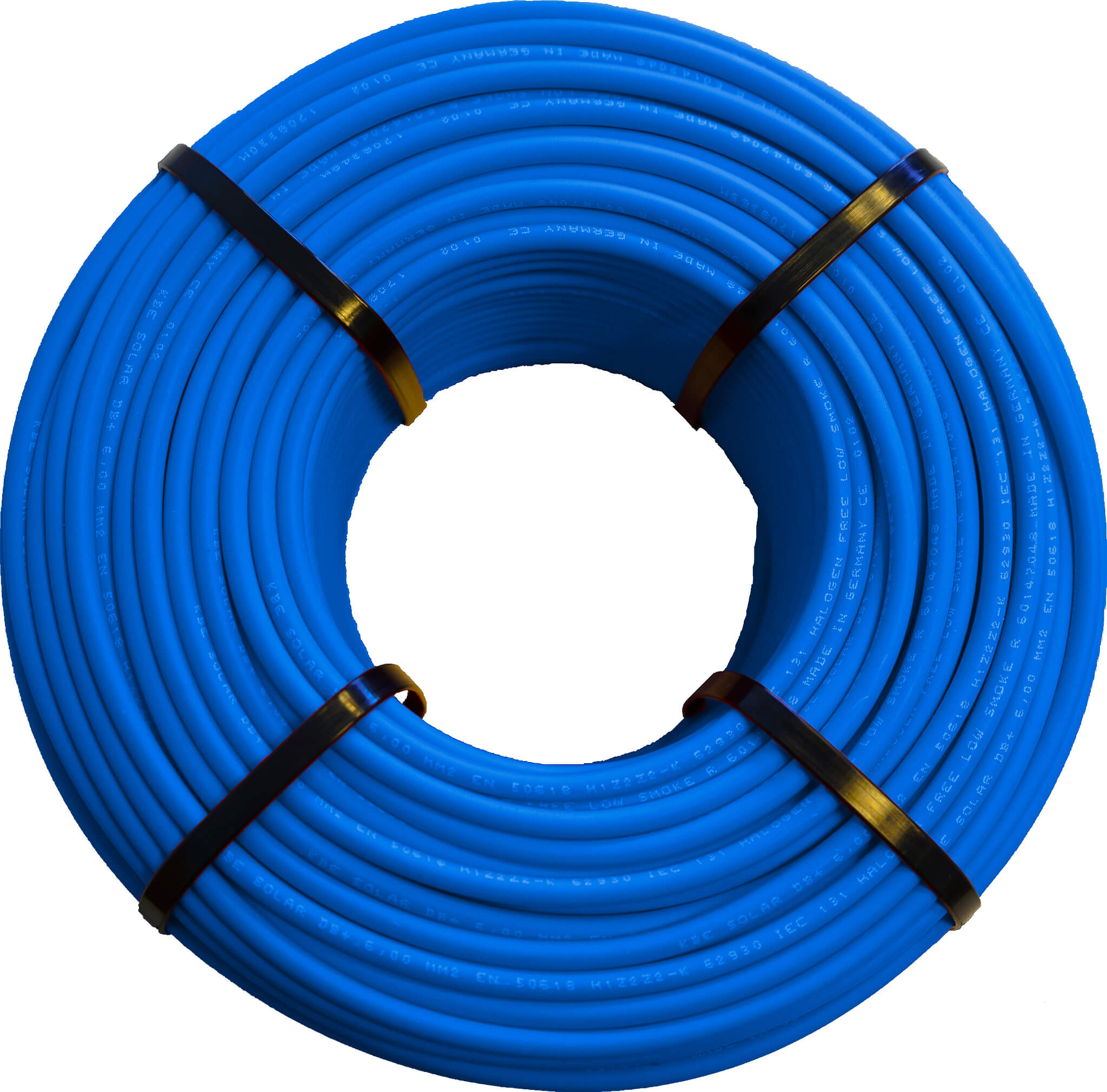

KBE solar cable DB+, 4mm², 100m, blue- Type of manufacturer: H1Z2Z2-K 4,0 bl
