Alumero easyPITCH EF25 roof hook
| Manufacturer Art. No.: | 802509 |
|---|---|
| Art. Nr.: | 16362 |
| Pieces per package unit: |
|
| Product type: | Roof hook |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16362
-
-
{ "id": "105b7b62060255ca9a87dd4601e5a1ad", "item_brand": "", "item_name": "Alumero easyFLEX roof hook AL 13, 3-way adjustable", "item_id": "821", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "105b7b62060255ca9a87dd4601e5a1ad" } }
-
Description

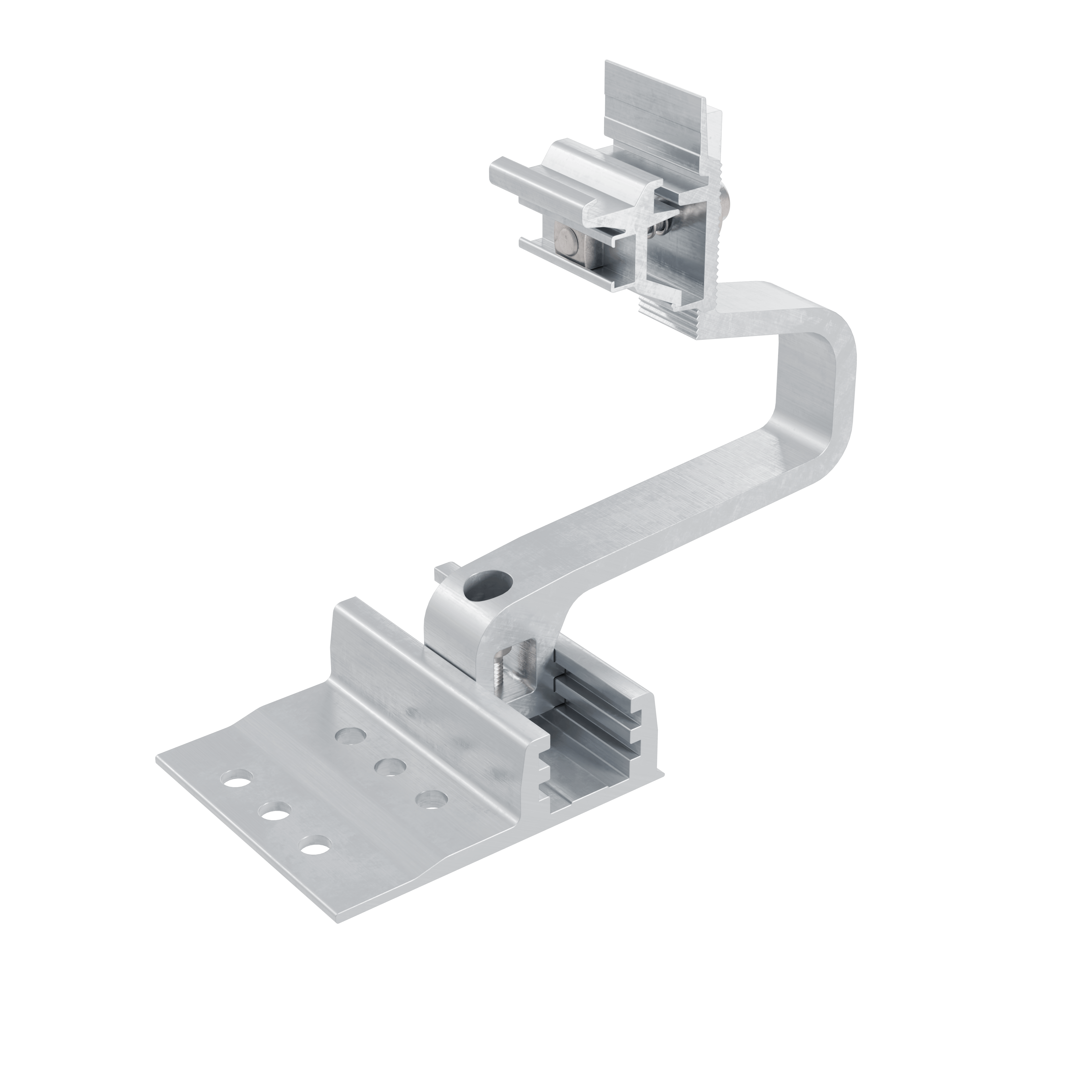

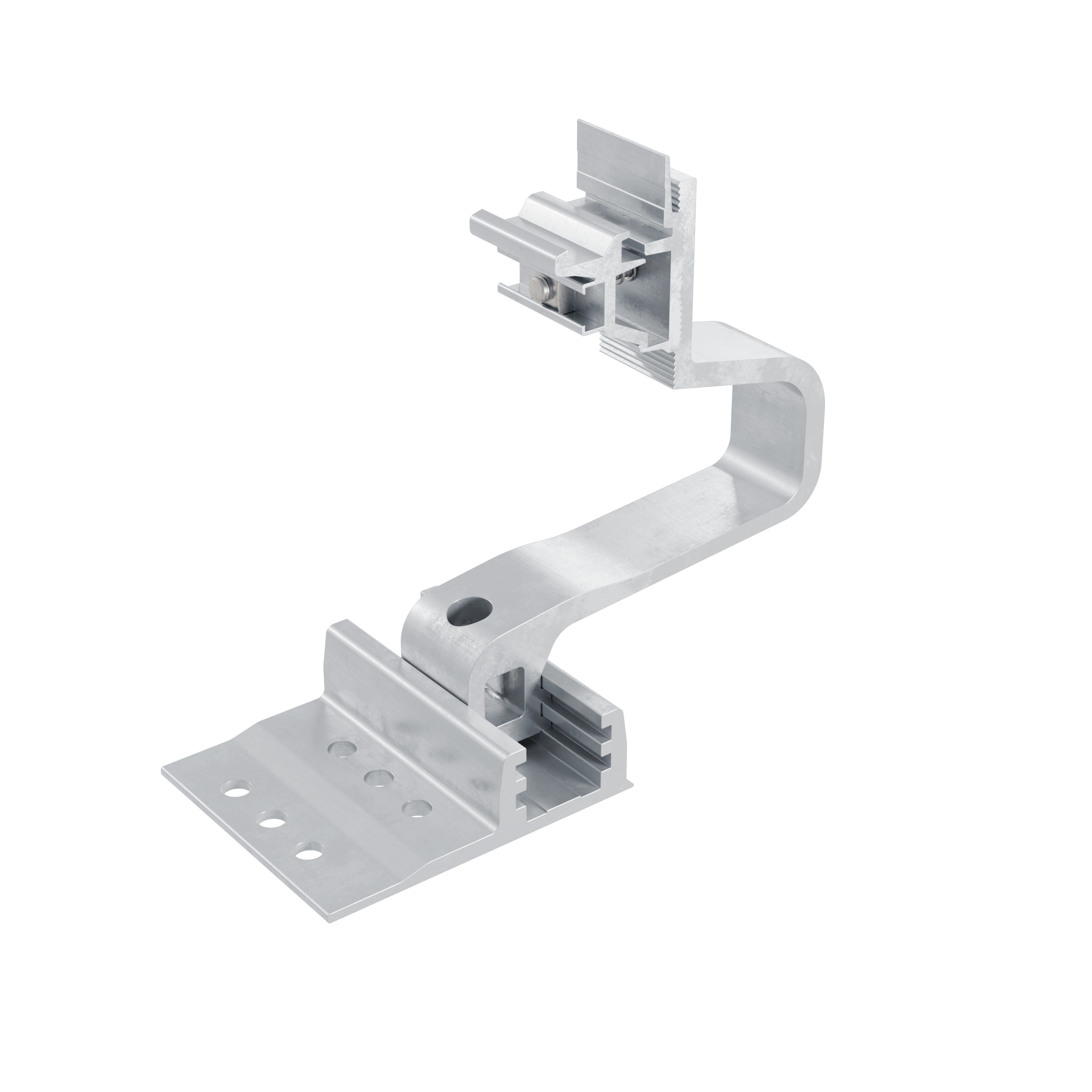

Alumero easyPITCH Roof Hook EF25
The Alumero easyPITCH EF25 roof bracket is the tiled roof bracket with a narrow bracket arm: 25 mm bracket arm width and 8.5 mm bracket arm thickness, combined with the tried-and-tested 111 x 93 mm base plate. It is adjustable in three positions and features a quick-release fitting for mounting rails 37 to 45. It is made from EN AW 6005A-T6 aluminium with A2-70 stainless steel fastenings.
Your benefits
- Narrow bracket with a width of 25 mm and a thickness of 8.5 mm
- Adjustable in three positions directly on the roof – adjust the position without any further work
- Quick-release fitting for mounting rails 37 to 45 – insert, tighten, done
- Fine adjustment in 2.5 mm increments using the Uni shim (803606)
- For universal use on tiled roofs
- Aluminium EN AW 6005A-T6, stainless steel A2-70 fastenings
Order now
Are you installing on a tiled roof? Order the Alumero easyPITCH EF25 roof hook directly here in the Memodo Shop. The required quantity and fixing points are determined by the design.
Application examples
- Roof-mounted systems on tiled roofs of detached and semi-detached houses
- Connection of mounting rails 37 and 45 to the roof structure
Technical data
- Roof type: Tiled
- Dimensions (L x W x H): 215 x 93 x 185 mm
- Base plate: 111 x 93 mm
- Bracket width: 25 mm (40 mm in the quick-release area)
- Bracket thickness: 8.5 mm
- Adjustability: 3-position
- Rail mounting: Quick-release mount for mounting rail 37–45
- Material: EN AW 6005A-T6, fastenings A2-70
- Weight: 0.535 kg
- Sales unit: 20 pieces per box, 480 pieces per Euro pallet
- Product code: 76169990
- Manufacturer’s item number: 802509
-
Matching accessories
-
Alumero easyPITCH mounting rail 37 (4.8 m)- Type of manufacturer: 802105-48
- Art. Nr.: 15705
{ "id": "7f21c025c260585492df2d55a34ed31c", "item_brand": "", "item_name": "Alumero easyPITCH mounting rail 37 (4.8 m)", "item_id": "15705", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f21c025c260585492df2d55a34ed31c" } } -
Alumero profile connector 37- Type of manufacturer: 802155
- Art. Nr.: 1352
{ "id": "8cbec4360ec15c53b187a72543be9b04", "item_brand": "", "item_name": "Alumero profile connector 37", "item_id": "1352", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8cbec4360ec15c53b187a72543be9b04" } } -
Alumero easyPITCH mounting rail 37 (3.6 m)- Type of manufacturer: 802105-36
- Art. Nr.: 8753
{ "id": "9c7eed35a59b50e783049e637b61f0e4", "item_brand": "", "item_name": "Alumero easyPITCH mounting rail 37 (3.6 m)", "item_id": "8753", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9c7eed35a59b50e783049e637b61f0e4" } } -
Alumero End Clamp Click with Pin 30-42 mm- Type of manufacturer: 802304C P1 30-42
- Art. Nr.: 7369
{ "id": "a533e81f98a35cd299e100c18e504cc2", "item_brand": "", "item_name": "Alumero End Clamp Click with Pin 30-42 mm", "item_id": "7369", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a533e81f98a35cd299e100c18e504cc2" } } -
Alumero easyPITCH mounting rail 37 (2.4 m)- Type of manufacturer: 802105-24
- Art. Nr.: 14311
{ "id": "addf5aaf78645ee29b3263ece22dc7d1", "item_brand": "", "item_name": "Alumero easyPITCH mounting rail 37 (2.4 m)", "item_id": "14311", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "addf5aaf78645ee29b3263ece22dc7d1" } } -
Alumero easyFLEX pan-head screw 8.0 x 100- Type of manufacturer: 800665
- Art. Nr.: 14549
{ "id": "c521a1a3d6d452a2bbfa4f1a25e3e653", "item_brand": "", "item_name": "Alumero easyFLEX pan-head screw 8.0 x 100", "item_id": "14549", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c521a1a3d6d452a2bbfa4f1a25e3e653" } } -
Alumero easyCLAMP centre clamp with pin, 28 - 42 mm, silver- Type of manufacturer: 802301C P1 28-42
- Art. Nr.: 14317
{ "id": "d73c2f1fac5e54639140f0408eab7fa8", "item_brand": "", "item_name": "Alumero easyCLAMP centre clamp with pin, 28 - 42 mm, silver", "item_id": "14317", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d73c2f1fac5e54639140f0408eab7fa8" } } -
- New

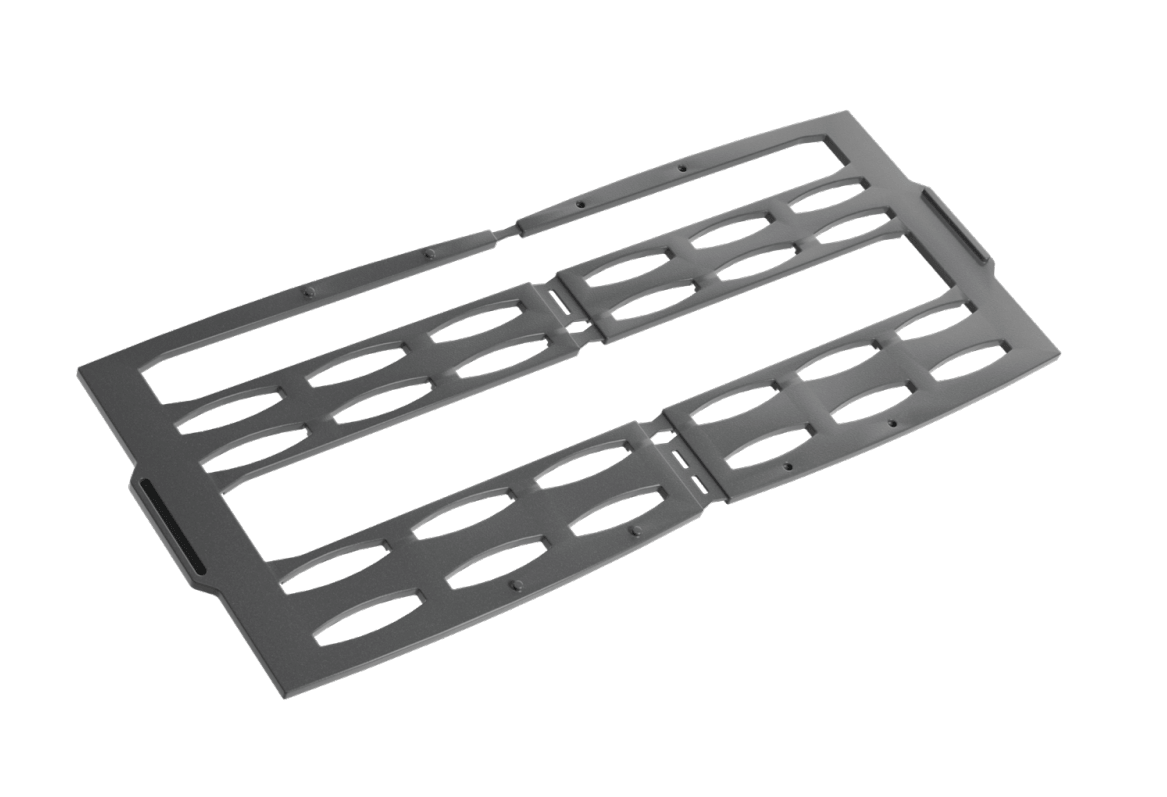

Alumero easyPITCH Uni base plate- Art. Nr.: 16365
