Alumero easyPITCH EF35 roof hook
| Manufacturer Art. No.: | 802514 |
|---|---|
| Art. Nr.: | 16361 |
| Pieces per package unit: |
|
| Product type: | Roof hook |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16361
Description

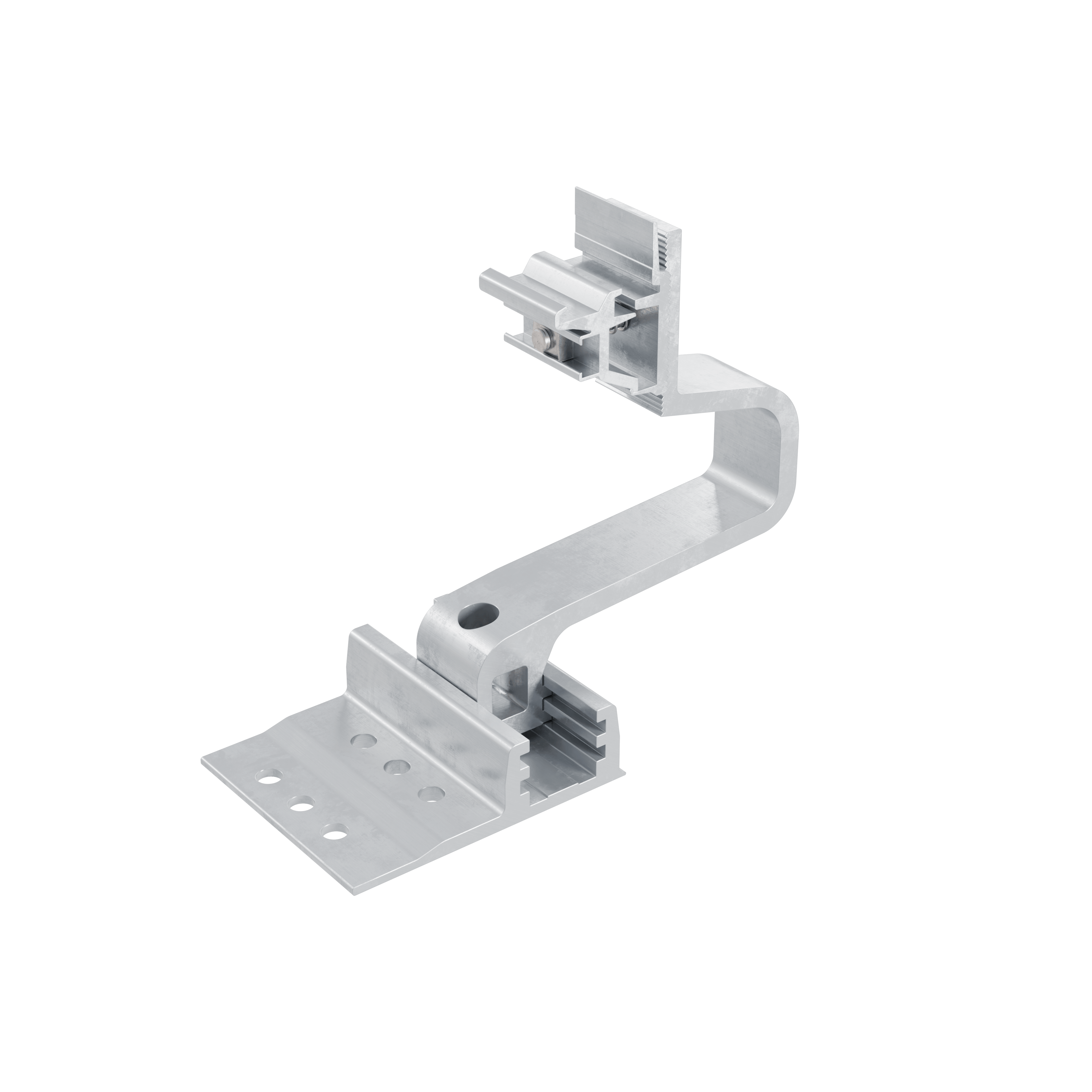

Alumero easyPITCH Roof Hook EF35
The EF35 is the new standard roof bracket in the easyPITCH system for tiled roofs. It is adjustable in three directions and accommodates mounting rail 37 to 45 via a quick-release mechanism – simply insert, tighten and carry on. The bracket is 35 mm wide and 8.5 mm thick; the base plate measures 111 x 93 mm and is fixed using six Ø 9 mm holes. It is made from EN AW 6005A-T6 aluminium with A2-70 stainless steel screws.
Your benefits
- 20 per cent higher structural values than the previous model
- Adjustable in three ways directly on the roof – adjust height and position without any further work
- Quick-release fitting for mounting rails 37 to 45 – insert, tighten, done
- Fine adjustment in 2.5 mm increments using the Uni shim (803606)
- Bracket 8.5 mm thick – the robust option for demanding projects
- Universally suitable for standard roof batten and tile thicknesses
- Aluminium EN AW 6005A-T6, stainless steel A2-70 fastenings
Order now
Are you carrying out installation work on a tiled roof? Order the Alumero easyPITCH EF35 roof hook directly here in the Memodo Shop. The required quantity and fixing points are determined by the design.
Examples of use
- Roof-mounted systems on tiled roofs of detached and semi-detached houses
- Roofs with uneven battens, where the hook needs to be levelled
- Renovation projects where the roof tiles should remain as undamaged as possible
Technical data
- Roof type: Tiled
- Dimensions (H x W x L): 184 x 211.65 x 93 mm
- Base plate: 111 x 93 mm
- Holes: 6 x Ø 9 mm
- Bracket width: 35 mm
- Bracket thickness: 8.5 mm
- Adjustability: 3-position
- Rail mounting: Quick-release mounting for mounting rail 37–45
- Tightening torque for bracket fixing: 15 Nm
- Max. height adjustment in the roof batten area: 45–55 mm
- Max. height adjustment in the rail area: 30 mm
- Tile overlap length: up to 95 mm
- Material: EN AW 6005A-T6, A2-70 fasteners
- Weight: 0.613 kg
- Sales unit: 20 pieces per box, 320 pieces per Euro pallet
- Product code: 76169990
- Manufacturer’s item number: 802514
-
