Alumero easySPEED ballast tray 2475
| Manufacturer Art. No.: | 200106-2475 |
|---|---|
| Art. Nr.: | 16062 |
| Pieces per package unit: |
|
| Product type: | Accessories |
| Type of roof: | Flat roof |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16062
Description

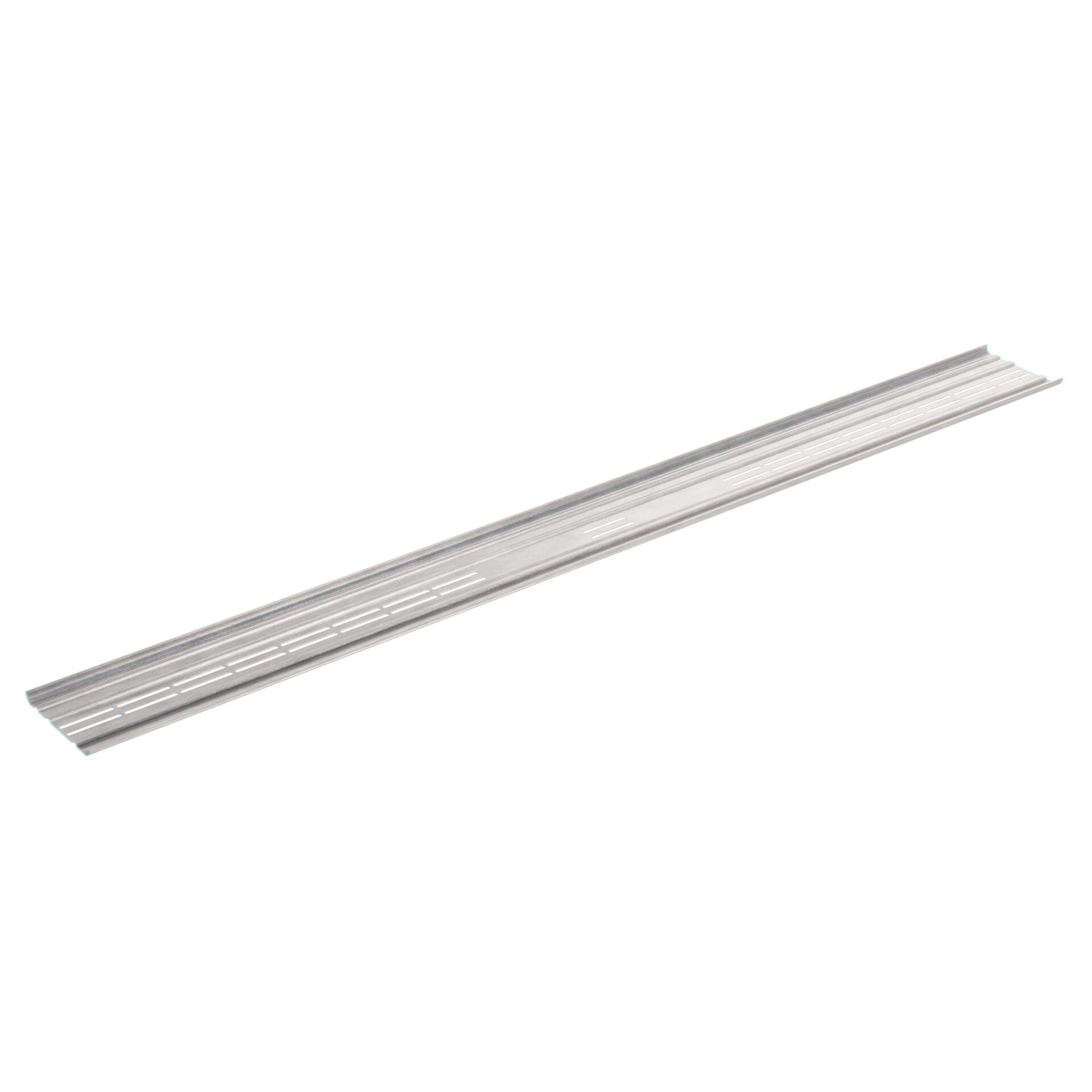

Alumero easySPEED Ballast Trough 2475
The ballast tray, which is 2475 mm long, holds the ballast in the Alumero easySPEED 2 system, securing the installation against wind without penetrating the roof. It is designed for ballast blocks or concrete slabs. The tray is bolted to the base plate via the existing slotted holes.
Your benefits
- Ballasting without penetrating the roof – the roof membrane remains intact
- Designed for ballast blocks up to 500 x 222 x 105 mm
- Screwed to the base plate via existing slotted holes; no drilling required
- Steel with an aluminium-zinc coating
- Length 2475 mm – compatible with the panel layout from the project report
- Part of a system with a 25-year quality guarantee
Order now
Order the Alumero easySPEED ballast tray 2475 directly here in the Memodo Shop. The project report specifies how many trays you need and the required ballast weight – don’t forget the shims.
Application examples
- Ballasting the east-west layout in the easySPEED 2 system
- Projects where concrete slabs are intended for use as ballast
- Roofs where penetration is not permitted
Technical specifications
- Length: 2475 mm
- System: Alumero easySPEED 2 E/W
- Type of ballast: Ballast blocks or concrete slabs
- Material: Steel with aluminium-zinc coating
- Fixing: Screwed to the base plate via slotted holes
- Maximum ballast block size: 500 x 222 x 105 mm
- Recommended ballast block size for calculation: 300 x 200 x 60 mm
- Required shims: at least 1 per trough; 2 shims required for ballast weighing over 64 kg
- Ballast quantity: project-specific, calculated using the Solar.Pro.Tool
- Manufacturer’s item number: 200106-2475
