Alumero easySPEED base plate 140x480

Manufacturer Art. No.:	200123-480
Art. Nr.:	16068
Pieces per package unit:	15 per carton 300 per pallet
Product type:	Elevation system
Type of roof:	Flat roof

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16068

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16068

Tech tip

The crucial factor in a ballasted system is the coefficient of friction between the building protection membrane and the roof structure – this is directly factored into the dead load calculation. Determine this on site in both wet and dry conditions and enter the actual value into the design; if it is lower than assumed, the required ballast increases. The ballast quantity itself is calculated on a project-by-project basis using the Solar.Pro.Tool, not based on empirical values. Two things that are often overlooked on site: ballast trays, which will later be positioned beneath the modules, must be filled before the modules are installed – you won’t be able to access them afterwards. And the aluminium structure must only come into contact with materials whose pH value lies between 4.5 and 8.5; this must be checked in the case of fresh bituminous membranes and coatings.

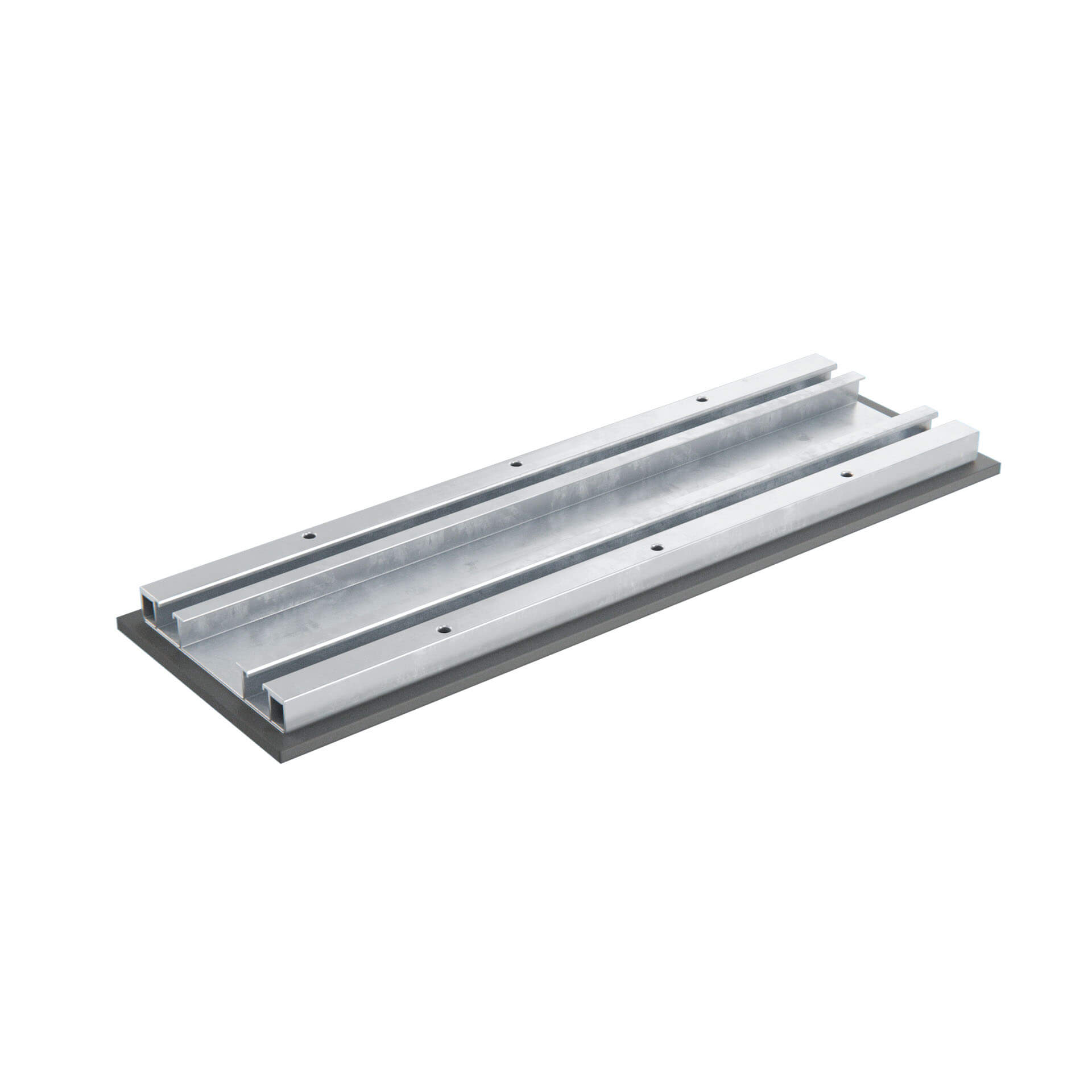

Alumero easySPEED base plate 140x480

The 140 x 480 mm base plate is the narrow version of the base element in the Alumero easySPEED 2 system for east-west installation on flat roofs. It rests on the roof membrane, accommodates supports and profiles, and distributes the load across the entire surface rather than at specific points – meaning you do not need to penetrate the roof. On the underside is a building protection fleece made of polyester needle felt, which protects the roof membrane.

Your benefits

No roof penetrations – the roof membrane remains intact, and existing roof warranties remain valid
Load is distributed across the entire surface rather than concentrated at specific points on the roof membrane
Building protection fleece made of polyester needle-punched felt on the underside, free from plasticisers
Combines the stability of a rail system with the flexibility of a panel system
Approved for membrane, bitumen, concrete and gravel roofs, with or without thermal insulation
Lightning current dissipation up to 50 kA, tested in accordance with DIN EN IEC 62561-1
25-year manufacturer’s quality guarantee

Examples of use

East-west layout on membrane and bitumen flat roofs with a pitch of up to 5°
Installation on concrete and gravel roofs, provided a protective fleece is in place in accordance with regulations
Projects where the roof membrane must not be penetrated

Technical data

Dimensions: 140 x 480 mm
System: Alumero easySPEED 2 E/W
Function: Base element for mounting supports and profiles
Underside: Building protection fleece, polyester needle-punched felt
Orientation: East-West
Module pitch: approx. 10°
Permissible roof pitch: 0° to 5°
Module formats: framed, width 900–1500 mm, length 1500–2500 mm, landscape format
Permissible wind load (suction load): up to 3.00 kN/m²
Permissible snow load: up to 5.76 kN/m²
Suitable roof types: membrane, bitumen, concrete and gravel roofs
Lightning current protection: up to 50 kA, tested in accordance with DIN EN IEC 62561-1
Warranty: 25-year quality guarantee
Manufacturer’s item number: 200123-480
