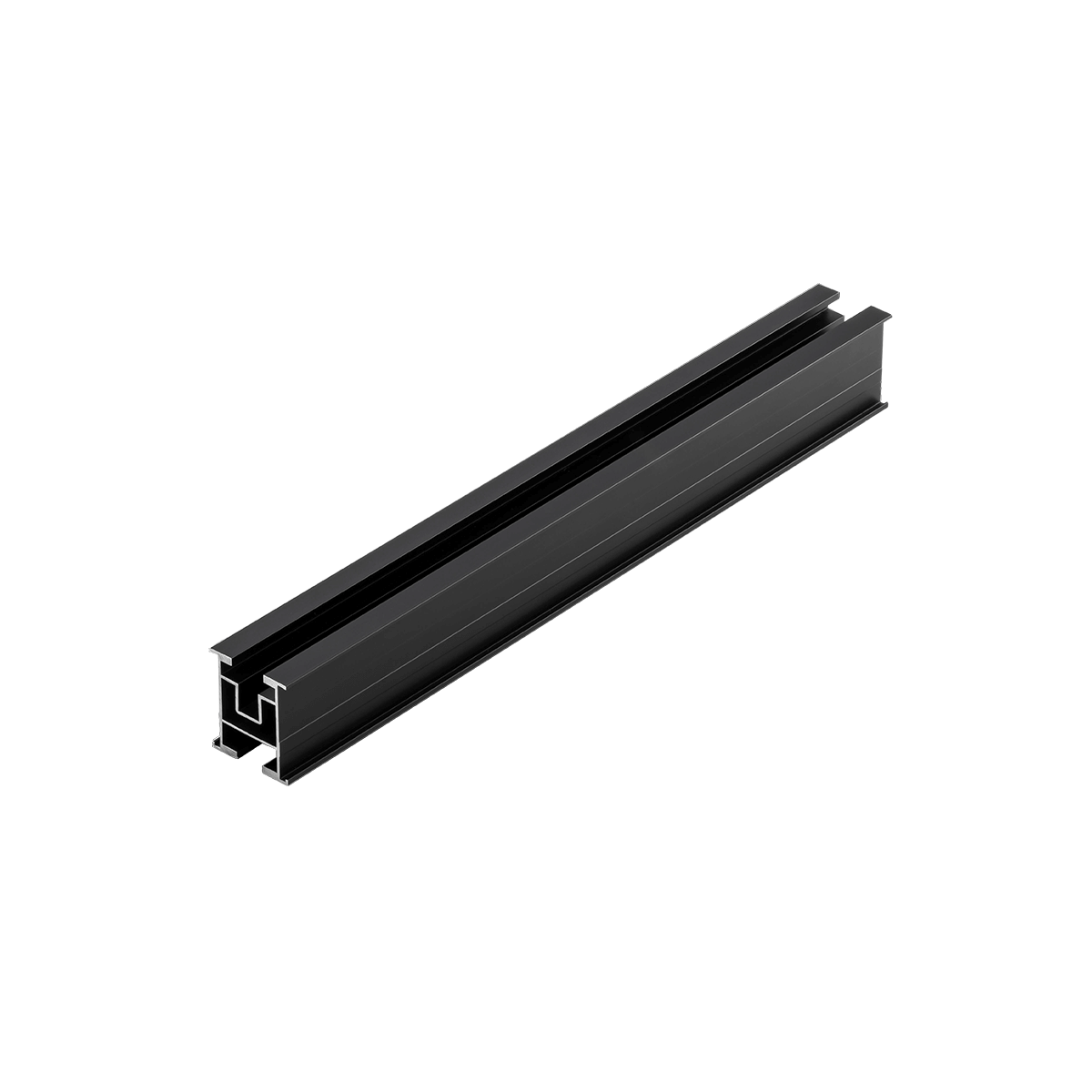

Alumero mounting rail 37, black (3.6 m)
| Manufacturer Art. No.: | 802195-36 |
|---|---|
| Art. Nr.: | 16273 |
| Pieces per package unit: |
|
| Product type: | Mounting rails |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16273
Description
Alumero Mounting Rail 37, black (3.6 m)
The Mounting Rail 37 in black is the support profile in the Alumero easy range for pitched roof installation. It connects the roof hooks to form a continuous plane and accommodates the module clamps. With a profile height of 37 mm, it is the flattest rail in the range – the black version is barely noticeable on dark roofs and behind modules with dark frames.
Your benefits
- Black – visually unobtrusive on dark roofs and with full-black modules
- 37 mm profile height, the flattest rail in the easy range
- Aluminium EN AW 6063 T66
- Compatible with rail connector 802155 and cross connector 2.1 (802200)
- Compatible clamps: Click centre clamp for frames 28 to 42 mm, Click end clamp for 30 to 42 mm
- For use in the easyFLEX system on clay tile, plain tile and slate roofs, with a roof pitch of 10° to 65°
- Also available in 2400, 4800 and 6000 mm
Order now
Order the Alumero Mounting Rail 37 in black, 3.6 m long, directly here in the Memodo Shop. The project specification will determine how many metres you need and the spacing between the roof hooks.
Examples of use
- Pitched roof installation on tiled, plain-tiled and slate roofs
- Systems with dark modules where the mounting system should not be conspicuous
- Installations using the Alumero easyFLEX system
Technical data
- Profile height: 37 mm
- Length: 3.6 m
- Colour: black
- Material: Aluminium EN AW 6063 T66
- System: Alumero easy range, easyFLEX
- Application: Pitched roof, roof pitch 10° to 65°
- Compatible rail connector: 802155
- Compatible cross connector: 2.1 (802200), for support profiles 37 to 65
- Suitable centre clamp: Click 802301C P1, module frame 28 to 42 mm
- Suitable end clamp: Click 802304C P1, module frame 30 to 42 mm
- Maximum overhang beyond the last fixing point: 350 mm
- Tightening torque for clamps and connectors: 15 Nm
- Other lengths: 2400, 3600, 4800 and 6000 mm
- Alumero item number: 802195-36
-
