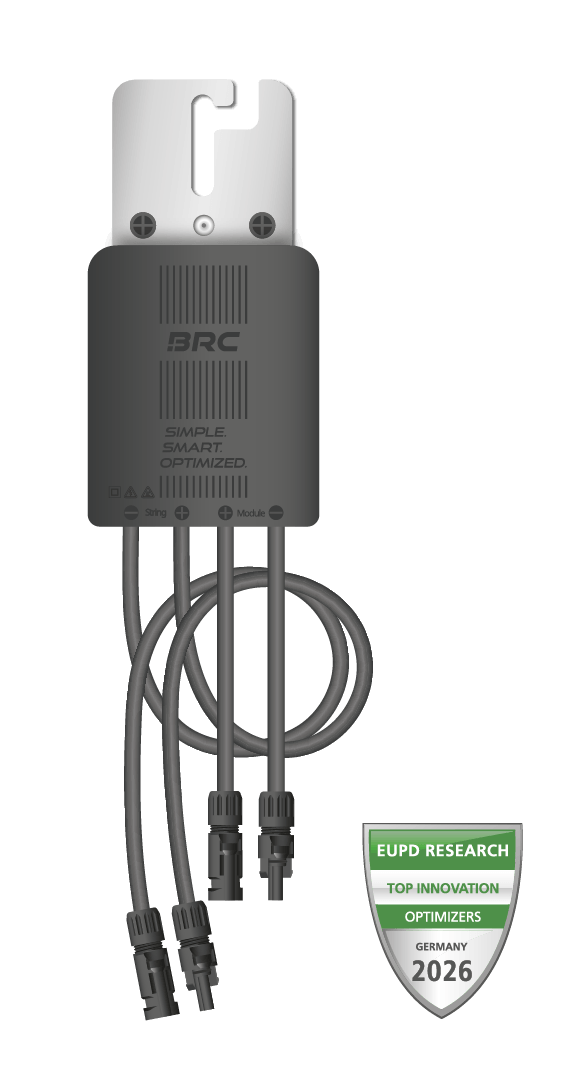

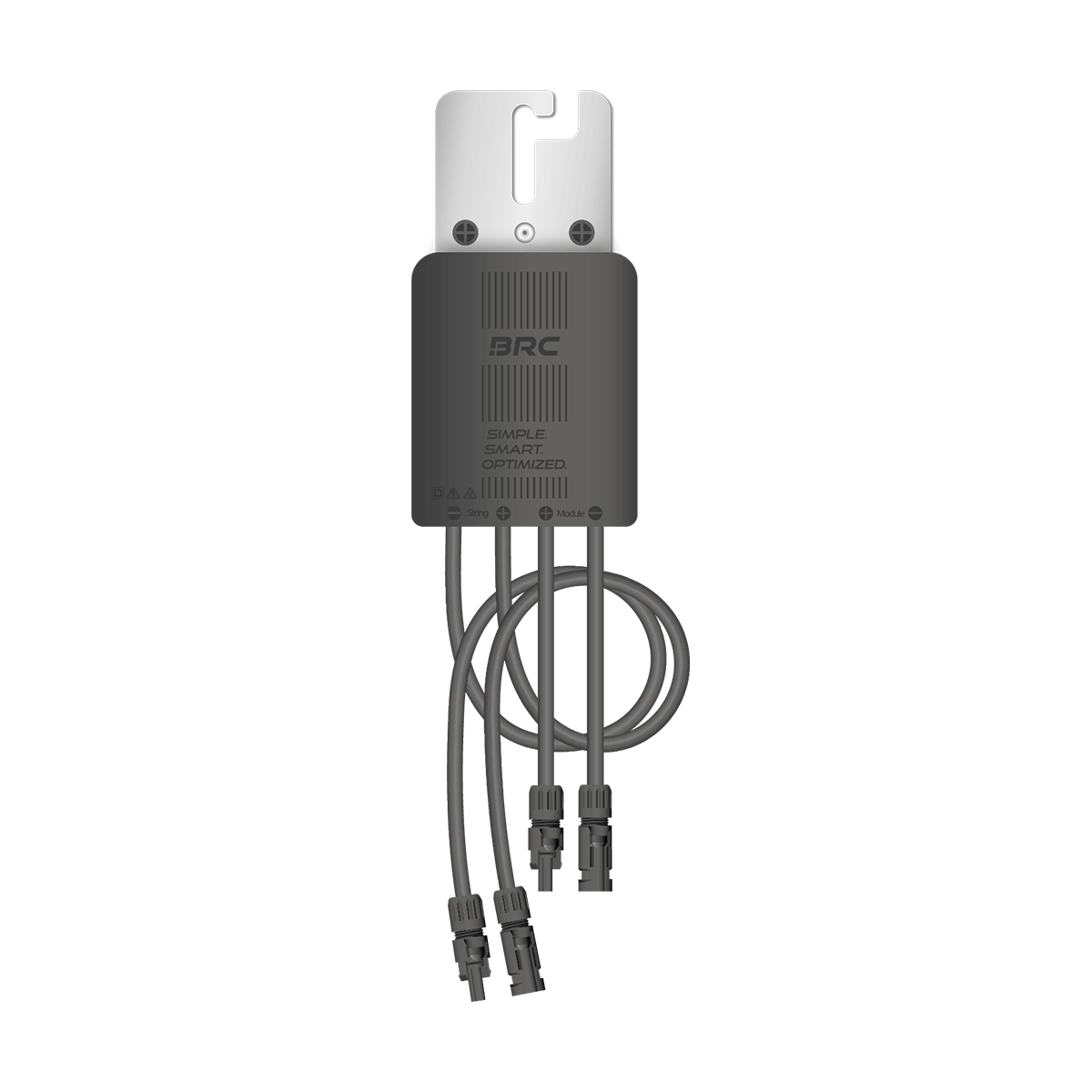

BRC Solar Power M605-M optimiser with monitoring
| Type of manufacturer: | M605-M |
|---|---|
| Manufacturer Art. No.: | 000668 |
| Art. Nr.: | 15951 |
| Pieces per package unit: |
|
| Inverter type: | Optimizer |
| Warranty: | 25 years |
| Communication: | Powerline |
| MPP voltage range: | 16-68 Volt |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15951
-
-
{ "id": "2d8d87a28a0953779a5ee2df8303fd97", "item_brand": "", "item_name": "K2 StairPlate Set", "item_id": "6505", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "25", "shopware_id": "2d8d87a28a0953779a5ee2df8303fd97" } } -
{ "id": "7e839dbfeb515bb4b032daf7223ca4f0", "item_brand": "", "item_name": "BRC Solar BRConnect 2.0 Gateway", "item_id": "15952", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7e839dbfeb515bb4b032daf7223ca4f0" } } -
{ "id": "786647fe4efb5927a076905938375ded", "item_brand": "", "item_name": "BRC Solar BRClamp stainless steel mounting plate", "item_id": "15691", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "150", "shopware_id": "786647fe4efb5927a076905938375ded" } }
-
Description
BRC Solar Power Optimiser M605-M with Monitoring – Maximum performance at module level
The M605-M Power Optimizer from BRCSolar is the perfect solution for Photovoltaic systems operating under partial shading, varying roof pitches or module orientations. Featuring state-of-the-art GaN technology (‘Long-Life Electronics’), the optimiser ensures maximum efficiency, reliability and an exceptionally long service life.
Thanks to its direct integration into the BRConnect Gateway 2.0, the M605-M offers precise monitoring at module level – without the need for wireless modules, but via stable powerline communication. This gives operators and installers a constant overview of the performance of each individual module and enables them to quickly identify any faults.
With a 25-year manufacturer’s warranty, BRC Solar is sending a clear signal of quality, trust and sustainability.
The BRConnect Gateway 2.0 is required for monitoring!
The M605-M system is not backwards compatible
Product benefits:
- Maximum yields through module optimisation in the event of shading and varying roof orientations
- Module-level monitoring via the BRConnect Gateway – reliable powerline communication, no radio interference
- Durable GaN technology (“Long-Life Electronics”) for maximum reliability and minimal ageing effects
- 25-year manufacturer’s warranty – maximum security for long-term investments
- Robust and weatherproof: IP68-rated housing for use in any environment
- Simple installation – plug-and-play integration into new or existing PV systems
- Sustainable solution: Less electronics in the Inverter, resulting in greater system stability
- High compatibility – scalable for small to large PV systems
Product features:
- Input power: Up to 605 watts
- Short-circuit current: 20 A DC
- Voltage range: 16–68 V DC
- Weight: 500g
- Mounted with an M8 screw. We recommend the BRClamp mounting plate or the K2 StairPlate set
- Connector: Stäubli MC4 (for 1000 V)
- IP protection rating: IP68
- Communication: Powerline Communication (PLC)
- Maximum string cable length: 300m
- Minimum number of optimisers per string: 1
- Maximum number of optimisers per string: 25
- Cable length: Input: 0.16 m / Output: 1.2 m
-
