DEHN Push-in spring clamp STAK 4X10
| Type of manufacturer: | STAK 4X10 |
|---|---|
| Manufacturer Art. No.: | 952588 |
| Art. Nr.: | 14310 |
| Pieces per package unit: |
|
| Accessory type: | Installation accessories |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14310
Description
DEHN STAK 4X10 push-in spring terminal
With the DEHN Push-in spring terminal STAK 4X10, you can achieve EMC-optimised through-wiring in accordance with DIN VDE 0100-534. The compact terminal allows the connection of up to four conductors with cross-sections of up to 10 mm² – perfect for safe use in surge protection devices. Thanks to the push-in technology, wiring is quick, reliable and requires no additional tools.
Product benefits
- Connection of up to four conductors to a surge protection device
- EMC-optimised through-wiring in accordance with DIN VDE 0100-534
- Simple, tool-free installation thanks to push-in technology
- Suitable for conductor cross-sections up to 10 mm²
- Compact design: only 1 TE wide in accordance with DIN 43880
- Robust design for indoor use
Product features
- Max. PV voltage: 1500 V
- Max. surge current: 40 kA
- Operating temperature range: -40 °C to +80 °C
- Min. connection cross-section: 1.5 mm² (solid) / 6 mm² (stranded)
- Max. connection cross-section: 10 mm² (solid/stranded)

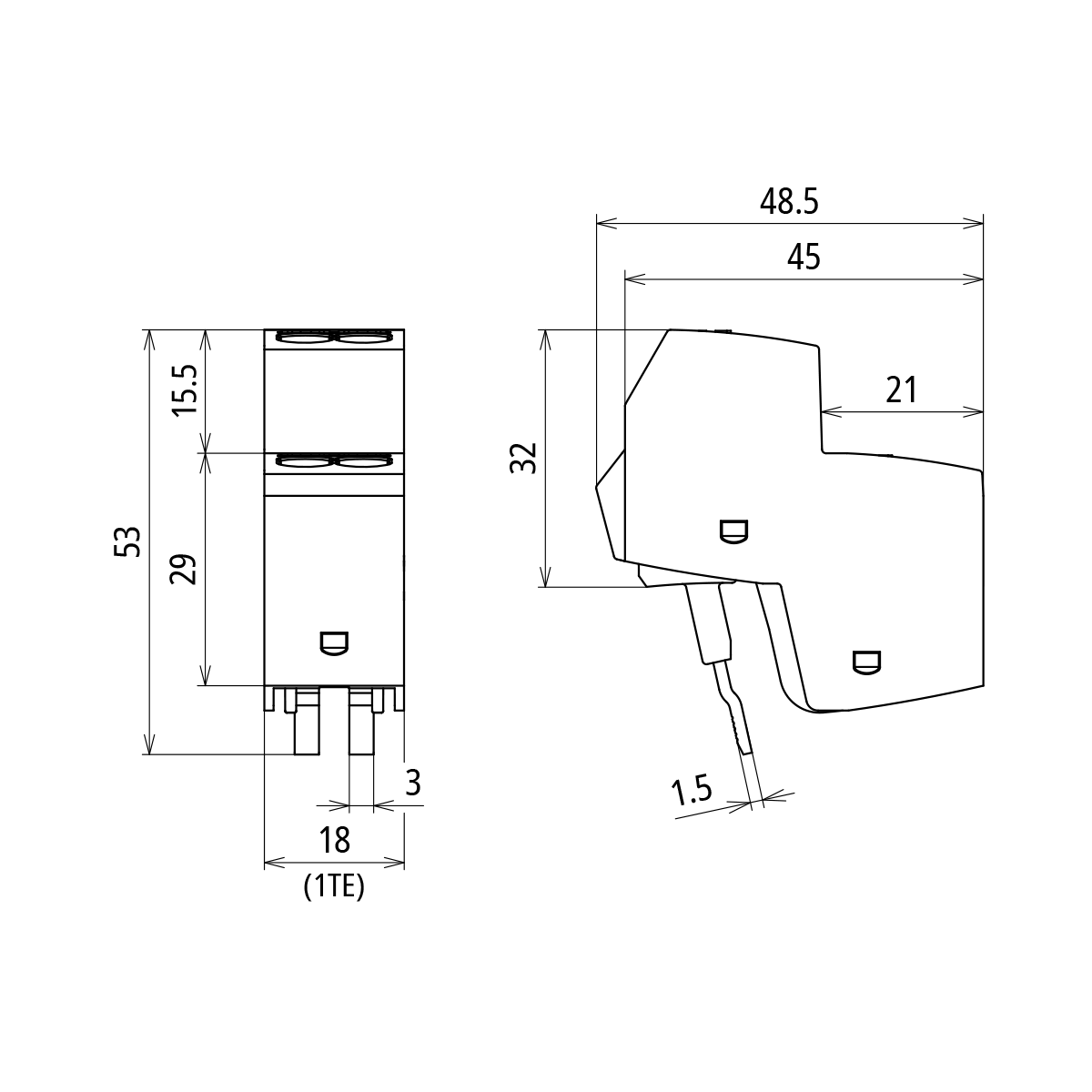

- Mounting dimensions: 1 TE, DIN 43880
- Weight: 36 g
- Installation location: Interior
-
