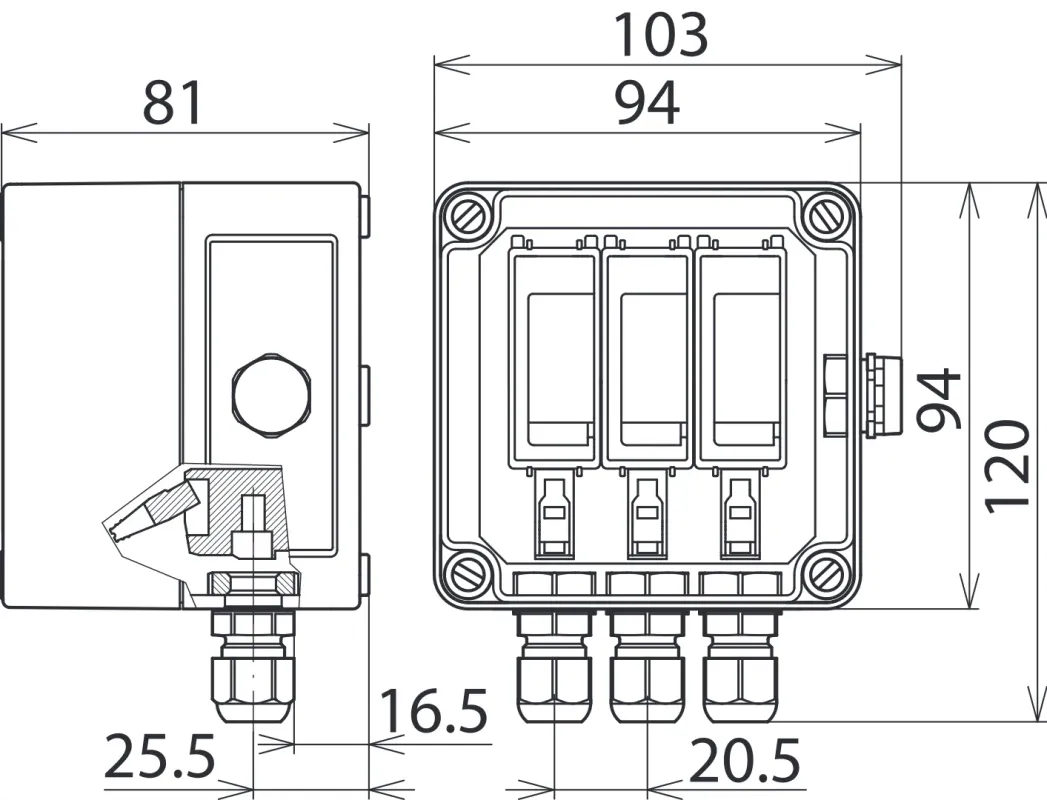

DEHNcube YPV SCI 1000 1M
| Type of manufacturer: | DCU YPV SCI 1000 1M |
|---|---|
| Manufacturer Art. No.: | 900910 |
| Art. Nr.: | 14025 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14025
-
-
{ "id": "11e15c48cbd654dfb12952dd81a1479a", "item_brand": "", "item_name": "DEHNcube YPV SCI 1000 2M", "item_id": "14008", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "11e15c48cbd654dfb12952dd81a1479a" } } -
{ "id": "4b3fcb97719b5b3d9c59d7cf00057527", "item_brand": "", "item_name": "Y-connecting cable for DEHNcube", "item_id": "14026", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "4b3fcb97719b5b3d9c59d7cf00057527" } }
-
Description
DEHNcube YPV SCI 1000 1M, GAK Type 2, IP65, 1 MPP up to 1000 V DC
The DEHNcube PV DCU YPV SCI 1000 1M is a ready-to-connect, multi-pole surge arrester for PV systems with a single MPP input. Thanks to its IP65 protection rating and the patented SCI principle (safe electrical isolation), it reliably protects outdoor PV inverters. The three-stage DC switching device enables compact and rapid installation without the need for an additional insulating enclosure.
Product benefits
- You benefit from safe electrical isolation thanks to the SCI principle
- Saves space as no separate enclosure is required
- Ideal for outdoor use thanks to a robust IP65 enclosure
- Quick installation thanks to a pre-assembled system
- Effective protection thanks to Type 2 combination up to 1000 V DC
- Transparent cover with display for quick status checks
Product features
- 1 MPP input
- Max. PV voltage: 1000 V
- Surge current (Imax): 25 kA
- Protection level ≤ 4 kV
- Response time: ≤ 25 ns
- Operating temperature: -35 °C to +80 °C
- IP65 housing with pressure equalisation element
- Connection cross-section: 2.5–6 mm²
