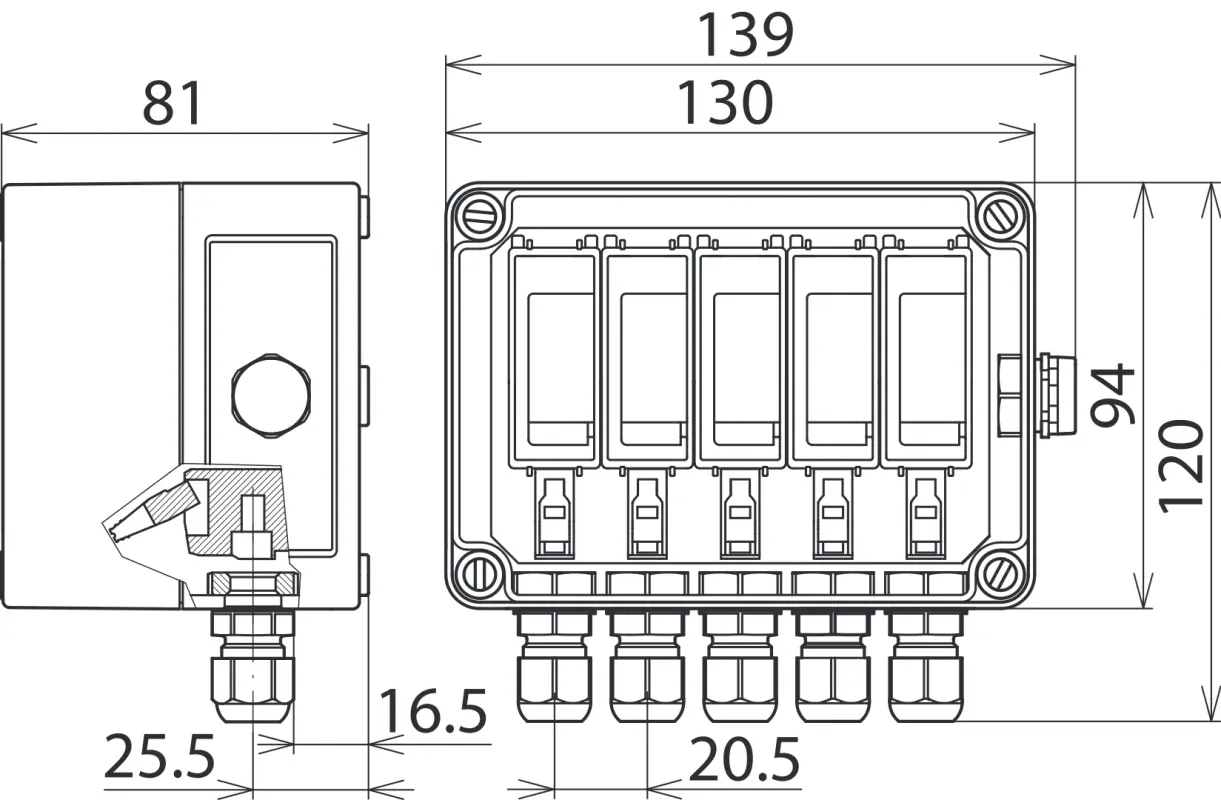

DEHNcube YPV SCI 1000 2M
| Type of manufacturer: | DCU YPV SCI 1000 2M |
|---|---|
| Manufacturer Art. No.: | 900920 |
| Art. Nr.: | 14008 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14008
Description

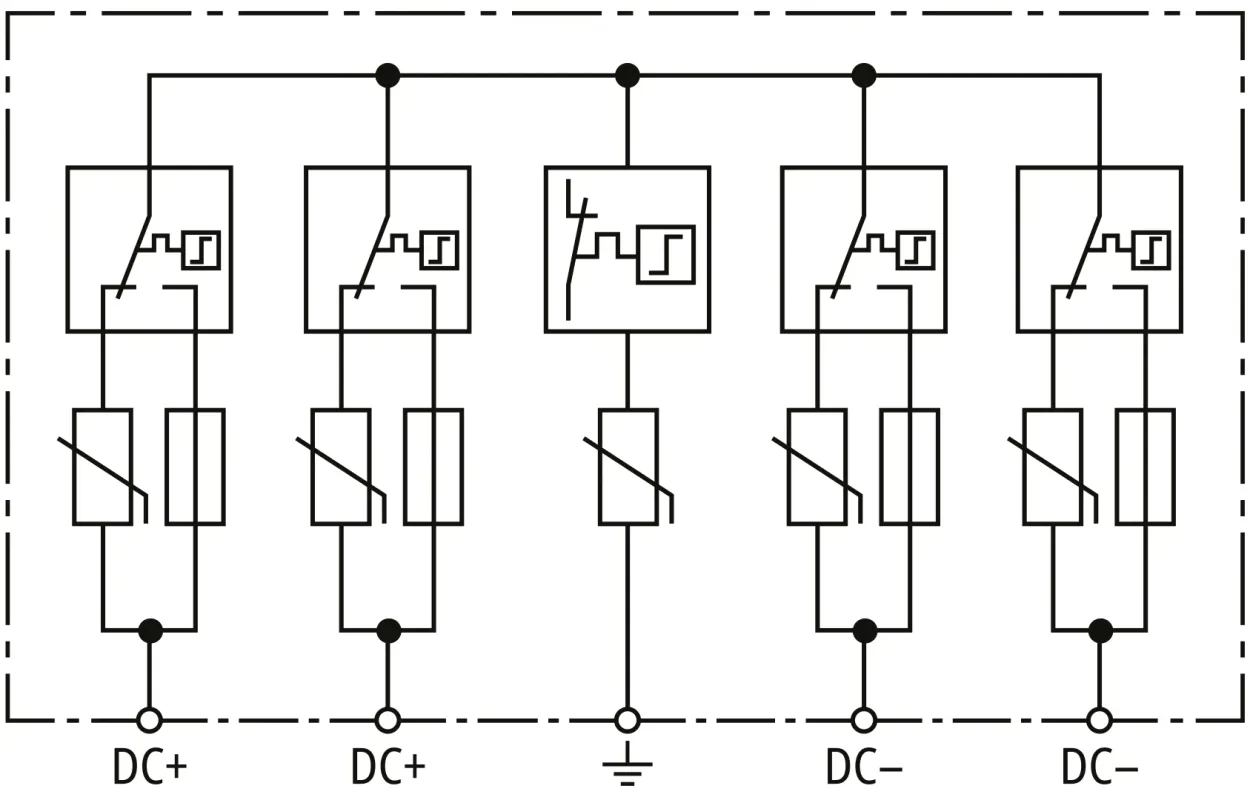

DEHNcube YPV SCI 1000 2M, Type 2 GAK for 2 MPPT
With the DEHNcube PV DCU YPV SCI 1000 2M, you can reliably protect your Photovoltaic system against overvoltage. The four-pole Type 2 arrester for two MPP trackers is particularly space-saving and easy to install outdoors. Thanks to SCI technology, it safely isolates electrical paths, protects your PV components from voltage spikes of up to 1000 V DC and ensures maximum safety with a compact design.
Product benefits
- Protects two MPP inputs
- Saves space with an IP65-rated housing for outdoor use
- Quick and easy installation – supplied ready to connect
- High surge current resistance up to 40 kA for maximum safety
- Visible status indicator for easy maintenance checks
Product features
- Number of MPPT / strings: 2 MPP inputs protected by 1 unit
- Type 2 / Class II surge protection in accordance with EN 61643-31 / IEC 61643-31
- Max. PV voltage: 1000 V DC
- Total surge current: 40 kA (8/20 µs)
- Protection level: ≤ 4 kV (at 5 kA ≤ 3.5 kV)
- Response time: ≤ 25 ns
- Installation location: Outdoor
- Enclosure: IP65 with transparent cover and pressure equalisation
- Connection cross-section: 2.5–6 mm² single-core/stranded
-
Matching accessories
-

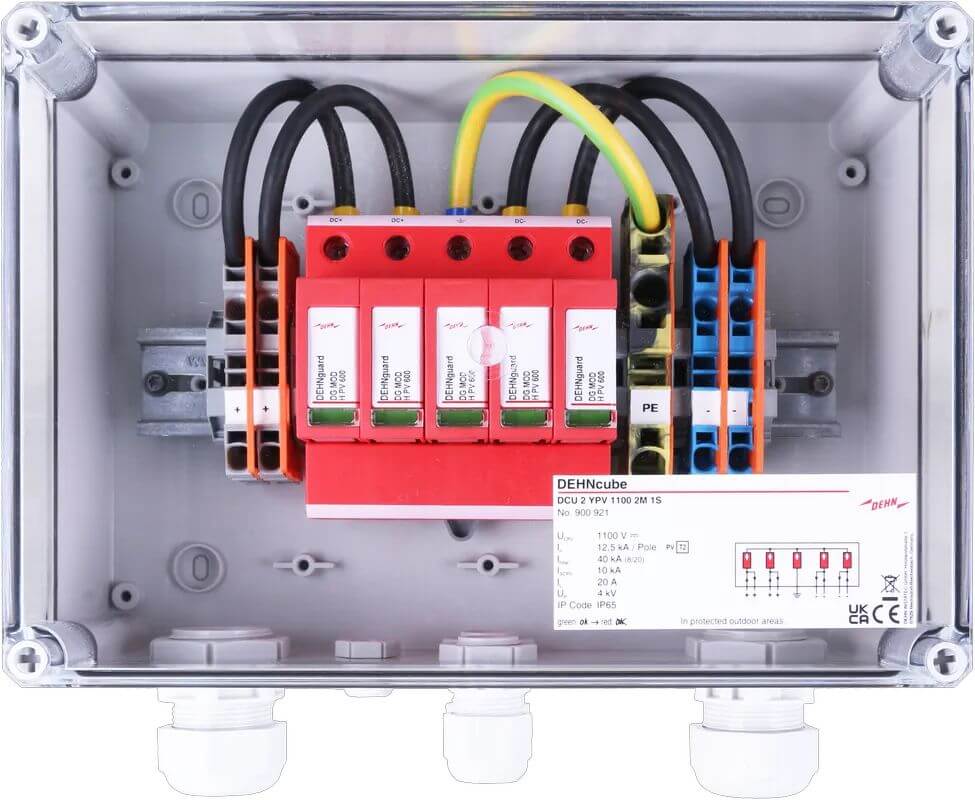

DEHNcube 2 YPV 1100 2M 1S- Type of manufacturer: DCU 2 YPV 1100 2M 1S
- Art. Nr.: 14012
Available from stock{ "id": "859dc317eeb85ed2a012b2aeca40f767", "item_brand": "", "item_name": "DEHNcube 2 YPV 1100 2M 1S", "item_id": "14012", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "859dc317eeb85ed2a012b2aeca40f767" } } -

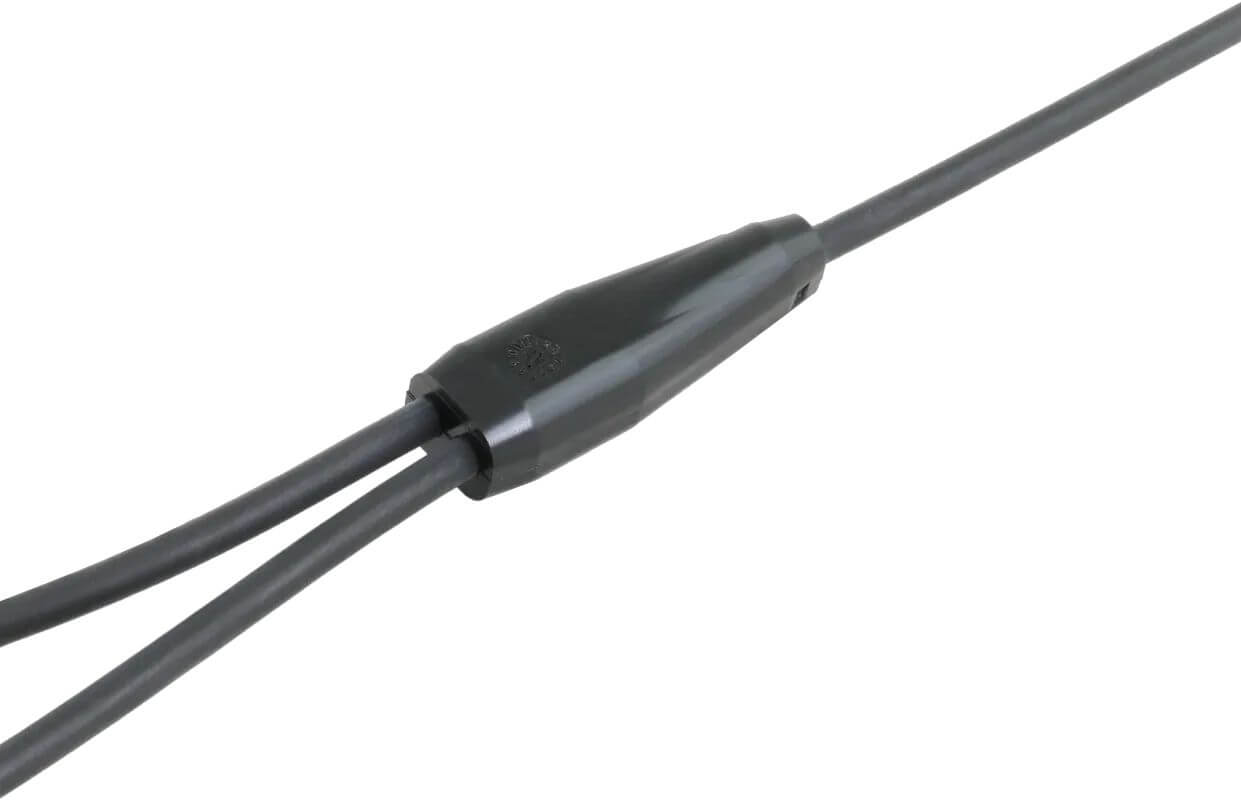

Y-connecting cable for DEHNcube- Type of manufacturer: AL DCU Y PV L3X1000
- Art. Nr.: 14026
Available from stock{ "id": "4b3fcb97719b5b3d9c59d7cf00057527", "item_brand": "", "item_name": "Y-connecting cable for DEHNcube", "item_id": "14026", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "4b3fcb97719b5b3d9c59d7cf00057527" } }
-
