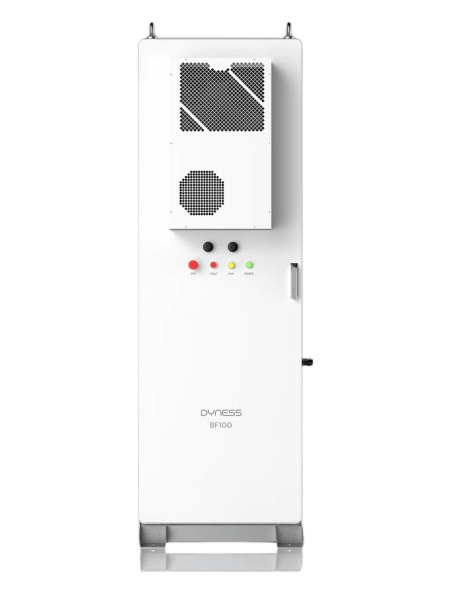

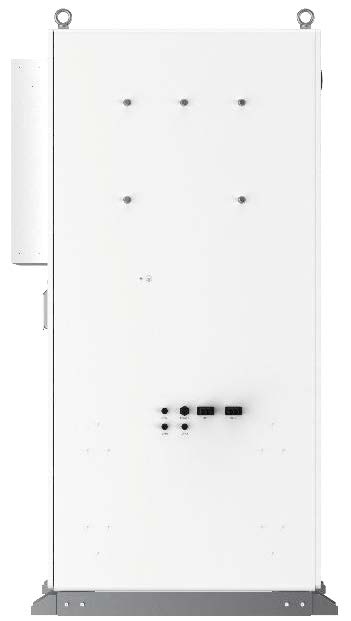

Dyness BF100-C100
| Type of manufacturer: | Dyness BF100-C100 |
|---|---|
| Manufacturer Art. No.: | BF100 C100 |
| Art. Nr.: | 14646 |
| Pieces per package unit: |
|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 95 kWh |
| Warranty: | 5 years |
| Communication: | Ethernet, 4G, RS485 |
| Commercial storage type: | Modular without inverter |
Prices are only visible to business customers upon successful registration.
- New
Product number:
14646
Description
Dyness BF100‑C100 100 kWh
Dyness develops innovative energy storage solutions that combine efficiency, safety and flexibility. The BF100 series offers modular, scalable DC battery cabinets with intelligent control and high reliability.
The Dyness BF100‑C100 is a 100 kWh lithium iron phosphate Battery storage system, ideal for small to medium-sized commercial installations. The modular design allows for flexible expansion, whilst the robust enclosure with IP55 protection ensures reliable operation under a wide range of conditions.
Product benefits
- Compact, high-performance solution for small to medium-sized installations
- Modular and flexibly expandable
- Intelligent energy management for efficient operation
- Weatherproof and durable thanks to IP55 and corrosion protection
Product features:
- Capacity: 100.0 kWh (7 × 14.28 kWh modules)
- DoD: 95%
- Cell type: LiFePO₄
- Voltage range: 324.8–403.2 V
- Max. charge/discharge current: 160 A
- Service life: ≥ 8,000 cycles / 10 years
- Operating temperature (charging): -20°C to 50°C
- Communication: Ethernet, 4G, RS485
- Protection class: IP55
- Corrosion protection class C3
- Weight: approx. 1,200 kg
- Dimensions: 725 x 1200 x 2260 mm (LxWxH)
