Solinteg M2HT-50K-150
| Type of manufacturer: | M2HT-50K-150 |
|---|---|
| Manufacturer Art. No.: | M2HT-50K-150 |
| Art. Nr.: | 15677 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter, Project inverter |
| MPP-Tracker: | 4 |
| AC power: | 50 kW |
| Warranty: | 5 years |
| Communication: | CAN, RS485 |
| MPP voltage range: | 200-950 Volt |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15677
-
-
{ "id": "5f3a84172a245153a826f91e815d0c26", "item_brand": "", "item_name": "Dyness STACK280 battery module", "item_id": "15808", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5f3a84172a245153a826f91e815d0c26" } } -
{ "id": "7e096f2284d257c09aa949bc2ab148b4", "item_brand": "", "item_name": "Dyness Stack280 SBDU200 + base", "item_id": "15813", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7e096f2284d257c09aa949bc2ab148b4" } }
-
Description

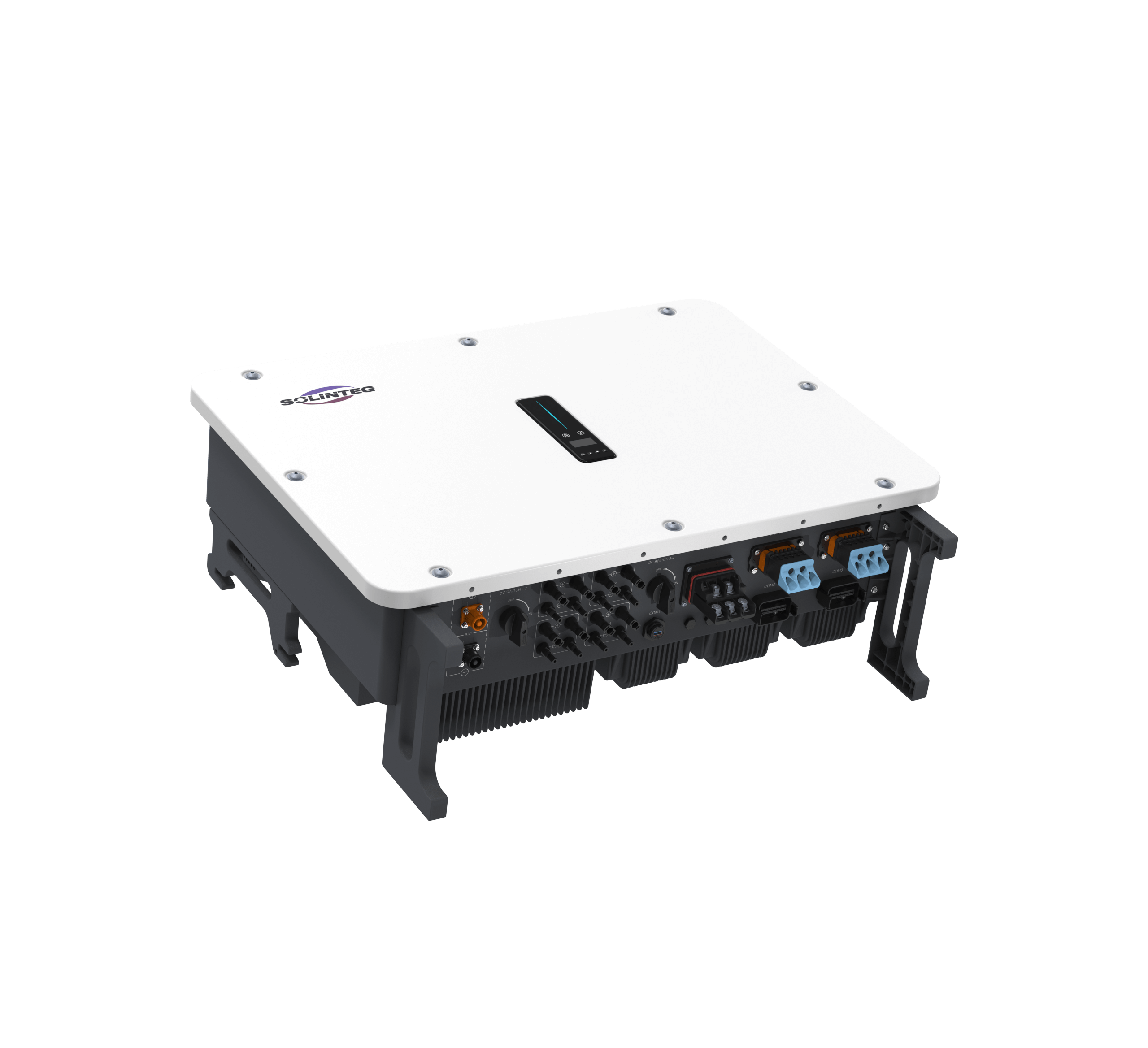

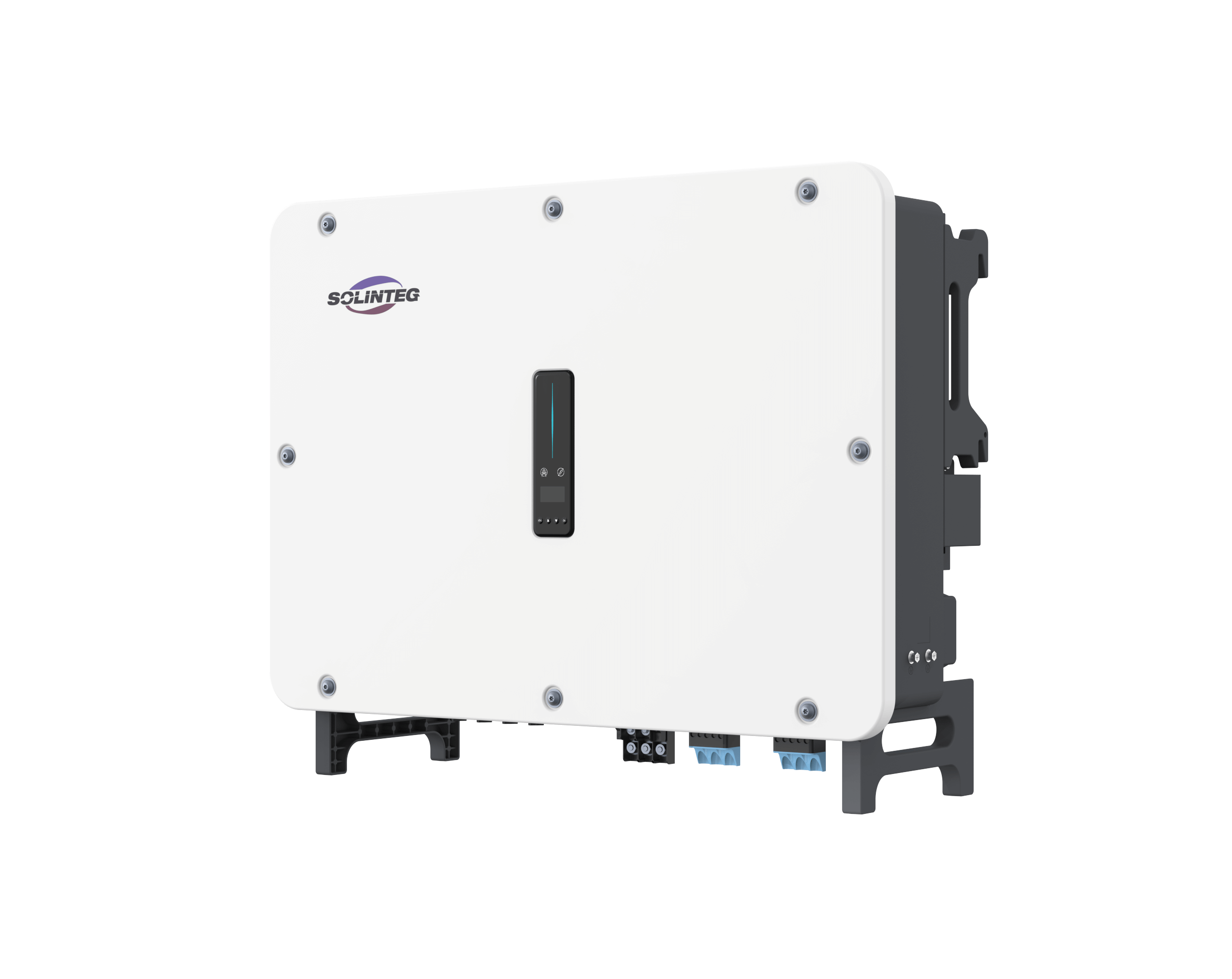

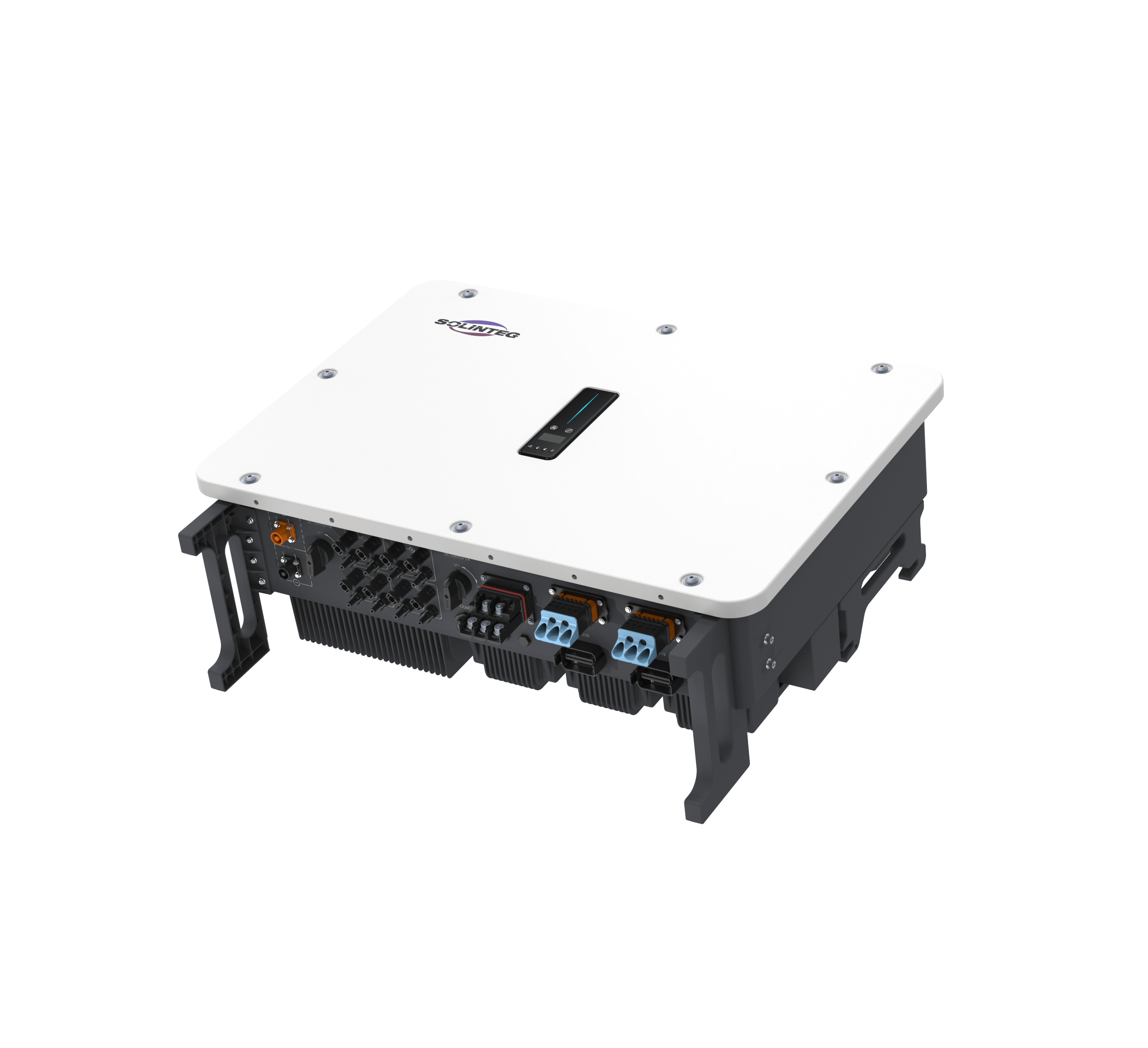

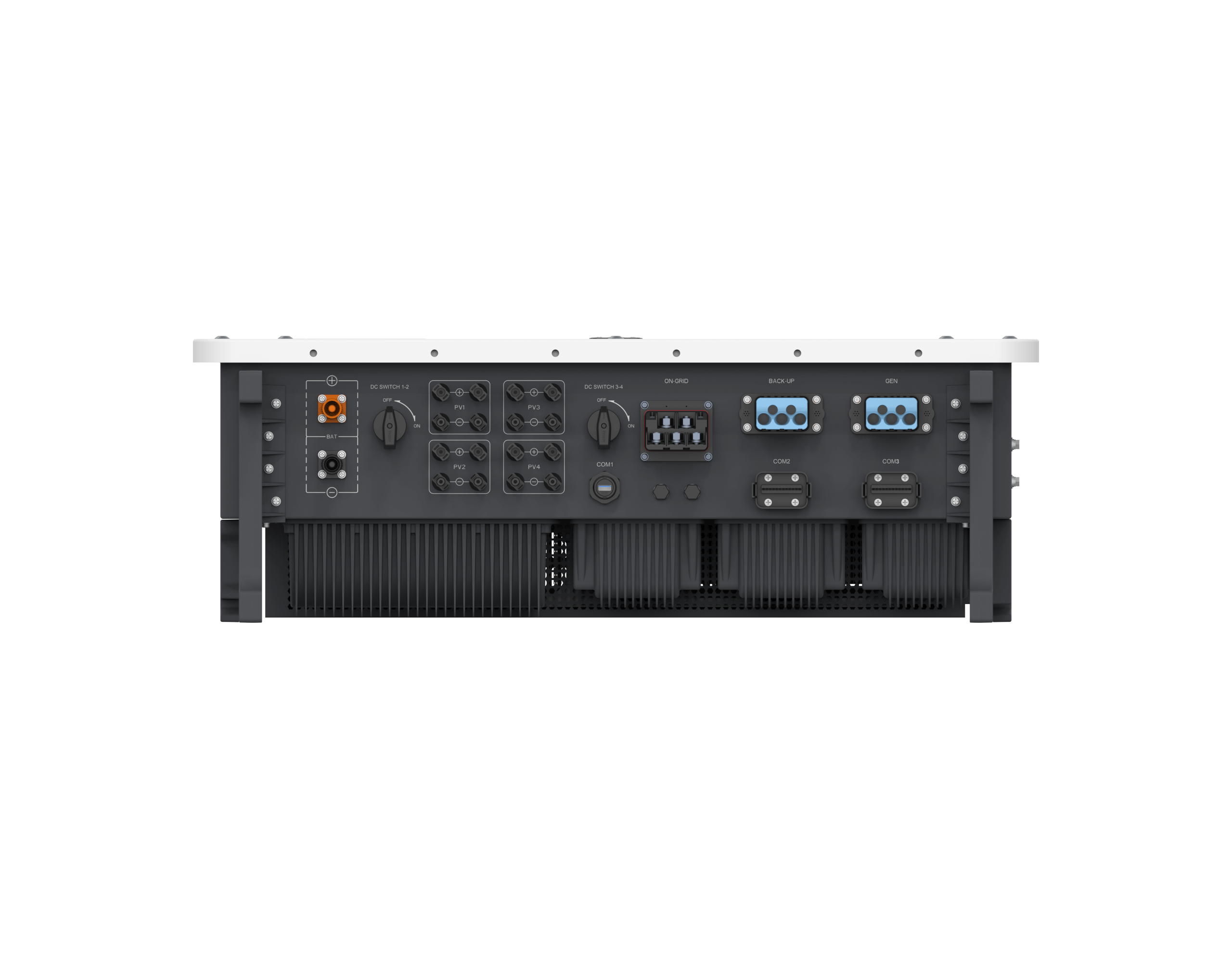

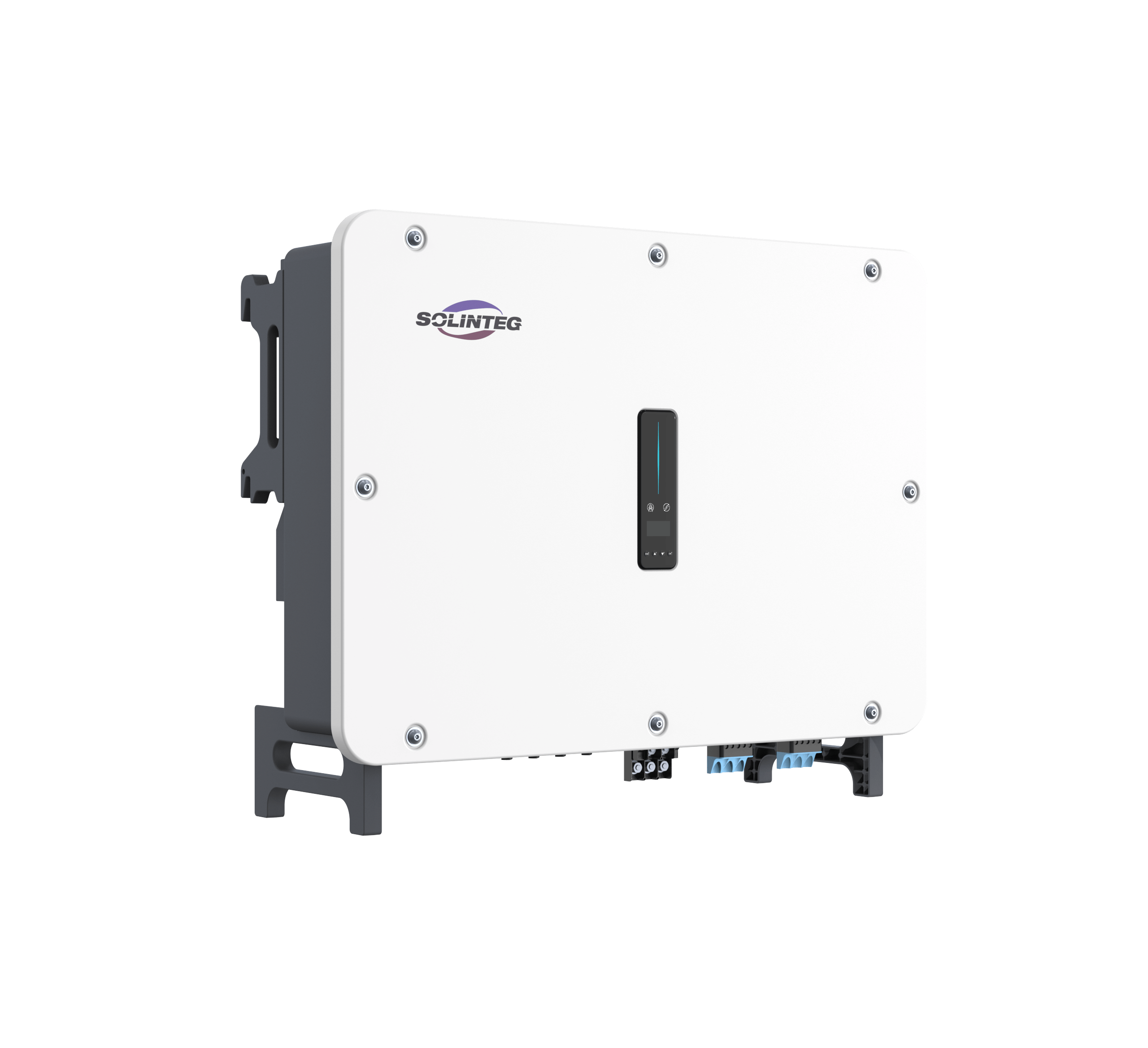

Solinteg M2HT-50K-150 Hybrid Inverter
The Solinteg M2HT-50K-150 is the most powerful model in the M2HT series and has been developed for large commercial and industrial applications. With up to 100 kWp of PV power and 50 kW of battery power, it offers maximum flexibility for modern energy systems.
Advantages:
- For large commercial and industrial projects
- Up to 100 kWp PV capacity
- 150 A charging and discharging current
- 200% DC oversizing
- High system availability through generator integration
- Support for asymmetrical loads
- Compatible with third-party EMS and BMS
Technical specifications:
- AC rated power: 50 kW
- Max. PV power: 100 kWp
- Number of MPP trackers: 4
- Max. PV input current: 40 A per MPPT
- Battery range: 150–840 V
- Charging and discharging power: 50 kW
- Max. efficiency: 97.8%
- Protection class: IP66
- Dimensions (L × W × H): 919 × 305 × 739 mm
- Weight: 89 kg
