Dyness STACK280 battery module
| Manufacturer Art. No.: | Stack 280 S51280 |
|---|---|
| Art. Nr.: | 15808 |
| Pieces per package unit: |
|
| Battery type: | LFP |
| Installation location: | Indoor |
| Usable capacity: | 13.6 kWh |
| Warranty: | 10 years |
| Communication: | CAN/RS485 |
| Commercial storage type: | Modular without inverter |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15808
Description

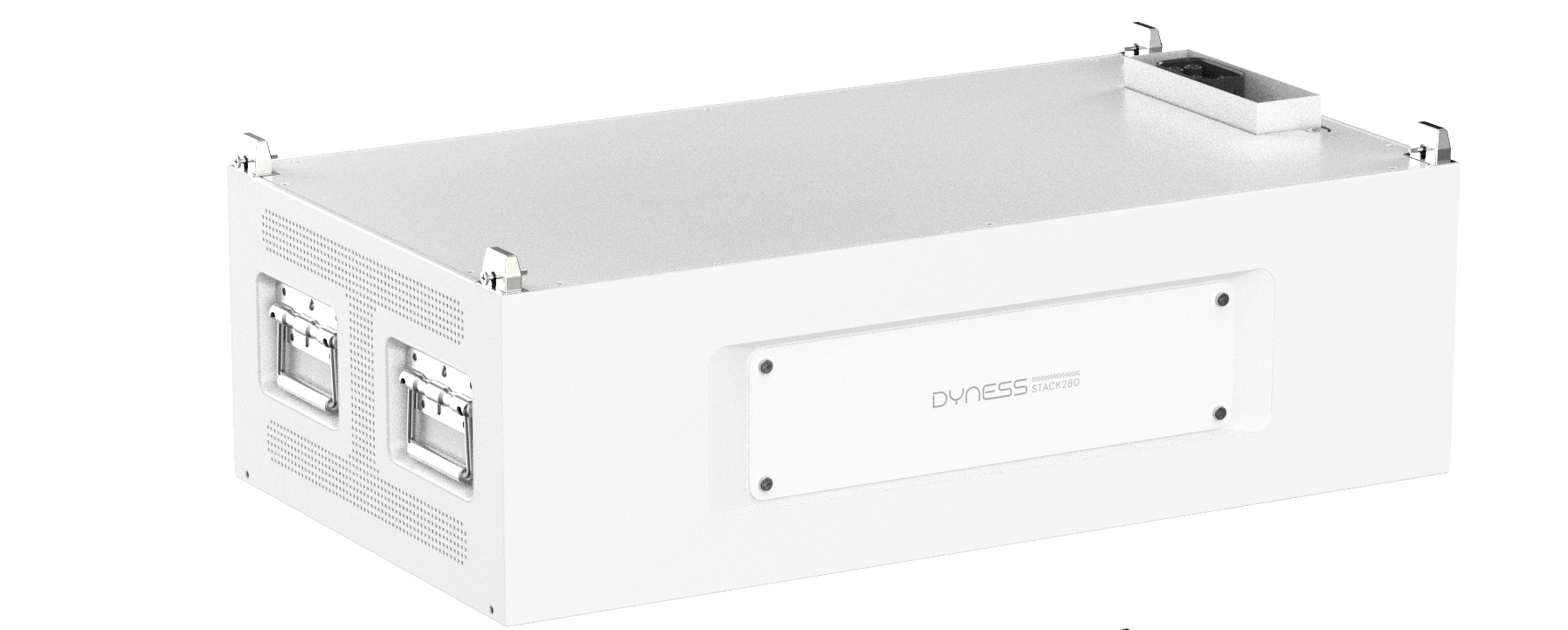

Dyness STACK280 S51280 Battery Module
The Dyness STACK280 S51280 is the battery module in the STACK280 series for commercial and industrial energy storage applications.
With a capacity of 14.3 kWh per module and a nominal capacity of 280 Ah, it forms the basis for flexible storage systems ranging from 43 kWh to 215.04 kWh per tower. The modular plug-and-play design enables easy installation and future expansion.
Smallest battery tower size: 3 battery modules (43 kWh).
Product benefits:
- 14.3 kWh storage capacity per module

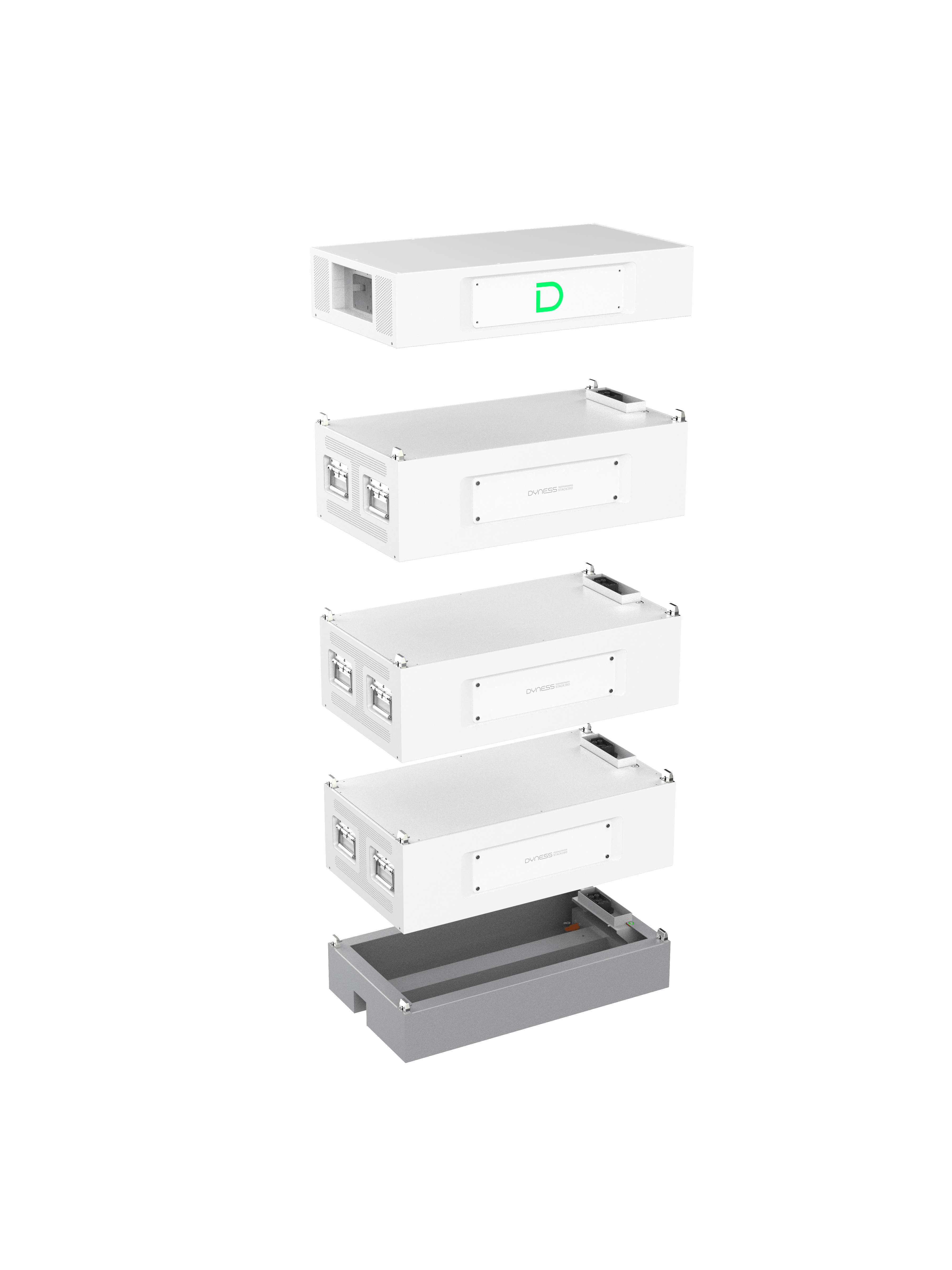

- Modular system for flexible storage sizes
- Wireless stacking design for quick installation
- Integrated aerosol fire extinguisher for increased safety
- Over 8,000 charge cycles
- 95% depth of discharge (DoD)
- Compatible with numerous hybrid inverters
- 10-year manufacturer’s warranty
Product features:
- Battery type: LiFePO4 (lithium iron phosphate)
- Storage capacity: 14.3 kWh
- Usable storage capacity: 13.6 kWh
- System capacity: 43–215.04 kWh
- Can be connected in parallel: Up to 12 towers (max. 2.58 MWh)
- Nominal voltage: 51.2 V
- Protection class: IP20
- Communication: CAN, RS485
- Weight: 110 kg
- Dimensions (L × W × H): 770 × 425 × 293 mm
- Certifications: UN38.3, CE, EMC, IEC62619
