Dyness Stack280 SBDU200 + base
| Manufacturer Art. No.: | Stack280 SBDU200 + Sockel |
|---|---|
| Art. Nr.: | 15813 |
| Pieces per package unit: |
|
| Battery type: | LFP |
| Installation location: | Indoor |
| Warranty: | 10 years |
| Communication: | CAN/RS485 |
| Commercial storage type: | Accessories |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15813
Description

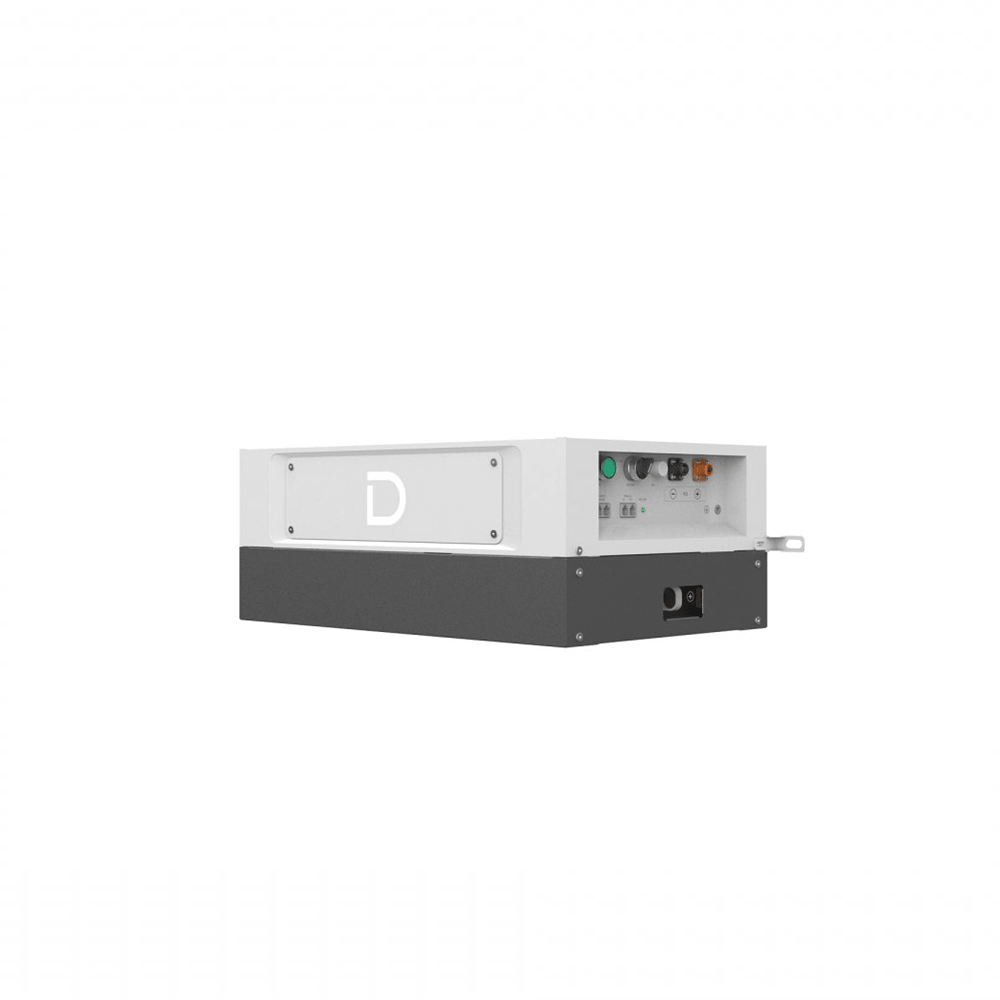

Dyness STACK280 SBDU200 including base

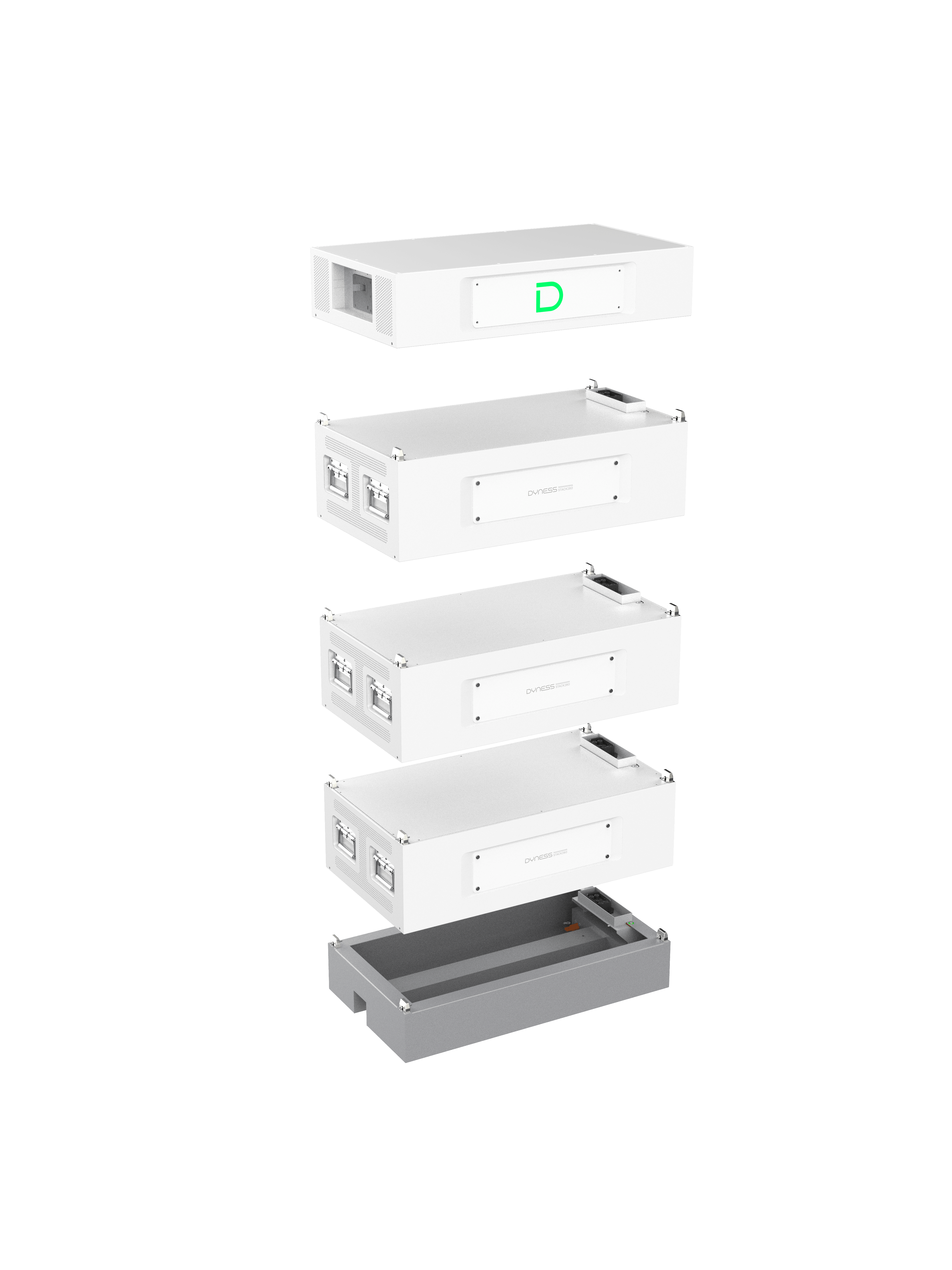

The Dyness STACK280 SBDU200 is the control and power unit of the STACK280 series and forms the basis of every storage tower. It handles communication between the battery and the Inverter, as well as power distribution within the system. The base for the secure installation of the storage system is included in the scope of delivery.
Advantages
- Central control and communication unit
- Includes base for system installation
- Supports up to 200 A continuous current
- Plug-and-play integration into the STACK280 series
- Easy expansion of existing systems
- Compatible with leading inverter manufacturers
Technical specifications
- Model: SBDU200
- Operating voltage: 134.4 – 864 V
- Maximum continuous current: 200 A
- Protection class: IP20
- Weight: 19.2 kg
- Dimensions (L × W × H): 770 × 425 × 160 mm
