Dyness Tower Pro TP11

Type of manufacturer:	Dyness Tower Pro TP11
Art. Nr.:	14115
Net capacity:	10.9 kWh
Battery type:	High volt lithium-iron-phosphate
Cycles:	8000
Warranty:	10 Jahre
Solar battery type:	High voltage battery

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 14115

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 14115

Recommended accessories
- GoodWe ET Plus 16A – GW10KN-ET

  Art. Nr.: 8252

  GoodWe

  Available from stock

  { "id": "10906d35163a5c5abd1d1de9fcb3f705", "item_brand": "", "item_name": "GoodWe ET Plus 16A – GW10KN-ET", "item_id": "8252", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "10906d35163a5c5abd1d1de9fcb3f705" } }
- Kostal Plenticore G3 M 8.5-12.5 kW

  Art. Nr.: 8095

  Kostal

  Available from stock

  { "id": "a2ad918f496a56a38413878b2fc63401", "item_brand": "", "item_name": "Kostal Plenticore G3 M 8.5-12.5 kW", "item_id": "8095", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a2ad918f496a56a38413878b2fc63401" } }
- Kostal Plenticore G3 L 15-20 kW

  Art. Nr.: 8112

  Kostal

  Available from stock

  { "id": "8056b51f7dd45b02929a8af6457c4257", "item_brand": "", "item_name": "Kostal Plenticore G3 L 15-20 kW", "item_id": "8112", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8056b51f7dd45b02929a8af6457c4257" } }
- GoodWe ET Plus 16A – GW8KN-ET

  Art. Nr.: 8251

  GoodWe

  Available from stock

  { "id": "487a5e402e6057b489f775d78c1e9e54", "item_brand": "", "item_name": "GoodWe ET Plus 16A – GW8KN-ET", "item_id": "8251", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "487a5e402e6057b489f775d78c1e9e54" } }

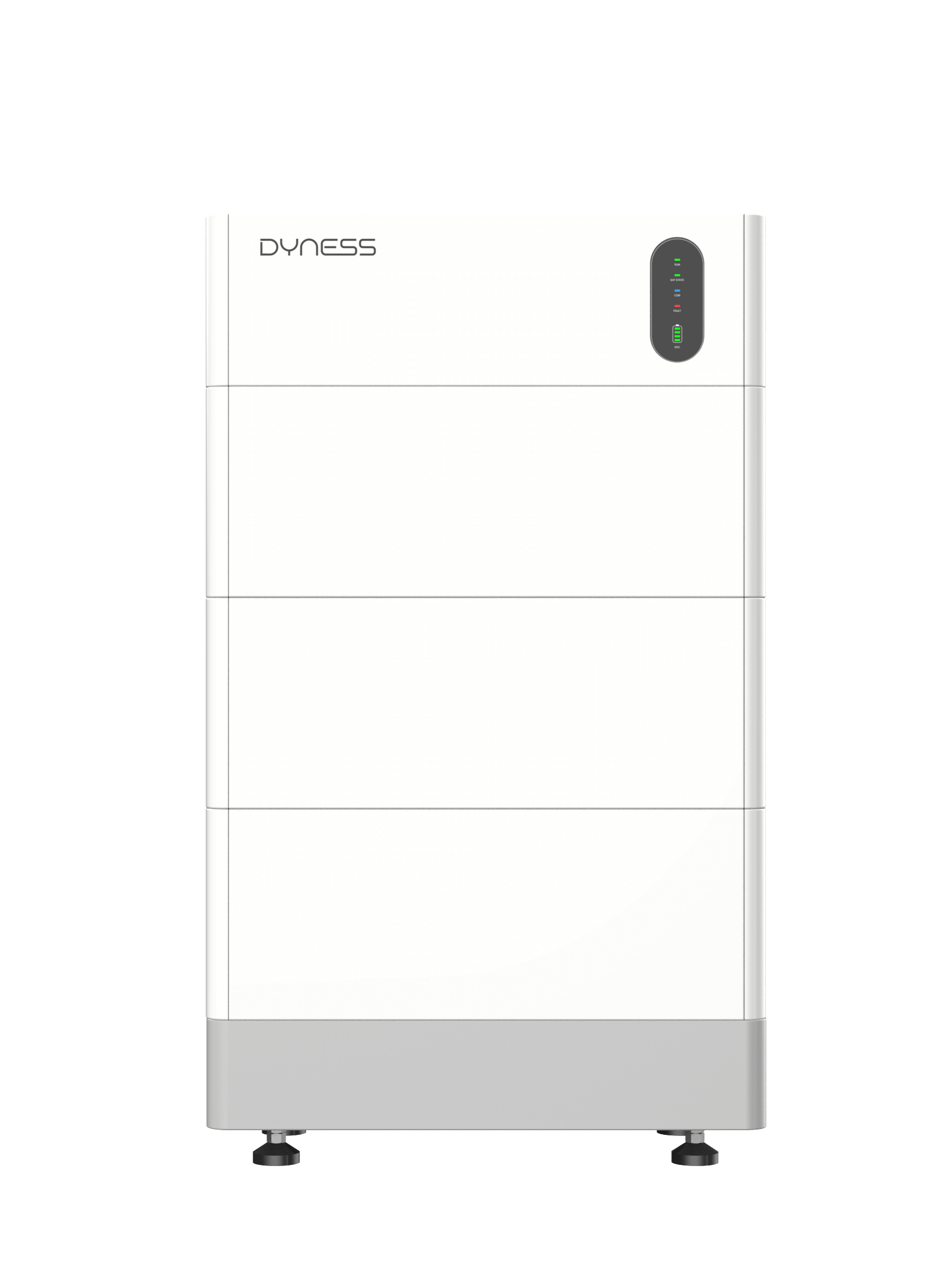

Dyness Tower Pro TP11 incl. BMS with 10.94 kWh usable capacity

The Dyness Tower Pro TP11 is a modular high-voltage energy storage system based on lithium iron phosphate for domestic and small-scale commercial applications. The system consists of 3 stackable battery modules and a control unit (BCU). The capacity is 11.52kWh (usable energy 10.944kWh) and can be expanded to up to 276.48kWh by connecting units in parallel. The innovative plug-and-play design enables particularly quick and easy installation without internal cabling. The integrated heating and fire protection functions, as well as a high safety certification, ensure reliable operation even under demanding conditions.

Product benefits:

Flexible expansion: Up to 12 towers in parallel operation up to 276.48 kWh
Ultra-safe: Intelligent fire suppression system, reacts within 5 seconds
Integrated heating function: Operating temperature range: -20°C to 55°C, polyimide film heating
Easy installation: Stackable modules, plug-and-play, installation in just 15 minutes
1C discharge: Simultaneous power supply to multiple loads, no need to worry about power cuts
OTA upgrade: Remote maintenance and updates possible

Product features:

Battery capacity: 11.52 kWh
Usable energy: 10.944 kWh
Battery module type: Lithium iron phosphate (LiFePO4)
Number of battery modules: 3
Nominal voltage: 288V (Operating voltage: 252–324V)
Nominal capacity: 40 Ah
Max. continuous charge/discharge power: 11.52 kW (1C)
Recommended depth of discharge (DOD): 95%
Dimensions (W/H/D): 587 x 310 x 1009 mm
Weight: 150 kg
Temperature range (charging/discharging): -20°C to 55°C
Protection class: IP55
Cycle life: ≥8,000 cycles (at 0.2C, 25°C, 95% DOD)
Service life: 15 years
Warranty: 10 years
Communication: CAN/RS485/RS232
Fire protection function: Aerosol fire suppression
