Dyness Tower Pro TP15
| Type of manufacturer: | Dyness Tower Pro TP15 |
|---|---|
| Art. Nr.: | 14117 |
| Net capacity: | 14.592 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Cycles: | 8000 |
| Warranty: | 10 Jahre |
| Solar battery type: | High voltage battery |
Prices are only visible to business customers upon successful registration.
- TIP
Available from stock
Product number:
14117
-
-
{ "id": "10906d35163a5c5abd1d1de9fcb3f705", "item_brand": "", "item_name": "GoodWe ET Plus 16A – GW10KN-ET", "item_id": "8252", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "10906d35163a5c5abd1d1de9fcb3f705" } } -
{ "id": "a2ad918f496a56a38413878b2fc63401", "item_brand": "", "item_name": "Kostal Plenticore G3 M 8.5-12.5 kW", "item_id": "8095", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a2ad918f496a56a38413878b2fc63401" } } -
{ "id": "8056b51f7dd45b02929a8af6457c4257", "item_brand": "", "item_name": "Kostal Plenticore G3 L 15-20 kW", "item_id": "8112", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8056b51f7dd45b02929a8af6457c4257" } } -
{ "id": "487a5e402e6057b489f775d78c1e9e54", "item_brand": "", "item_name": "GoodWe ET Plus 16A – GW8KN-ET", "item_id": "8251", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "487a5e402e6057b489f775d78c1e9e54" } }
-
Description

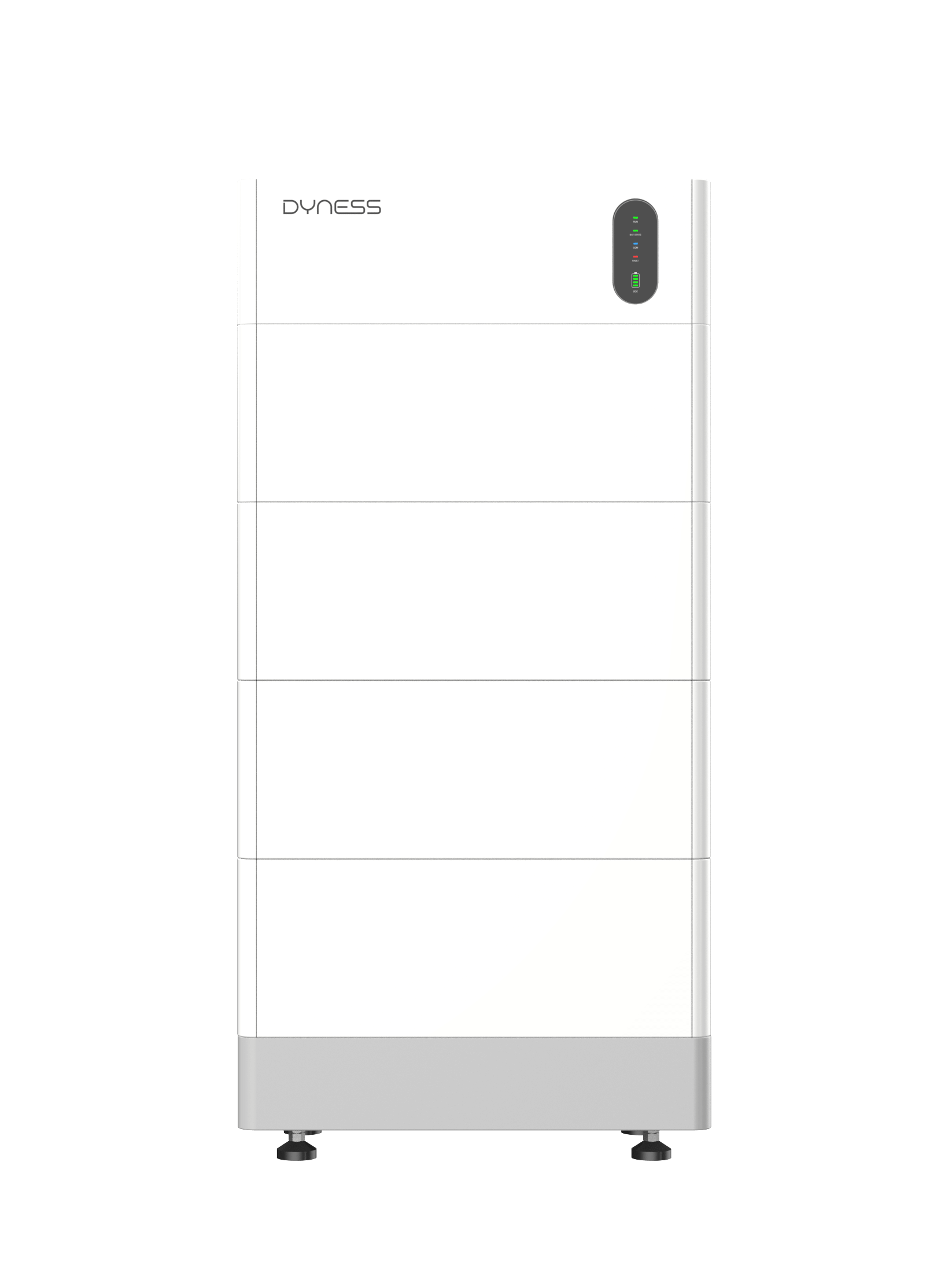

Dyness Tower Pro TP15 incl. BMS with 14.59 kWh usable capacity
The Dyness Tower Pro TP15 is a modular high-voltage lithium iron phosphate energy storage system for domestic and commercial applications. The system consists of 4 stackable battery modules and a central control unit (BCU). The total capacity is 15.36 kWh (usable energy 14.592 kWh) and can be expanded to up to 276.48 kWh by connecting modules in parallel. Installation and maintenance are quick and straightforward thanks to the plug-and-play design – all modules are simply stacked, with no internal cabling required.
Product benefits:
- Flexible expansion: Up to 12 towers in parallel operation up to 276.48 kWh
- Ultra-safe: Intelligent fire extinguishing system, reacts within 5 seconds
- Integrated heating function: Operating temperature range: -20°C to 55°C, polyimide film heating
- Easy installation: Stackable modules, plug-and-play, installation in just 15 minutes
- 1C discharge: Simultaneous power supply to multiple loads, no need to worry about power cuts
- OTA upgrade: Remote maintenance and updates possible
Product features:
- Battery capacity: 15.36 kWh
- Usable energy: 14.592 kWh
- Battery module type: Lithium iron phosphate (LiFePO4)
- Number of battery modules: 4
- Nominal voltage: 384 V (operating voltage 336–432 V)
- Nominal capacity: 40 Ah
- Max. continuous charge/discharge power: 15.36 kW (1C)
- Recommended depth of discharge (DOD): 95%
- Dimensions (W/D/H): 587 x 310 x 1230 mm
- Weight: 190.5 kg
- Temperature range (charging/discharging): -20°C to 55°C
- Cycle life: ≥8,000 cycles (at 0.2C, 25°C, 95% DOD)
- Service life: 15 years
- Warranty: 10 years
- Communication: CAN/RS485/RS232
- Protection class: IP55
- Heating function: Integrated polyimide film heating
- Fire protection: Aerosol fire suppression
- OTA upgrade: Remote maintenance possible
-
