Dyness Tower Pro TP19

Type of manufacturer:	Dyness Tower Pro TP19
Art. Nr.:	14118
Net capacity:	18.24 kWh
Battery type:	High volt lithium-iron-phosphate
Cycles:	8000
Warranty:	10 Jahre
Solar battery type:	High voltage battery

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 14118

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 14118

Recommended accessories
- GoodWe ET Plus 16A – GW10KN-ET

  Art. Nr.: 8252

  GoodWe

  Available from stock

  { "id": "10906d35163a5c5abd1d1de9fcb3f705", "item_brand": "", "item_name": "GoodWe ET Plus 16A – GW10KN-ET", "item_id": "8252", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "10906d35163a5c5abd1d1de9fcb3f705" } }
- Kostal Plenticore G3 M 8.5-12.5 kW

  Art. Nr.: 8095

  Kostal

  Available from stock

  { "id": "a2ad918f496a56a38413878b2fc63401", "item_brand": "", "item_name": "Kostal Plenticore G3 M 8.5-12.5 kW", "item_id": "8095", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a2ad918f496a56a38413878b2fc63401" } }
- Kostal Plenticore G3 L 15-20 kW

  Art. Nr.: 8112

  Kostal

  Available from stock

  { "id": "8056b51f7dd45b02929a8af6457c4257", "item_brand": "", "item_name": "Kostal Plenticore G3 L 15-20 kW", "item_id": "8112", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8056b51f7dd45b02929a8af6457c4257" } }
- GoodWe ET Plus 16A – GW8KN-ET

  Art. Nr.: 8251

  GoodWe

  Available from stock

  { "id": "487a5e402e6057b489f775d78c1e9e54", "item_brand": "", "item_name": "GoodWe ET Plus 16A – GW8KN-ET", "item_id": "8251", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "487a5e402e6057b489f775d78c1e9e54" } }

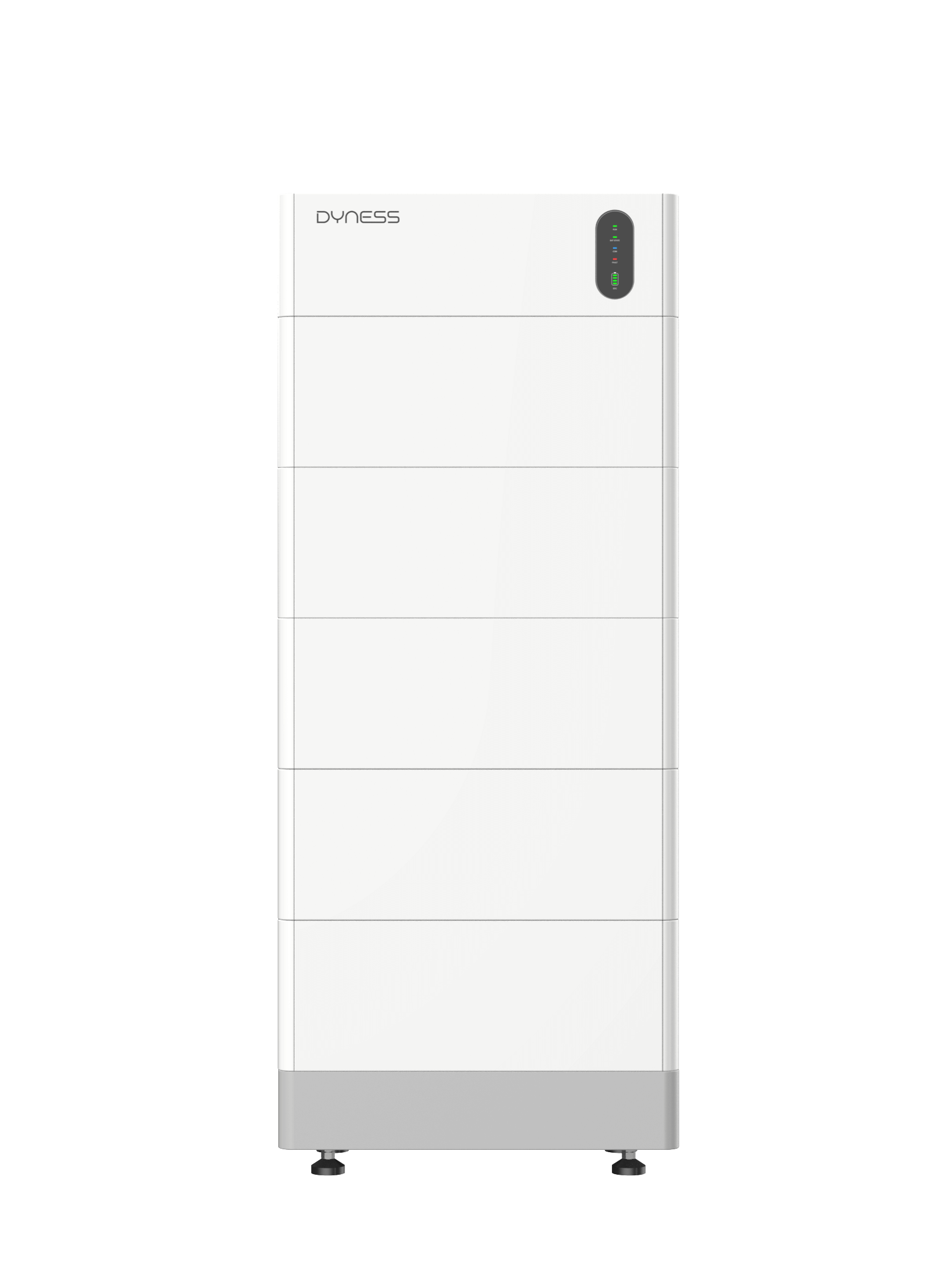

Dyness Tower Pro TP19 incl. BMS with 18.24 kWh usable capacity

The Dyness Tower Pro TP19 is a modular high-voltage lithium iron phosphate energy storage system for domestic and commercial applications. The system consists of 5 stackable battery modules and a central control unit (BCU). The total capacity is 19.2 kWh (usable energy 18.24 kWh) and can be expanded to up to 276.48 kWh by connecting modules in parallel. Thanks to the plug-and-play design, installation and maintenance are quick and straightforward, as all modules are simply stacked without the need for internal cabling.

Product benefits:

Flexible expansion: Up to 12 towers in parallel operation up to 276.48 kWh
Ultra-safe: Intelligent fire suppression system, reacts within 5 seconds
Integrated heating function: Operating temperature range: -20°C to 55°C, polyimide film heating
Easy installation: Stackable modules, plug-and-play, installation in just 15 minutes
1C discharge: Simultaneous power supply to multiple loads, no need to worry about power cuts
OTA upgrade: Remote maintenance and updates possible

Product features:

Battery capacity: 19.2 kWh
Usable energy: 18.24 kWh
Battery module type: Lithium iron phosphate (LiFePO4)
Number of battery modules: 5
Nominal voltage: 480 V (operating voltage 420–540 V)
Nominal capacity: 40 Ah
Max. continuous charge/discharge power: 19.2 kW (1C)
Recommended depth of discharge (DOD): 95%
Dimensions (W/D/H): 587 x 310 x 1451 mm
Weight: 231 kg
Temperature range (charging/discharging): -20°C to 55°C
Cycle life: ≥8,000 cycles (at 0.2C, 25°C, 95% DOD)
Service life: 15 years
Warranty: 10 years
Communication: CAN/RS485/RS232 (where compatible)
Protection class: IP55
Heating function: Integrated polyimide film heating
Fire protection: Aerosol fire suppression
OTA upgrade: Remote maintenance possible
Expansion: Up to 12 Tower Pro units in parallel operation
