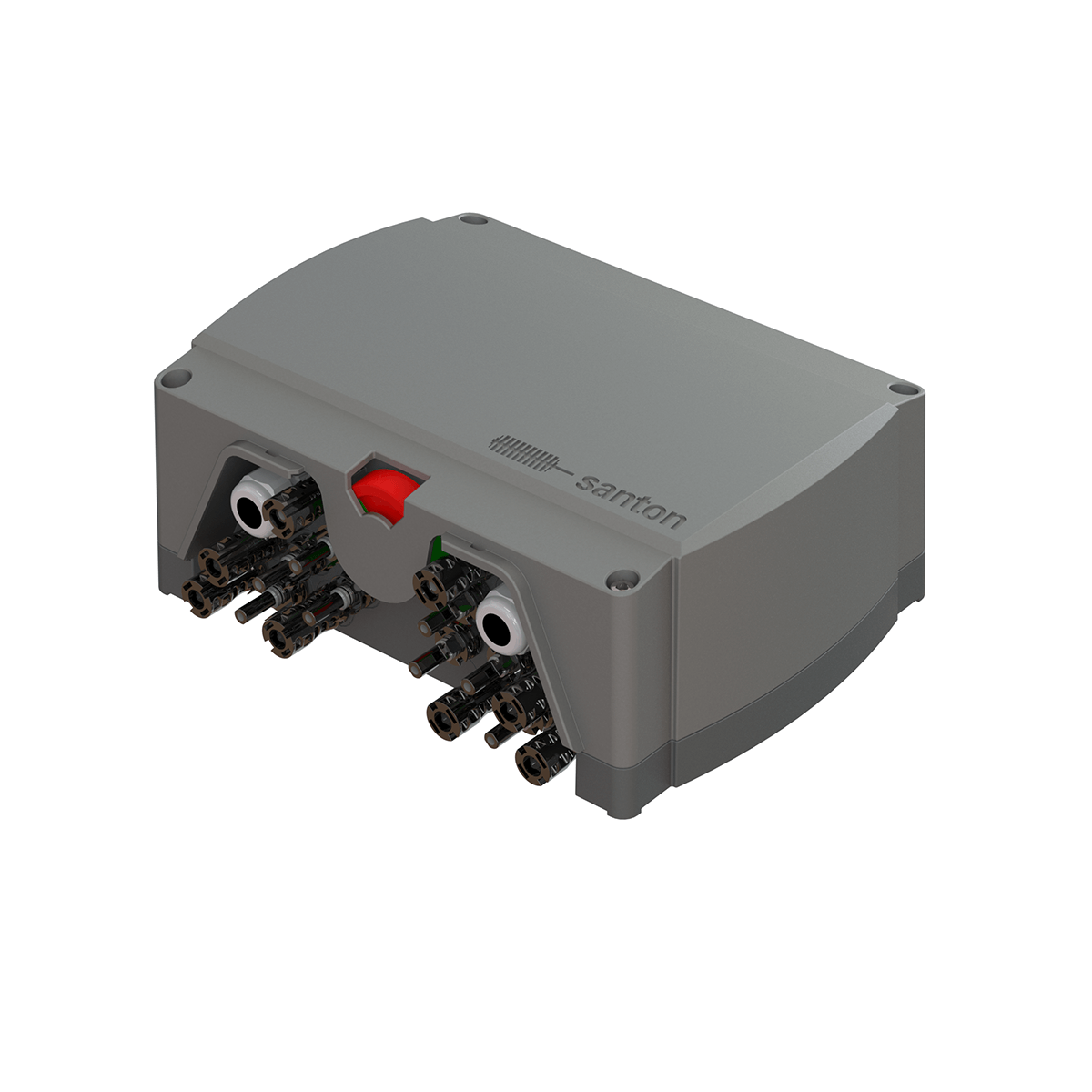

Firefighter safety switch Santon for 4 MPP, 40A, MC4

Cergen

Manufacturer Art. No.:	PFSHP-18-MC4
Art. Nr.:	9505
Pieces per package unit:	1 per carton 100 per pallet
Accessory type:	Firefighter breaker

Prices are only visible to business customers upon successful registration.

Remaining quantity

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Successor product available

A successor for this product is available.

Santon by Cergen FFS fire protection switch for 4 MPPT

Art. Nr.: 16264

Cergen
{ "id": "3ebfae05e67f5c9480611882e4101b59", "item_brand": "", "item_name": "Santon by Cergen FFS fire protection switch for 4 MPPT", "item_id": "16264", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3ebfae05e67f5c9480611882e4101b59" } }

Product number: 9505

Prices are only visible to business customers upon successful registration.

Remaining quantity

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Successor product available

A successor for this product is available.

Santon by Cergen FFS fire protection switch for 4 MPPT

Art. Nr.: 16264

Cergen
{ "id": "3ebfae05e67f5c9480611882e4101b59", "item_brand": "", "item_name": "Santon by Cergen FFS fire protection switch for 4 MPPT", "item_id": "16264", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3ebfae05e67f5c9480611882e4101b59" } }

Product number: 9505

Tech tip

An emergency stop switch is still required for remote triggering. When installing it, pay attention to accessibility and the risk of unauthorized shutdown.

Safe isolation of DC circuits with the Santon fire protection switch, which complies with the new standard

This item has been discontinued; you can find the new version at a better price here:
Santon by Cergen FFS fire protection switch for 4 MPPT | 16264

Manufacturer’s designation: PFSHP-18-MC4

The Santon fire protection switch safely disconnects all connected DC cables in the event of a mains failure or remote tripping. The connection from the switch to the Inverter is therefore de-energised, allowing fire crews to extinguish fires in this area without risk.

Advantages of the Santon fire protection switch

Complies with the new standard
Compact design with IP65 rating
Motor-driven switch
Shutdown in the event of a mains failure is safeguarded by capacitors
Automatic re-engagement upon return of mains power

Product features: Santon fire service circuit breaker for 4 MPP, 40A, MC4

Up to 1000 V DC; up to 40 A possible
Connection for 4 separate strings
in accordance with application standard VDE-AR-E2100-712 (version 2018-12) and OVER guideline R11-1 (version 2022-05-01)
Classifications in accordance with IEC EN 60947-3:2009/A1:2012/C1:2013/A2:2015 Cat PV-1 based on the connection of positive and negative poles
Dimensions: 300 x 231 x 120 mm (L x W x H)
