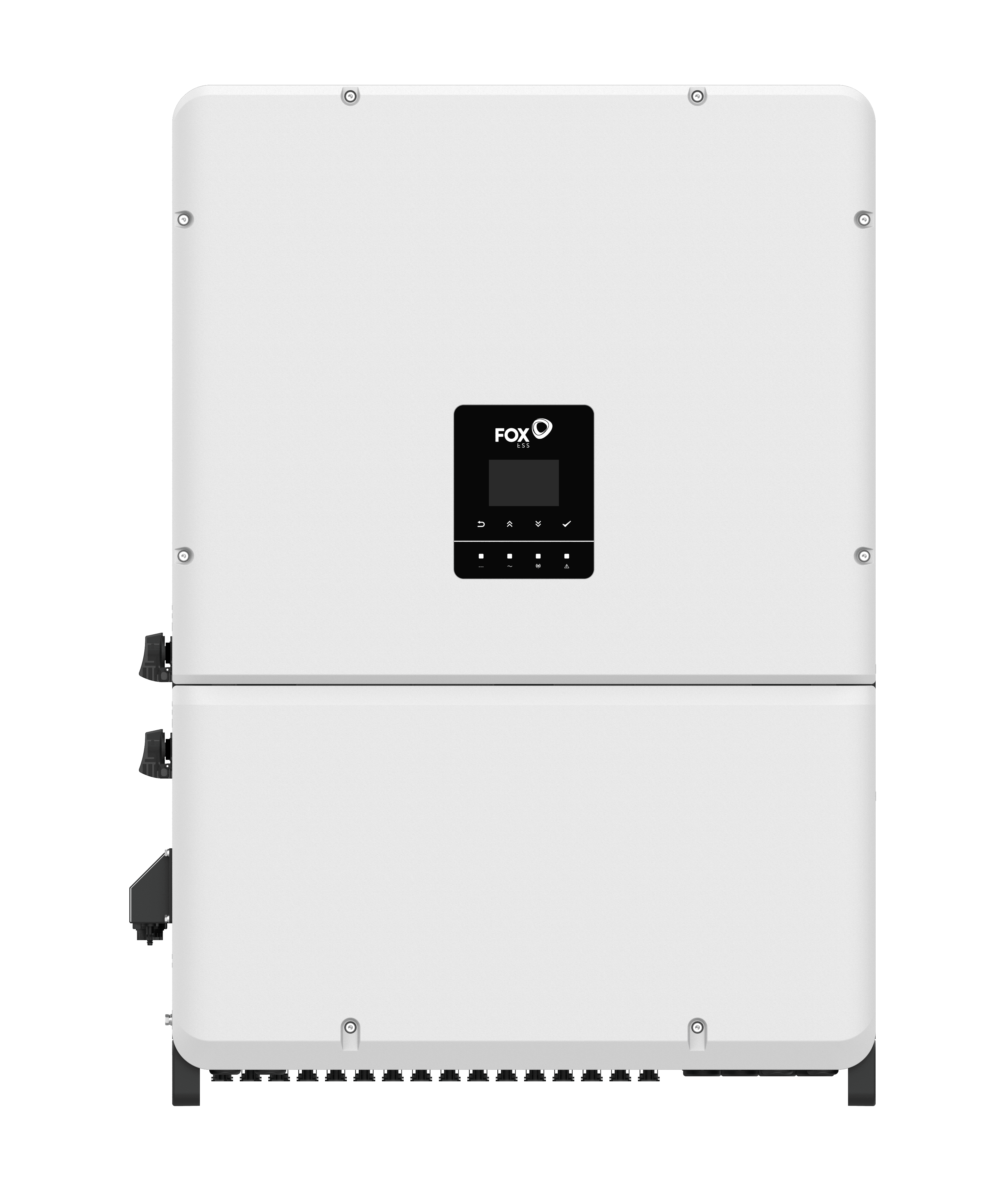

Fox ESS H3-125-Plus Hybrid Inverter, 125 kW
| Manufacturer Art. No.: | H3-125-Plus |
|---|---|
| Art. Nr.: | 16512 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| MPP-Tracker: | 8 |
| AC power: | 125 kW |
| Warranty: | 5 years |
| Communication: | USB, RS485, Bluetooth, WLAN+LAN, 4G (optional), CAN |
| MPP voltage range: | 180 - 950 Volt |
| DC input power: | 250000 Watt |
| Backup power capable: | Full Backup |
| Model series: | H3 Plus |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16512
-
-
{ "id": "0ff60ba7d3555b33bf963266040a061b", "item_brand": "", "item_name": "Fox ESS DQ6.6 – Head unit", "item_id": "15998", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0ff60ba7d3555b33bf963266040a061b" } } -

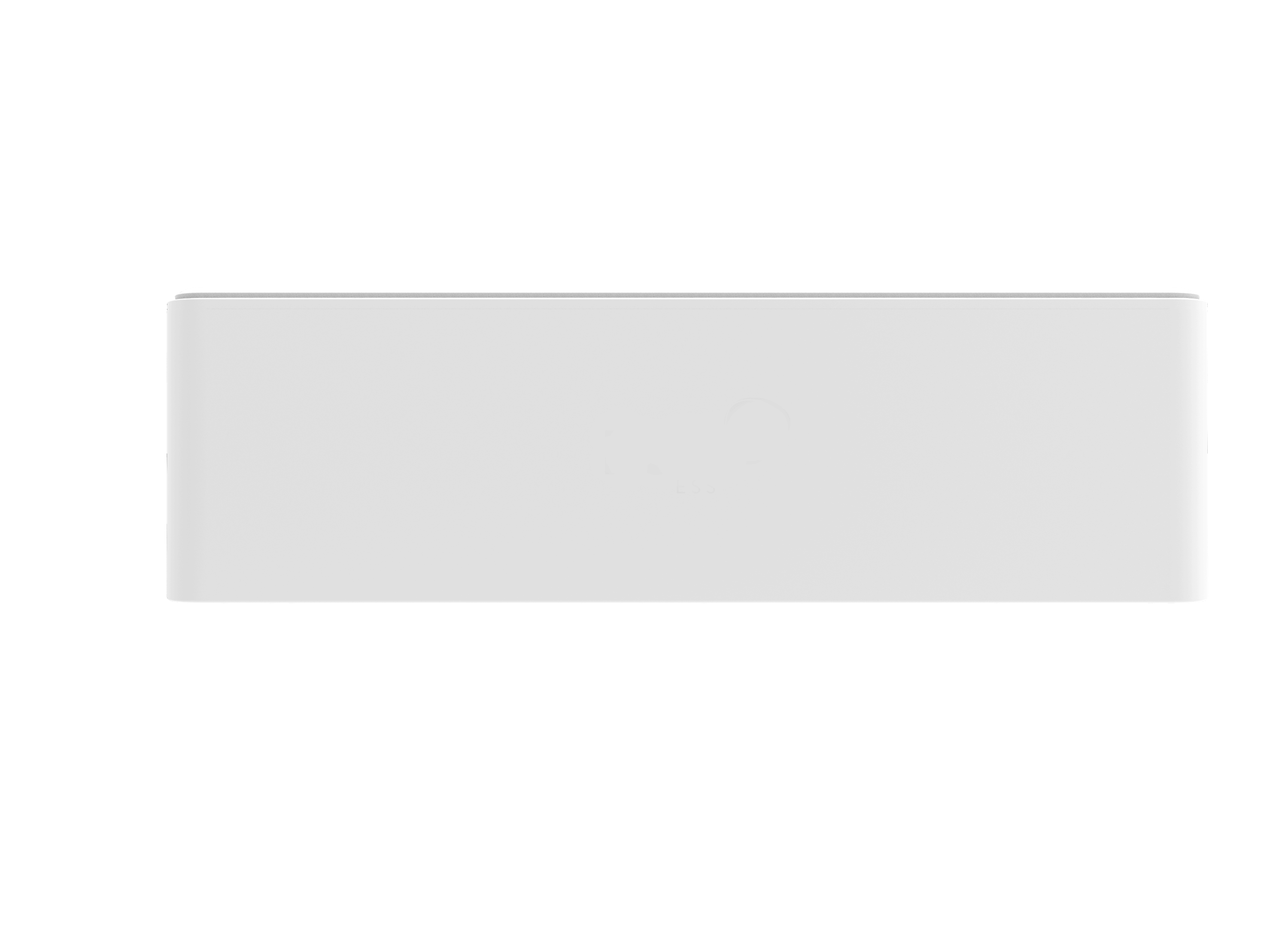

{ "id": "d8556e4c4a235fe99f0b3dc0fc8c90b5", "item_brand": "", "item_name": "Fox ESS DQ6.6 – Battery module", "item_id": "15999", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d8556e4c4a235fe99f0b3dc0fc8c90b5" } }
-
Description

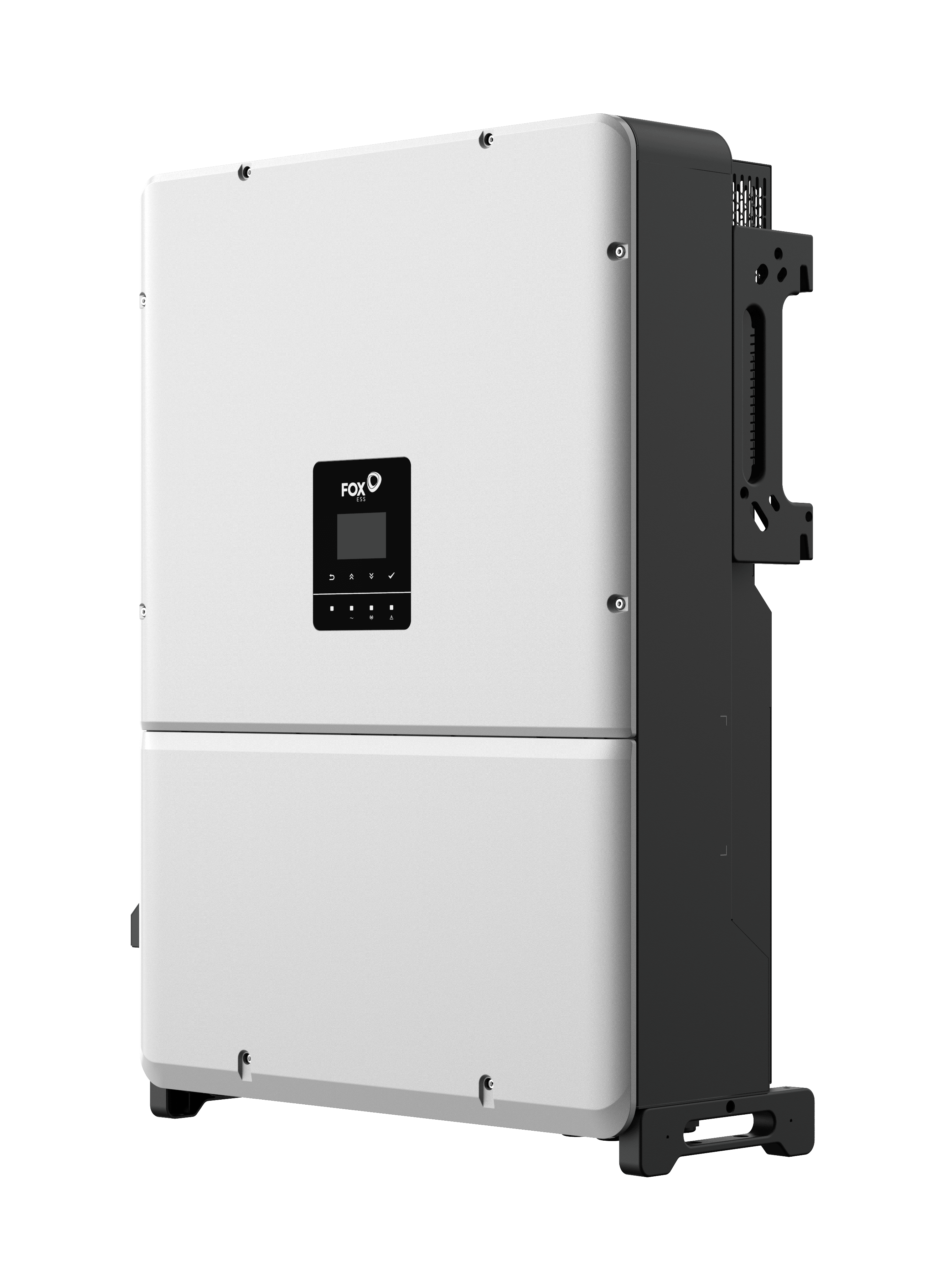

Fox ESS H3-125-Plus Hybrid Inverter 125 kW
The H3 Plus series from Fox ESS is a range of three-phase hybrid inverters for commercial applications from 50 to 125 kW. It combines PV, Battery storage system and emergency power supply in a single unit.
The H3-125-Plus offers a rated AC power output of 125 kW, 8 MPP trackers and three battery inputs, each with a charge/discharge current of up to 80 A. The EPS function switches to emergency power in under 10 ms.
Product benefits
- Rated AC power of 125 kW (max. 137.5 kVA)
- 8 MPP trackers, each with 2 strings, max. 40 A per MPPT
- Up to 250 kWp of PV capacity can be connected
- Emergency power supply (EPS) with a switchover time of less than 10 ms and 155 kVA peak power (10 s)
- 100 per cent unbalanced load capability at the output
- Generator input and DC link pre-configured for EV chargers (20–50 kW)
- Robust outdoor design (IP65), operating temperature range from -30 to +60 °C
Product features
- Rated AC power: 125 kW
- Max. AC output power: 137.5 kVA
- Max. PV input power: 250 kW
- MPP trackers: 8
- String connections per MPPT: 2
- MPPT voltage range: 180–850 V (input voltage 180–950 V)
- Battery type: LFP, voltage range 180–950 V
- Battery inputs: 3 (max. 240 A total charge/discharge current)
- Max. efficiency: 98.5%, European efficiency: 98.1%
- Protection class: IP65
- Communication: USB, RS485, Bluetooth, Wi-Fi + LAN, 4G (optional), CAN
- Dimensions (W x H x D): 730 x 1060 x 305 mm
- Weight: 120 kg
- Warranty: 5 years standard (from installation); extended by a further 5 years to 10 years upon registration via the Fox ESS warranty portal (FoxPro) within 36 months of commissioning
