Fronius Primo GEN24 3.0 SC
| Manufacturer Art. No.: | 4,210,250 |
|---|---|
| Art. Nr.: | 16711 |
| Pieces per package unit: |
|
| Phases: | 1 |
| Inverter type: | PV inverter |
| MPP-Tracker: | 2 |
| AC power: | 4 kW |
| Warranty: | 10 years |
| Communication: | WLAN, LAN, Modbus (TCP/RTU), Fronius Solar.web, API (JSON) |
| MPP voltage range: | 65 - 530 Volt |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16711
-
-
{ "id": "096b1575bd825a5a81efabaae77a98ac", "item_brand": "", "item_name": "Fronius Smart Meter TS 100A-1 direct, 1-phase", "item_id": "5533", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "096b1575bd825a5a81efabaae77a98ac" } } -
{ "id": "0a3c4884ea1d577fa6dcb62739954b37", "item_brand": "", "item_name": "Fronius Smart Meter TS 65A-3 direct, 3-phase", "item_id": "5532", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0a3c4884ea1d577fa6dcb62739954b37" } } -
{ "id": "dedae572784457549d5237ee444b0470", "item_brand": "", "item_name": "Fronius Wattpilot Flex Home 11 C6", "item_id": "13143", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "dedae572784457549d5237ee444b0470" } } -
{ "id": "e955cbc36dd35f43ada038f34a809371", "item_brand": "", "item_name": "Fronius Ohmpilot heating element control", "item_id": "3041", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e955cbc36dd35f43ada038f34a809371" } }
-
Description

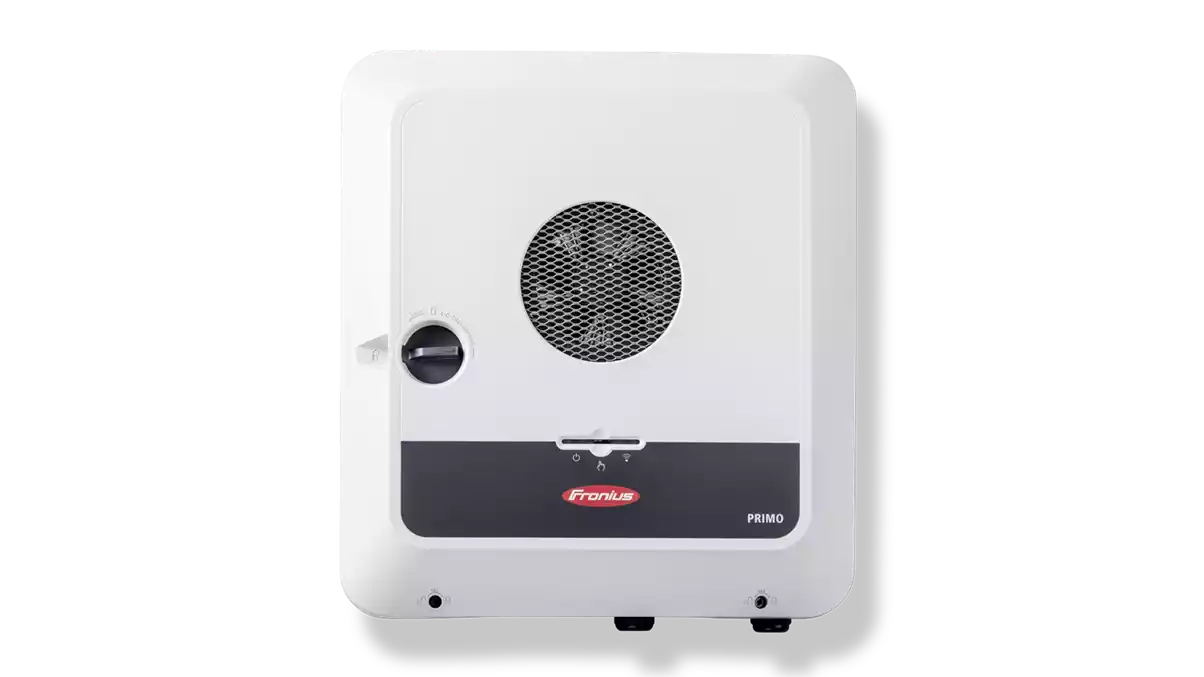

Fronius Primo GEN24 3.0 SC – The compact grid-connected inverter with PV Point
The Fronius Primo GEN24 3.0 SC feeds 3 kW of single-phase power into the grid – it’s quiet, compact and comes with everything you need for a neat installation: a data logger, web server, emergency shutdown (WSD) and arc detection (Arc Guard) are all integrated. Two MPP trackers with a wide voltage range (65–600 V) ensure flexible system design, even on east-west-facing roofs or in partially shaded conditions. With IP 66 rating and active cooling, it is suitable for both indoor and outdoor installation. The PV Point (Comfort), with up to 3,000 VA, provides backup power in the event of a grid failure without the need for a battery.
Product advantages of the Primo GEN24 3.0 SC
- Emergency power without a storage system: PV Point (Comfort) with up to 3,000 VA and a switchover time of < 15 s
- Two MPP trackers (22 A / 16 A) for flexible string configuration
- PV generator output up to 4,500 Wp – up to 150% oversizing
- Integrated data logger with web server: system monitoring via Fronius Solar.web, Modbus TCP SunSpec and Solar API (JSON)
- Arc Guard (arc detection), DC isolator, insulation monitoring and reverse polarity protection integrated
- Push-in spring-loaded terminals for DC and AC: quick installation without changing tools
- Quiet: < 42 dB(A) – unobtrusive even when installed on a residential property
- Connection for district heating/cooling control receiver and energy management via 6 digital inputs/outputs
Product features of the Primo GEN24 3.0 SC
- AC rated power: 3,000 W (3,000 VA), single-phase 220/230 V
- Max. PV generator power: 4,500 Wp
- Maximum efficiency: 97.7 per cent, European efficiency: 96.7 per cent
- 2 MPP trackers, DC input voltage 65–600 V, MPP range at rated power 190–480 V
- Max. input current: 22 A (MPPT1) / 16 A (MPPT2), max. short-circuit current: 44 A / 32 A
- Emergency power: PV Point (Comfort) 3,000 VA, switchover time < 15 s
- Protection rating: IP 66, protection class 1
- Interfaces: Wi-Fi, 2 × Ethernet LAN, 2 × RS485 (Modbus RTU SunSpec), 6 digital inputs/outputs, WSD
- Ambient temperature: −40 to +60 °C
- Dimensions (H × W × D): 530 × 474 × 165 mm
- Weight: 15.2 kg
- Warranty: 2 years (extended to 10 years upon online registration via Fronius Solar.web)
The Fronius Primo GEN24 3.0 SC does not have a battery connection. For energy storage and full-backup emergency power, you will need the Plus version (Fronius Primo GEN24 3.0 Plus SC).
-
