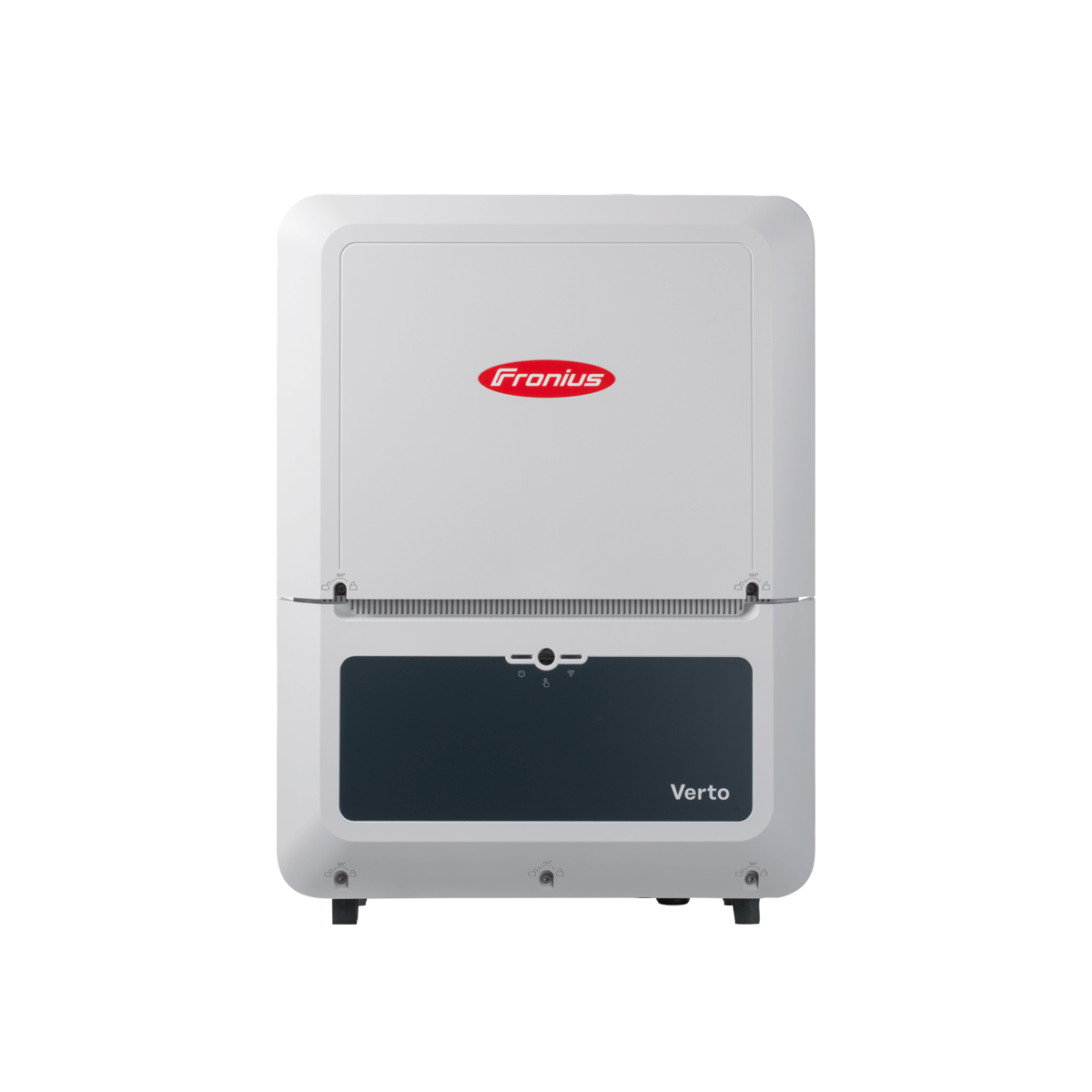

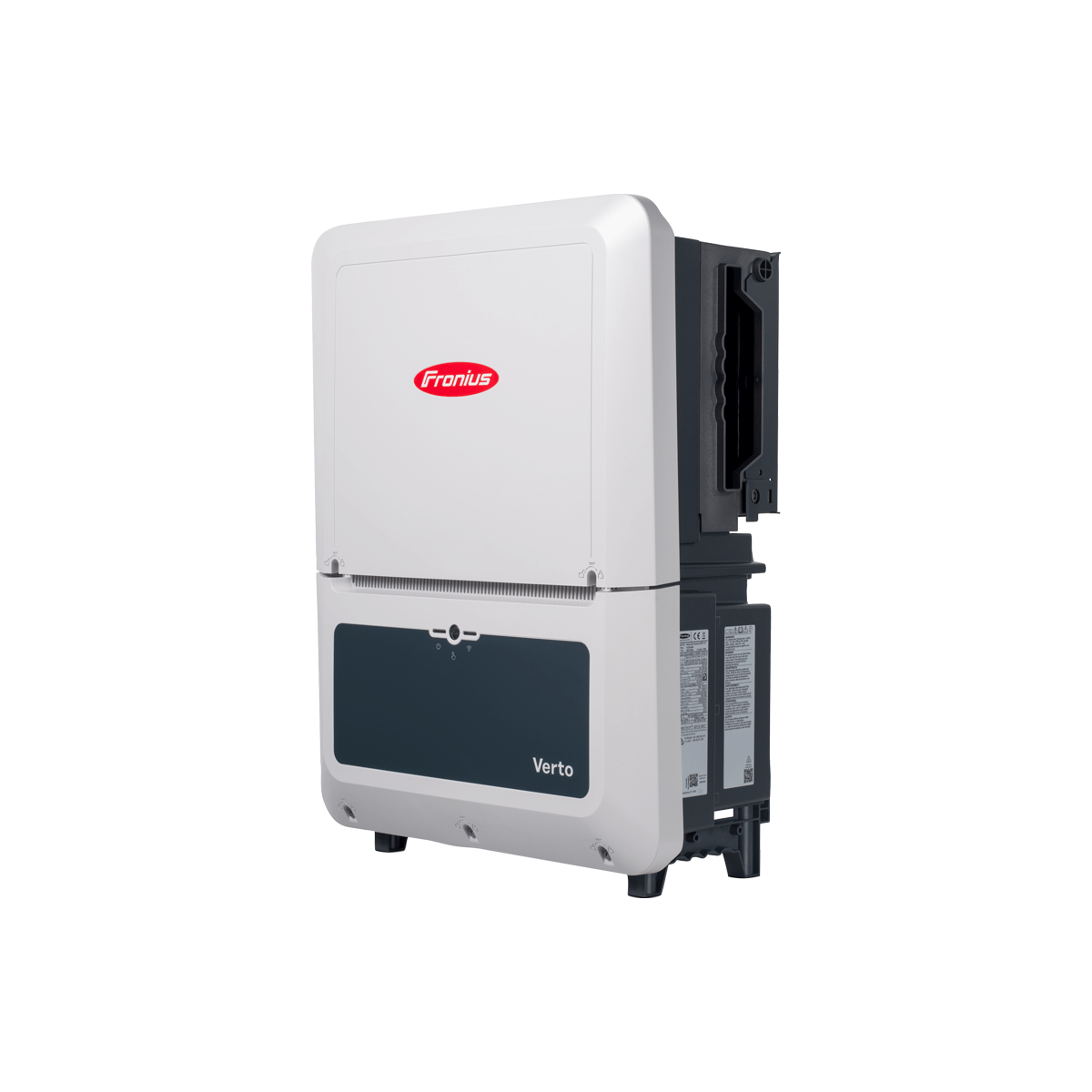

Fronius Verto 20.0
| Type of manufacturer: | Fronius Verto 20.0 AC/DC ÜSS Typ 1+2 |
|---|---|
| Manufacturer Art. No.: | 4,210,424 |
| Art. Nr.: | 14175 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | PV inverter |
| MPP-Tracker: | 3 |
| AC power: | 20 kW |
| Warranty: | 2 years |
| Communication: | WLAN, Ethernet, RS485, DI, DO |
| MPP voltage range: | 150 - 870 Volt |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from 27.11.2025
Product number:
14175
Description
Fronius Verto 20.0 for complex roof systems
The flexible Fronius Verto string inverter is designed for apartment buildings, small businesses, and agriculture. The inverter can achieve maximum yield on complex roofs. Equipped with 3 MPP trackers, up to two strings can be connected per MPPT. In addition, the Dynamic Peak Manager shading management system is integrated into the inverter. This allows maximum solar yields to be achieved even in partial shading conditions. With type 1+2 DC surge protection and type 2 AC surge protection, the Verto offers a high standard of safety.
Product advantages
- Connection of the ripple control receiver directly to the inverter
- Open interfaces for connecting additional consumers (including Fronius Wattpilot/Ohmpilot)
- Wide MPPT voltage range
- Integrated DC overvoltage protection type 1+2 and AC overvoltage protection type 2
- AFCI arc detection available
- Integrated shading management “Dynamic Peak Manager”
- DC oversizing of 150% possible
- Free warranty extension to 5 years with online registration
Product features Fronius Verto 20.0
- Grid connection: 3-phase
- AC power: 20.0 kVA
- MPP tracker: 3
- String connections per MPPT: 2/1/1
- Max. input current per MPPT: 28 A
- Max. short-circuit current per MPPT: 50 A
- Communication: integrated data logger with web server, Wi-Fi, 2 x LAN, 2 x RS485, 6 x dig. IN/OUT, 6 x dig. IN (radio ripple control receiver)
- Ambient temperature range: -40°C to +60°C
- Protection category: IP 66
- Dimensions: 730 x 540 x 278 mm
- Weight: 35.20 kg
- Warranty: 2 years (extended to 5 years with online registration)
