GoodWe ET Plus 16A - GW6.5KN-ET & LG RESU FLEX 12.9
| Art. Nr.: | 14894 |
|---|---|
| Inverter: | GoodWe ET Plus 16A - GW6.5KN-ET |
| Phases: | 3 |
| Solar battery: | LG RESU FLEX 12.9 |
| Net capacity: | 12.9 kWh |
| Battery type: | High volt lithium |
Prices are only visible to business customers upon successful registration.
- Top-Deal
- Sale
Available from stock
Product number:
14894
-
-
{ "id": "990ce1964e07588ebaf3695037ce688e", "item_brand": "", "item_name": "LG RESU FLEX battery module", "item_id": "7560", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "990ce1964e07588ebaf3695037ce688e" } } -
GoodWe & GoodWe EV Charger HCA G2 11 kW cable 7.5 m- Art. Nr.: 14143
- GoodWe
Available from 06.07.2026{ "id": "a1259346d18057749df4b61bf3c67906", "item_brand": "", "item_name": "GoodWe & GoodWe EV Charger HCA G2 11 kW cable 7.5 m", "item_id": "14143", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a1259346d18057749df4b61bf3c67906" } } -

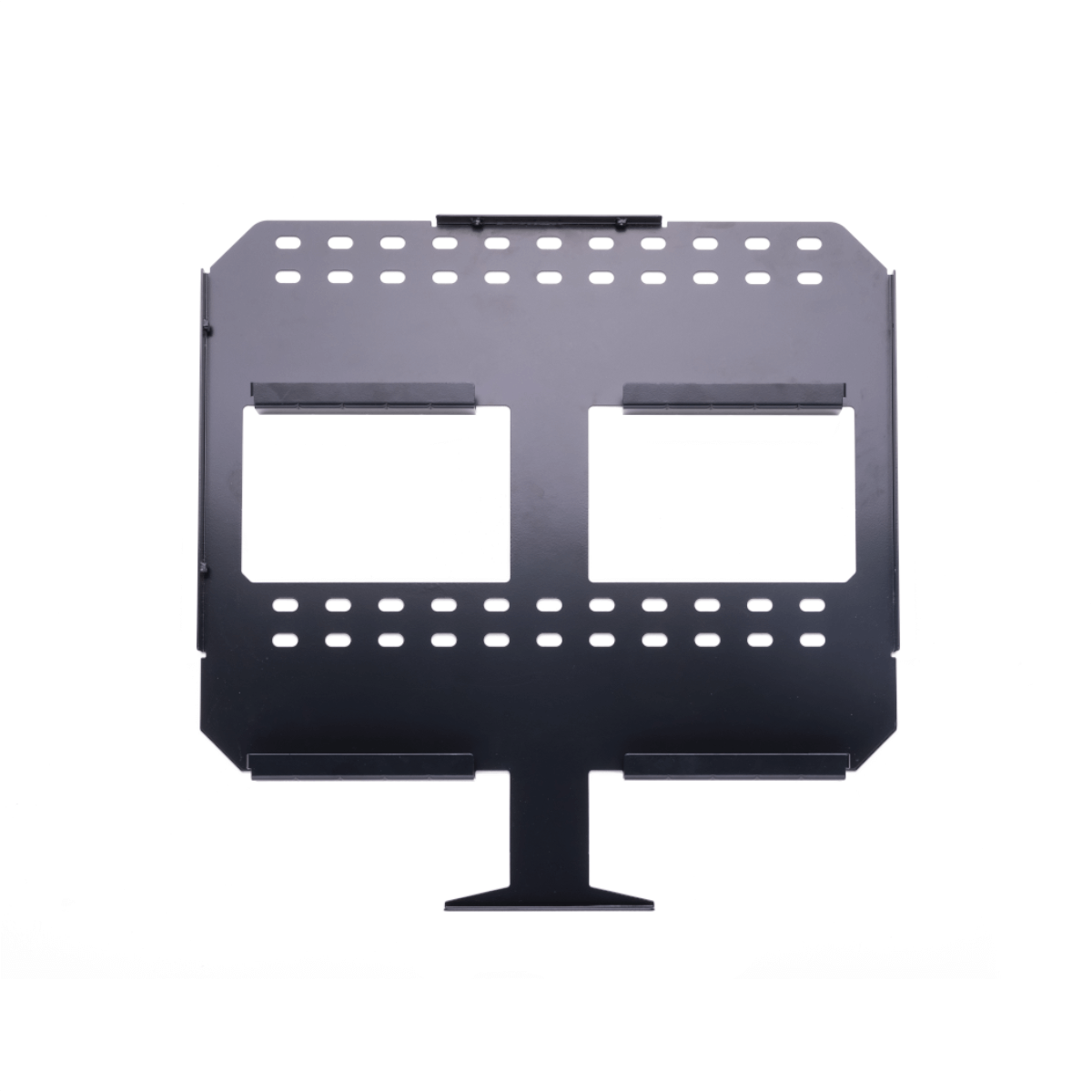

{ "id": "cc40adec619e5fed8aa2f4fded30f571", "item_brand": "", "item_name": "LG RESU FLEX wall mounting kit", "item_id": "7753", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "cc40adec619e5fed8aa2f4fded30f571" } }
-
Description

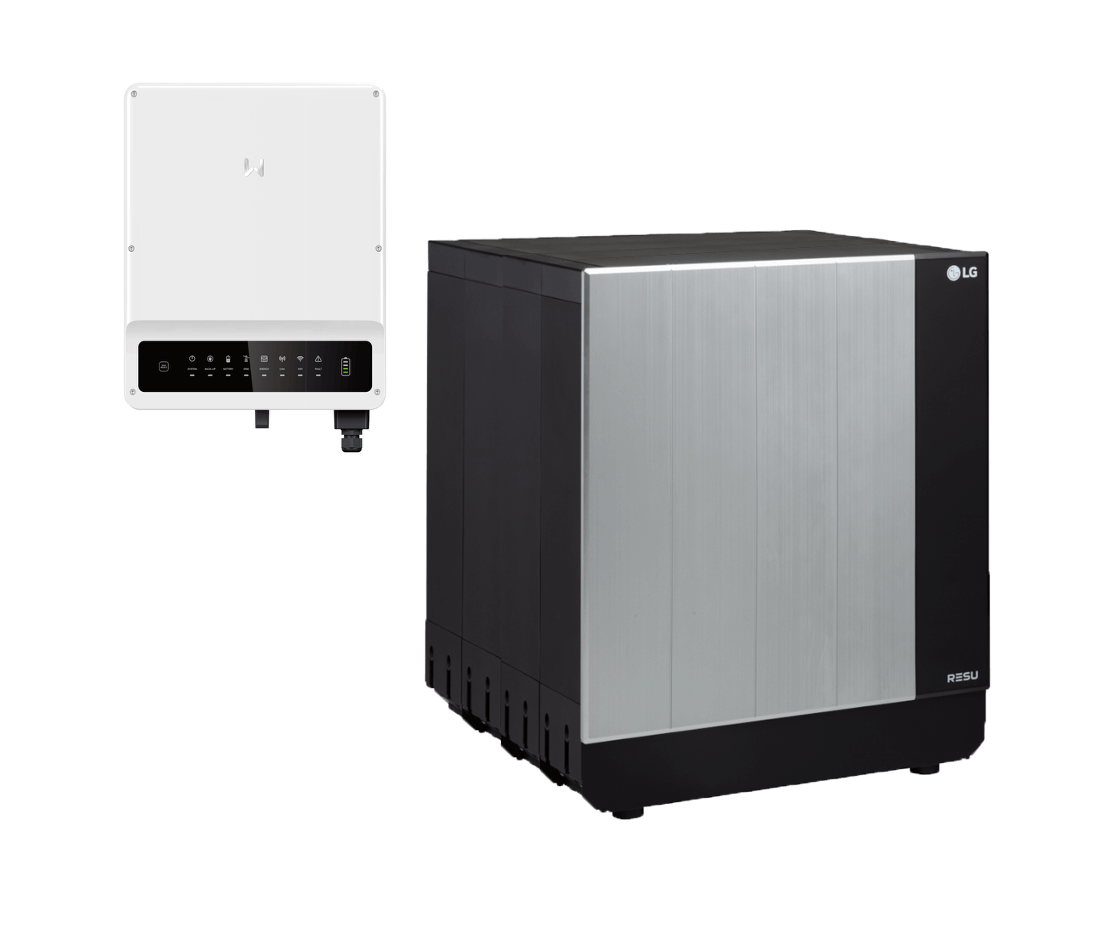

GoodWe ET Plus 16A - GW6.5KN-ET & LG RESU FLEX 12.9
The GoodWe ET Plus 16A series hybrid Inverter is ideal for residential use. With a high input current of 16A, it is perfectly compatible with modern high-performance modules. The Inverter also features an integrated transfer switch for backup power, ensuring that selected loads can continue to be reliably supplied with emergency power in the event of a grid failure. The hybrid inverter supports black start and can enable solar recharging even during a power cut. Additional loads such as Wallboxes or Heat pumps can be intelligently integrated via a programmable dry contact. If the GoodWe EV charger is integrated, communication is conveniently handled via the SEMS portal.
The LG RESU FLEX high-voltage battery, available in three different sizes, is a suitable storage solution. It consists of two to four battery modules and offers an usable storage capacity of 8.6 to 17.2 kWh. The system is modularly expandable and suitable for both wall and floor mounting. The control unit is marked with the LG symbol. For floor mounting, the battery modules are connected in series to the control unit, whilst for wall mounting, several units can be installed flat side by side.
Base plates for floor installation are included in the scope of delivery!
Product features GW6.5KN-ET
- Mains connection: 3-phase
- AC power: 6.5 kVA
- 6.5 kW emergency power output via separate output
- MPP trackers: 2
- String connections per MPPT: 1
- Max. input current: 16 A
- Max. short-circuit current: 21.2 A
- Battery connection for high-voltage battery (BYD, GoodWe, LG)
- Communication: RS485, Wi-Fi (optional LAN)
- Potential-free contact available (programmable via SolarGo app) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- 3-phase GM3000 smart meter included
- WiFi module included
- Dimensions: 516 x 415 x 180 mm (H x W x D)
- Protection class: IP 66
- Weight: 24.0 kg
Product features LG RESU FLEX 12.9
- Usable battery capacity: 12.9 kWh
- Max. charging/discharging power: 6.5 kW
- Operating temperature (charging): 10–50 °C
- Operating temperature (discharge): -10 – 50 °C
- Communication: CAN, RS485
- IP 55
- Dimensions: 665.2 x 665.2 x 148.4 mm (H x W x D) per module
- Weight of one battery unit: 48.9 kg
- Weight: Control unit: 16.5 kg
- Warranty: 10 years (subject to LG certification training and a constant internet connection for the battery)
Contents
- 1 x control unit
- 3 x battery modules (4.3 kWh each)
- 1 x GoodWe ET Plus 16A - GW6.5KN-ET
Videos
Videos
-
GoodWe ET Plus 16A InstallationThe YouTube video has been blocked due to the cookie settings.
-
LG RESU FLEXThe YouTube video has been blocked due to the cookie settings.
-
