GoodWe & GoodWe ESA 25 kW - GW25K-ETA-G20
| Type of manufacturer: | GW25K-ETA-G20 |
|---|---|
| Manufacturer Art. No.: | NBG0025-03-00P |
| Art. Nr.: | 14971 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Hybrid inverter |
| MPP-Tracker: | 4 |
| AC power: | 25 kW |
| Warranty: | 10 years |
| Communication: | WLAN/LAN/BT/RS485 |
| MPP voltage range: | 120-950 Volt |
-
Recommended accessories
-

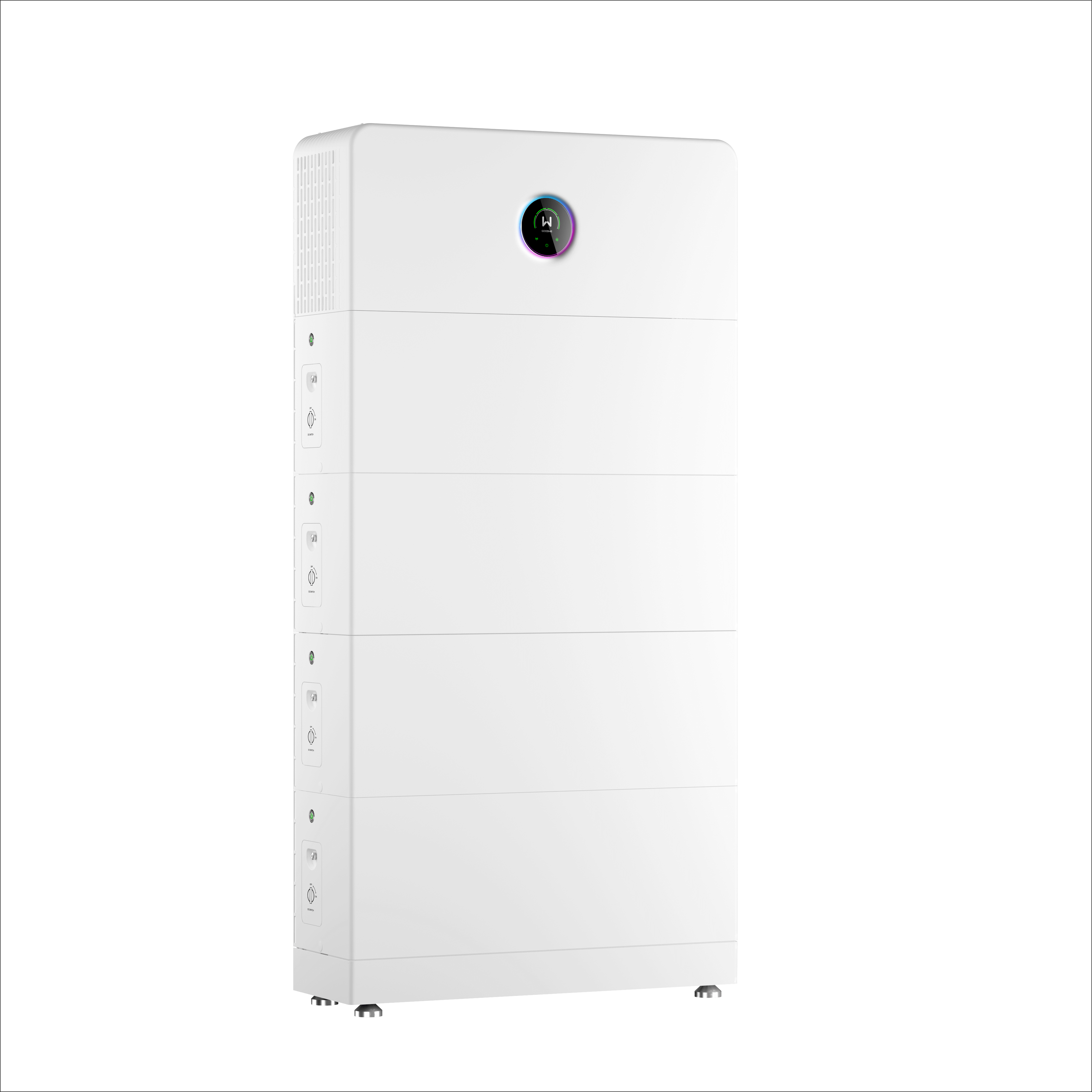

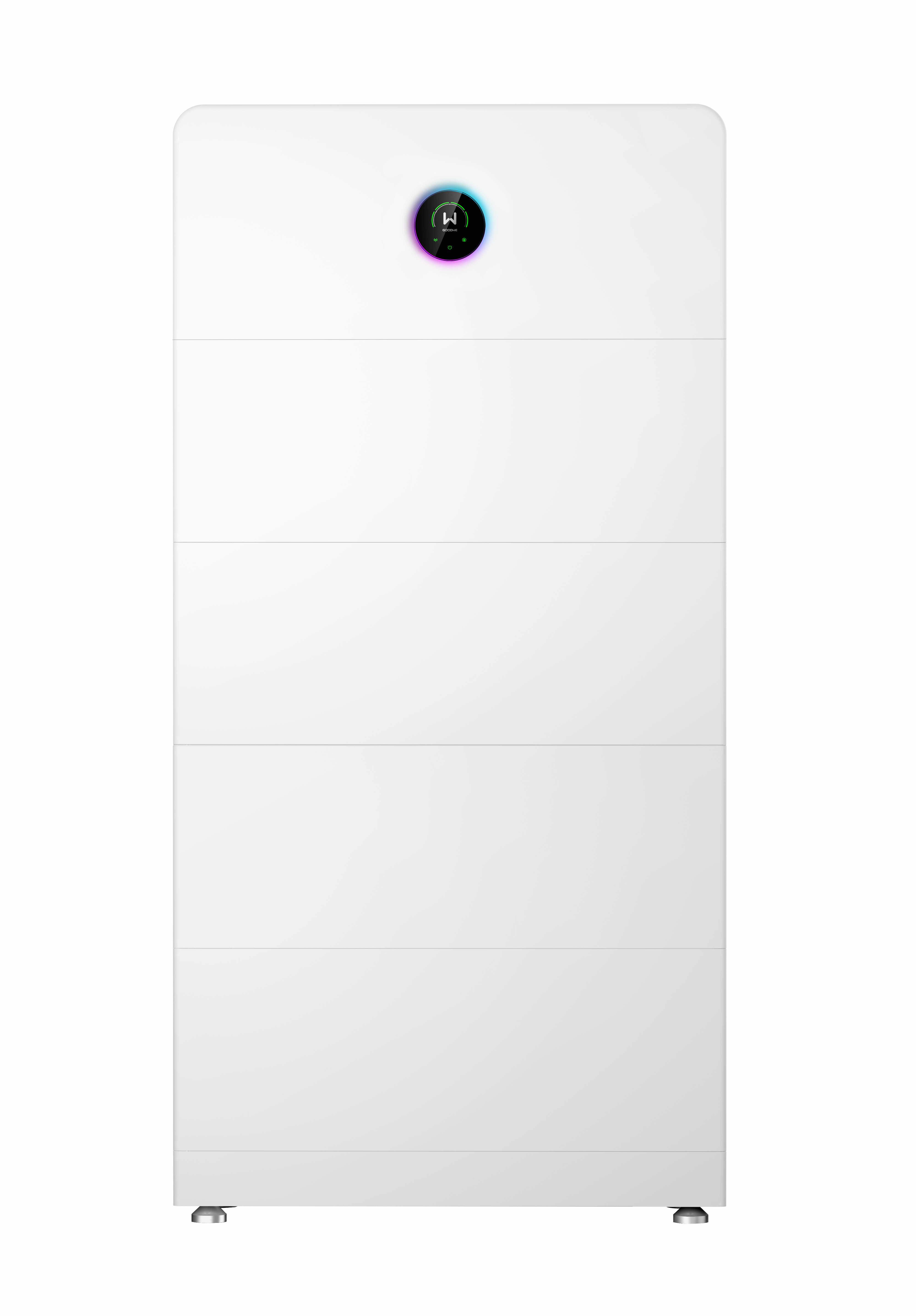

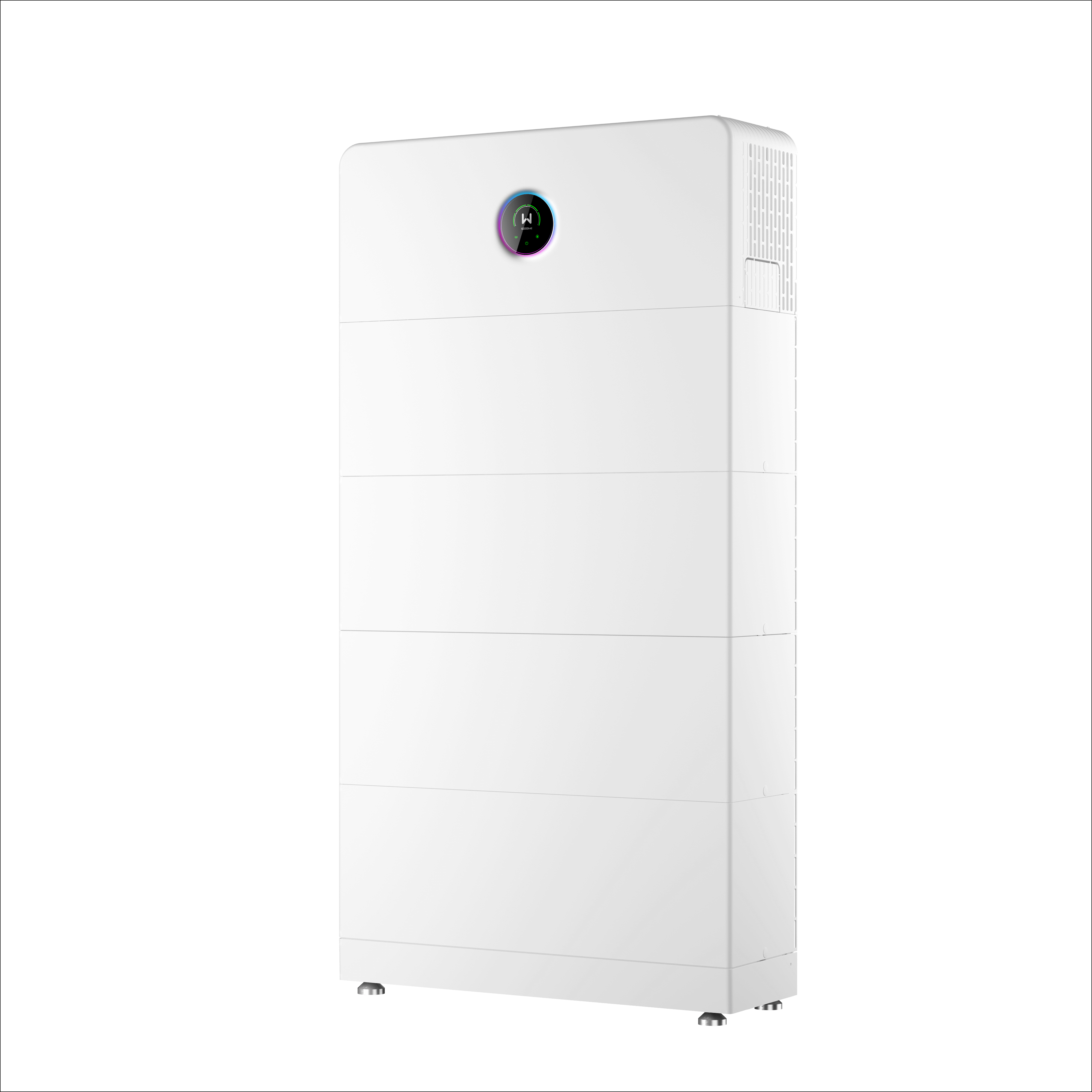

GoodWe ESA 25 kW – The all-in-one energy storage solution for maximum independence.
With the GoodWe ESA series, you get a high-performance all-in-one energy storage solution for maximum independence and efficiency. The three-phase hybrid Inverter combines state-of-the-art high-voltage battery technology with up to 200% PV oversizing, enabling simultaneous battery charging and power supply to your loads – for maximum self-consumption rates and optimal utilisation of your PV system.
Thanks to an integrated emergency power function with a switchover time of ≤ 4 ms, up to 80 A of backup power and scalable battery capacity of up to 108 kWh, the system grows flexibly with your requirements. The ESA also impresses with whisper-quiet operation from 35 dB, 98% efficiency with SiC technology, and a six-layer safety architecture for reliable protection – even at temperatures as low as −20 °C
Whether for a detached house or a small business: with the GoodWe ESA, you are investing in a future-proof, smart and expandable energy storage solution.
Product benefits:
- All-in-one system solution: hybrid Inverter and high-voltage storage in a single unit
- Ideal for residential & small C&I: Designed for single-family homes and small commercial applications
- High flexibility & scalability: Expandable from 5 to 108 kWh (up to 2 battery towers)
- Fully integrated emergency power supply: Switching time ≤ 4 ms for uninterrupted backup operation
- High PV utilisation: Simultaneous battery charging and power supply to loads possible
- 200% PV oversizing: Supports double the PV input power for maximum yields
- Quiet operation: Noise level from <35 dB (library level, fanless design)
- Comprehensive safety: Six-layer safety architecture including cell monitoring & fire protection
- Winter-ready: Standard battery module heating for reliable operation down to -20 °C
Product features:
- Power range: Three-phase 25 kW hybrid Inverter
- Storage capacity: 5–108 kWh (up to 12 battery modules in two towers)
- MPPT configuration: 5–8 kW: 3 MPPT / 3 strings -- 10–20 kW: 4 MPPT / 4 strings -- 25–30 kW: 4 MPPT / 6 strings
- Max. input current per string: 21 A
- Emergency power output: Off-grid: 110% continuous power -- 200% peak power for 10 seconds
- Integrated backup connection & Smart meter
- Parallel connection possible: Up to 6 Inverters and up to 576 kWh of Battery storage system
- Battery module technology: DC-DC converter in each module for optimised expandability
- Fire protection as standard: Aerosol fire suppressant integrated into the module
- Communication & monitoring: Wi-Fi/LAN/Bluetooth/RS485 integrated, SEMS+ platform as standard
- AFCI integrated
- AC & DC Type 2 RCD integrated
- Warranty: 10 years (Inverter & battery)
-
