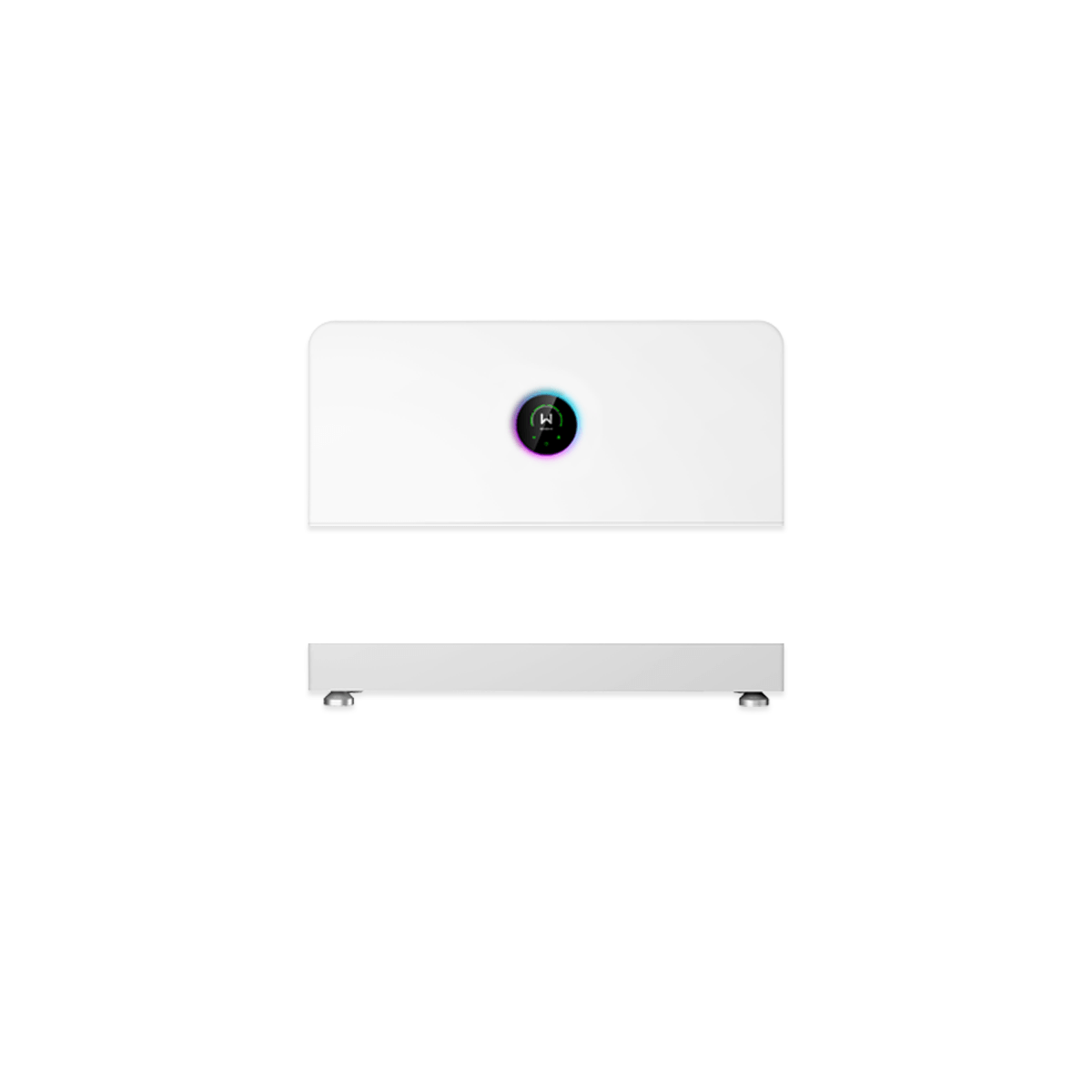

GoodWe & GoodWe ESA battery module 8 kWh - GW8.3-BAT-D-G20

GoodWe ESA 8 kWh Battery Module – The all-in-one energy storage solution for maximum independence.

With the GoodWe ESA series, you get a high-performance all-in-one energy storage solution for maximum independence and efficiency. The three-phase hybrid Inverter combines state-of-the-art high-voltage battery technology with up to 200% PV oversizing, enabling simultaneous battery charging and power supply to your loads – for maximum self-consumption rates and optimal utilisation of your PV system.

Thanks to an integrated emergency power function with a switchover time of ≤ 4 ms, up to 80 A of backup power and scalable battery capacity of up to 108 kWh, the system grows flexibly with your requirements. The ESA also impresses with whisper-quiet operation from 35 dB, 98% efficiency with SiC technology, and a six-layer safety architecture for reliable protection – even at temperatures as low as −20 °C

Whether for a detached house or a small business: with the GoodWe ESA, you are investing in a future-proof, smart and expandable energy storage solution.

Product benefits:

• All-in-one system solution: hybrid Inverter and high-voltage storage in a single unit
• Ideal for residential & small C&I: Designed for single-family homes and small commercial applications
• High flexibility & scalability: Expandable from 5 to 108 kWh (up to 2 battery towers)
• Fully integrated emergency power supply: Switching time ≤ 4 ms for uninterrupted backup operation
• High PV utilisation: Simultaneous battery charging and power supply to loads possible
• 200% PV oversizing: Supports double the PV input power for maximum yields
• Quiet operation: Noise level from <35 dB (library level, fanless design)
• Comprehensive safety: Six-layer safety architecture including cell monitoring & fire protection
• Winter-ready: Standard battery module heating for reliable operation down to -20 °C

Product features:

• Power range: Three-phase 5 to 29,999 kW hybrid Inverter
• Storage capacity: 8 kWh (5–108 kWh with up to 12 battery modules in two towers)
• MPPT configuration: 5–8 kW: 3 MPPT / 3 strings -- 10–20 kW: 4 MPPT / 4 strings -- 25–30 kW: 4 MPPT / 6 strings
• Max. input current per string: 21 A
• Emergency power output: Off-grid: 110% continuous power -- 200% peak power for 10 seconds
• Integrated backup connection & Smart meter
• Parallel connection possible: Up to 6 Inverters and up to 576 kWh of Battery storage system
• Battery module technology: DC-DC converter in each module for optimised expandability
• Fire protection as standard: Aerosol fire suppressant integrated into the module
• Communication & monitoring: Wi-Fi/LAN/Bluetooth/RS485 integrated, SEMS+ platform as standard
• AFCI integrated
• AC & DC Type 2 RCD integrated
• Warranty: 10 years (Inverter & battery)
