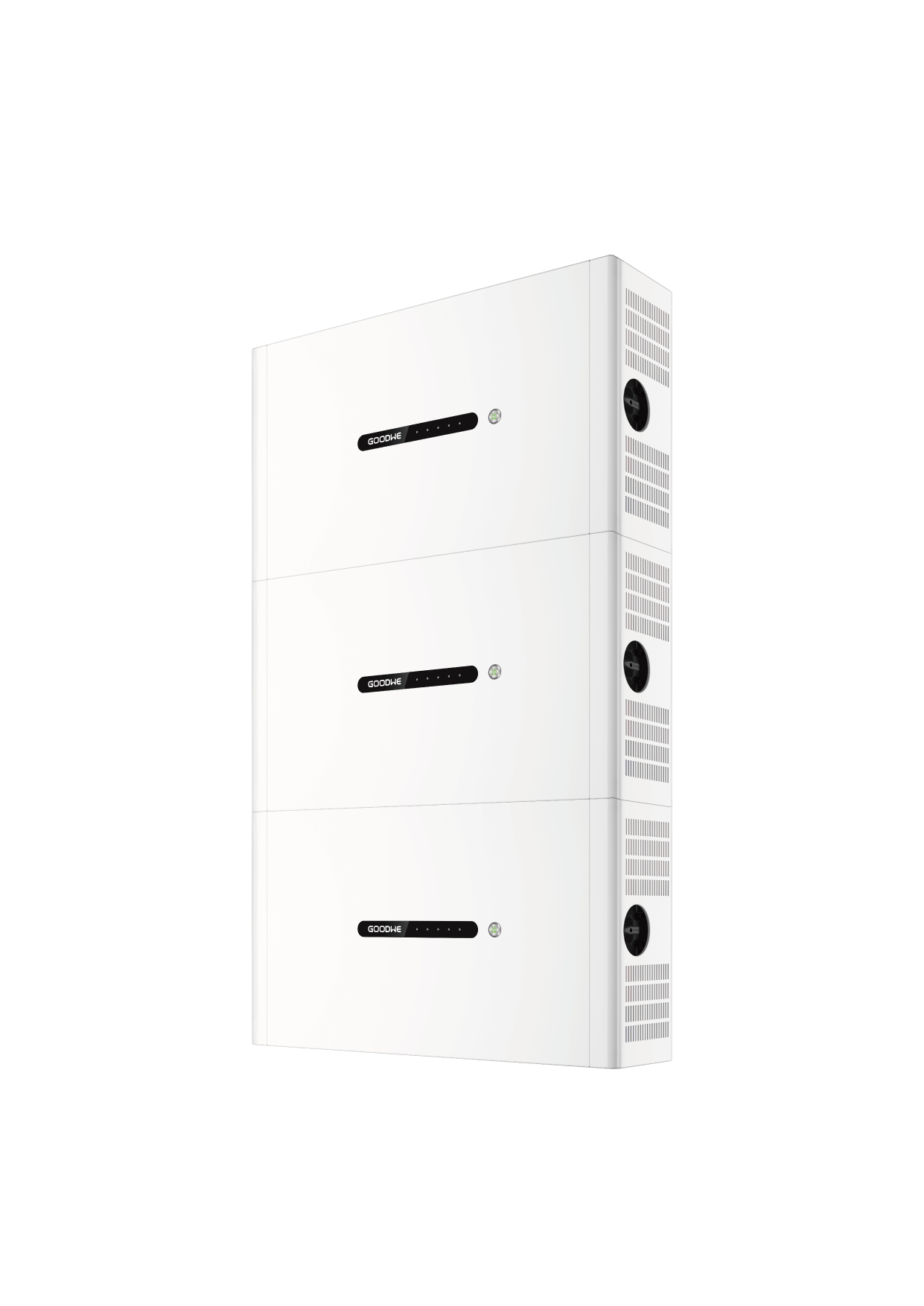

15 kWh Lynx D high-voltage battery storage tower from GoodWe

The mounting system (base plate or wall bracket) is not included with the battery and must be purchased separately!
Item number base plate: 12788
Item number wall bracket: 12787

The Lynx D high-voltage battery storage tower from GoodWe is a stackable, self-recognizing battery storage system. It is easy to install and allows new and old battery modules to be connected for future expansion. The battery tower can be expanded to up to 8 battery modules with a usable storage capacity of up to 40 kWh.
The high-voltage battery tower is compatible with the hybrid inverters of the GoodWe ET and EH series, among others, and represents a complete solution from a single manufacturer.

Product advantages

Stackable design saves space
Flexible module expansion – up to 8 stackable modules (40 kWh)
Simple installation thanks to plug and play connection between the individual battery modules
Suitable for indoor and outdoor installation
Integrated display of the charge status
Includes multi-purpose button (e.g. for displaying error codes)
Emergency power capability
DC/DC converter implemented
10-year product warranty

Product features GoodWe Lynx D – LX D5.0-10

Cell type: LiFePO4
Usable battery capacity: 15 kWh
Nominal voltage: Charging per battery module: 435 V; Discharging: 380 V
Nominal charging/discharging power: 9 kW
Communication: CAN
Temperature range: Discharging: -20°C – 53 °C
Temperature range: Charging: 0°C – 53°C
Battery module retrofit possible
Dimensions: 1140 x 700 x 170 mm (H x W x D)
Weight: 156 kg
Protection category: IP 66
Installation type: Floor-stacked / wall-mounted (base plate / wall bracket must be ordered separately)

Scope of delivery

3 x battery storage LX D5.0-10

Compatible with

GoodWe ET series / ET Plus series and BT series (3-phase)
GoodWe EH series and BH series (1-phase)
