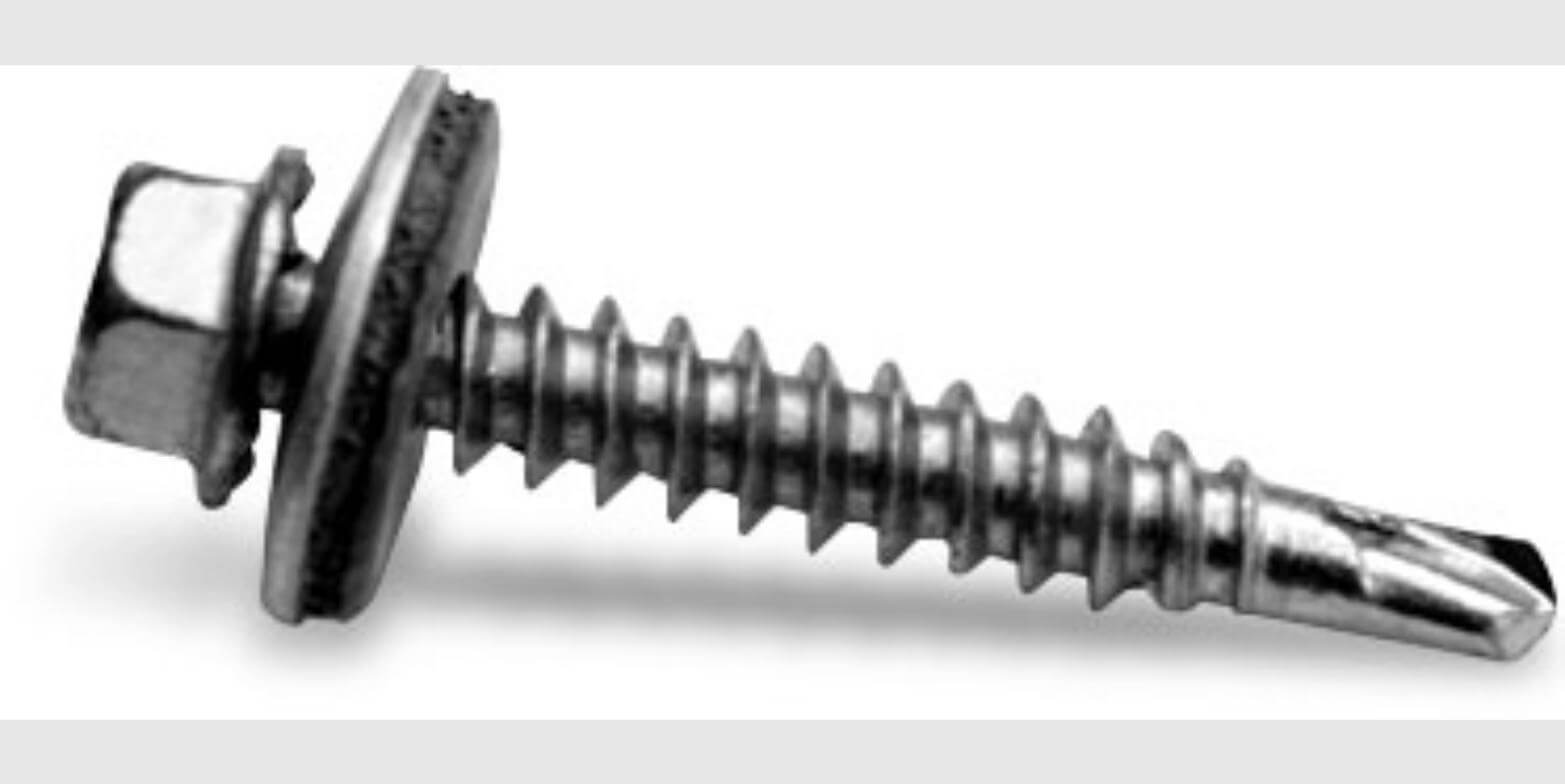

K2 Self-tapping hexagon sheet metal screw with sealing washer, 6x40

K2 Selbstbohrende Sechskantblechschraube mit Dichtscheibe 6x40

Manufacturer Art. No.:	2003424
Art. Nr.:	16325
Pieces per package unit:	500 per carton 105000 per pallet
Product type:	Screws

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16325

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16325

Tech tip

Ensure you use the specified sheet thickness – from 0.4 mm (steel and aluminium). Thinner sheets do not provide sufficient support for the self-tapping thread. Tighten the screw only until the sealing washer lies flat and is lightly compressed: if you overtighten it, the washer will be damaged and the seal will fail. Insert the screw as close to perpendicular to the surface of the sheet metal as possible, so that the sealing washer bears the load all round.

K2 Self-tapping hexagon sheet metal screw with sealing washer 6x40

With the K2 Systems 6x40 self-tapping hexagon sheet metal screw, you can securely fasten components to sheet metal surfaces – without pre-drilling. The pre-fitted sealing washer (EPDM, pre-fitted, Ø 16 mm) permanently seals the hole and protects the penetration from moisture. The screw and drill tip are designed for sheet metal substrates: from 0.4 mm (steel and aluminium). Material: A2 stainless steel.

Your benefits

Self-tapping – no separate pilot drilling required, saving you a step
Pre-fitted sealing washer for a permanently sealed penetration
A2 stainless steel – corrosion-resistant and durable
External hexagon SW8 – quick installation with a cordless screwdriver
Approved sheet thickness: from 0.4 mm (steel and aluminium)
Pack size: 500 pieces

Order now

Do you need these screws for your next project? Order the K2 hexagon sheet metal screw 6x40 directly here in the Memodo Shop – sold in packs of 500.

Examples of use

Use in the K2 MultiRail system
Installation on trapezoidal and steel sheet substrates within the approved thickness range
Fastening to aluminium substrates within the approved thickness range

Technical data

Head shape: Hexagonal
Diameter: 6.0 mm
Length: 40 mm
Material: A2 stainless steel
Sealing washer: EPDM, pre-fitted, Ø 16 mm
Screw system: External hexagon SW8
Approved sheet thickness: from 0.4 mm (steel and aluminium)
Mounting system: K2 MultiRail System
Area of application: Pitched roof
Packaging unit: 500 pieces
Carton: 500 pieces
Pallet: 105,000 pieces
Weight per piece: 0.008 kg
Manufacturer’s item number: 2003424
GTIN: 4251786209545
