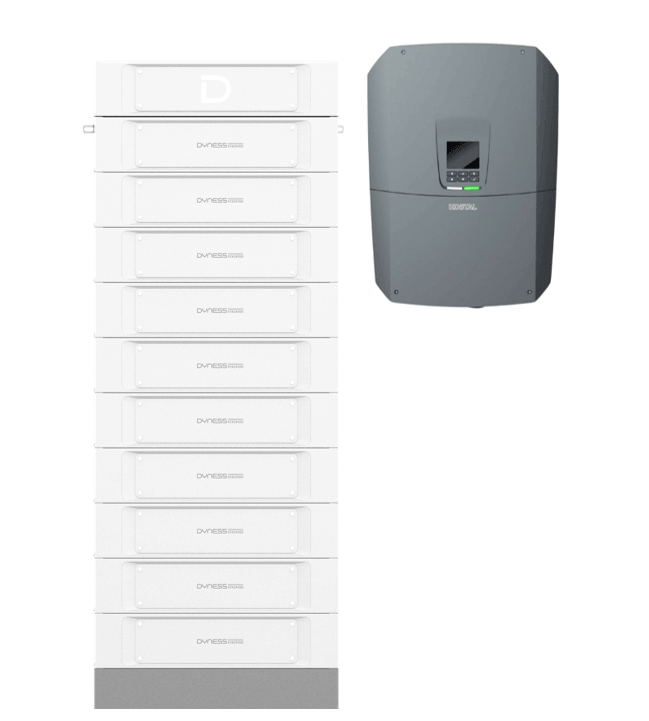

Kostal & Dyness Retrofit M
| Art. Nr.: | 16403 |
|---|---|
| Battery type: | LFP |
| Installation location: | Indoor |
| Usable capacity: | 48.6 kWh |
| Power: | 20.5 kW |
| Warranty: | 10 years |
| Charging power: | 20.5 kW |
| Discharging power: | 20.5 kW |
| Communication: | RS485 |
| Commercial storage type: | Modular with inverter |
Prices are only visible to business customers upon successful registration.
Product number:
16403
-
-
{ "id": "ab2cf80857d859adb0ca8444d783f149", "item_brand": "", "item_name": " Kostal Smart Energy Meter G2", "item_id": "7613", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ab2cf80857d859adb0ca8444d783f149" } } -
{ "id": "e757011898fc5c43ac59bfef8eb17481", "item_brand": "", "item_name": "Dyness Stack 100 battery module with 5.12 kWh", "item_id": "13721", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e757011898fc5c43ac59bfef8eb17481" } }
-
Description
Kostal & Dyness Retrofit M – Battery retrofit for existing PV systems
With the Kostal & Dyness Retrofit M, an existing Photovoltaic system can be easily expanded to include a Battery storage system – without any modification to the existing PV Inverter. The package combines the KOSTAL PLENTICORE BI 25 G3, an AC-coupled battery Inverter, with 10 Dyness Stack100 battery modules, each with a capacity of 5.12 kWh. This results in an usable storage capacity of around 48.6 kWh. With 10 modules (approx. 512 V stack voltage), the battery-side AC power output is around 20.5 kW (instead of the full base power of 25 kW) – ideal for medium-sized commercial premises.
Contents of delivery:
- 1× Kostal PLENTICORE BI 25 G3 (Inverter, base power 25 kW)
- 10× Dyness Stack 100 battery module, 5.12 kWh each
- 1× Dyness Stack 100 BDU including base
Product features of the Kostal PLENTICORE BI 25 G3:
- Base power: 25 kW, rated AC power 25 kW / 25 kVA
- 3 DC inputs, max. charge/discharge current (total) 68 A
- Battery operating voltage: 95–880 V
- Mains connection 3N~, 230/400 V, 50 Hz
- Backup operation: 25 kVA, start-up time <5 s (manual) / <30 s (automatic)
- Max. efficiency Bat2AC/AC2Bat: 98.3 %
- Protection rating: IP65, protection class I, pollution degree 4
- Dimensions (H/W/D): 561 × 409 × 237 mm, Weight: 22.3 kg
- Ambient temperature: -20 °C to +60 °C, installation altitude up to 2000 m
- Connection technology: SUNCLIX ES (DC), spring-loaded terminal block (AC), push-in (interfaces)
- Interfaces: 2× LAN (RJ45), Wi-Fi (2.4 GHz), Modbus RTU, digital inputs/outputs
- Noise emission (typical): 39.6 dB(A)
Product specifications for the Dyness Stack 100 battery module (10-module configuration):
- Battery type: LiFePO4 (lithium iron phosphate), 5.12 kWh / 51.2 V / 100 Ah per module
- Stack voltage (rated voltage): 512.0 V, voltage range: 448–584 V
- Usable capacity: 48.6 kWh (95% DoD) / 51.2 kWh (100% DoD)
- Max. power draw with this stack (10 modules): 20.5 kW
- Max. charging/discharging current of the battery system: 40 A
- Communication with the Inverter: RS485
- Tower dimensions (H/W/D): 1569 × 591 × 390 mm, tower weight: 470 kg
- Protection class: IP20, operating temperature: 0 °C to +55 °C
- Service life: >6,000 cycles or unlimited within the warranty period, 10-year manufacturer’s warranty
Product features of the Dyness Stack 100 BDU including base:
- Battery Distribution Unit including base for stacking Stack100 modules
- Battery type: high-voltage lithium
- Smallest battery tower size: 3 battery modules (15.36 kWh)
- Weight: 22.0 kg
- 10-year manufacturer’s warranty
