Dyness Stack 100 battery module with 5.12 kWh
| Type of manufacturer: | S51100 |
|---|---|
| Manufacturer Art. No.: | Stack 100 Batteriemodul 5,12kWh |
| Art. Nr.: | 13721 |
| Pieces per package unit: |
|
| Net capacity: | 4.864 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Warranty: | 10 Jahre |
| Solar battery type: | High voltage battery |
Prices are only visible to business customers upon successful registration.
Product number:
13721
-
-
{ "id": "1a3e7b25803c520abb583a1b65c80576", "item_brand": "", "item_name": "SMA Sunny Island X 50", "item_id": "13520", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "1a3e7b25803c520abb583a1b65c80576" } } -
{ "id": "5a780f544df553dca9c8e79da22b5a46", "item_brand": "", "item_name": "Dyness Stack 100 BDU incl. base", "item_id": "13723", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5a780f544df553dca9c8e79da22b5a46" } } -

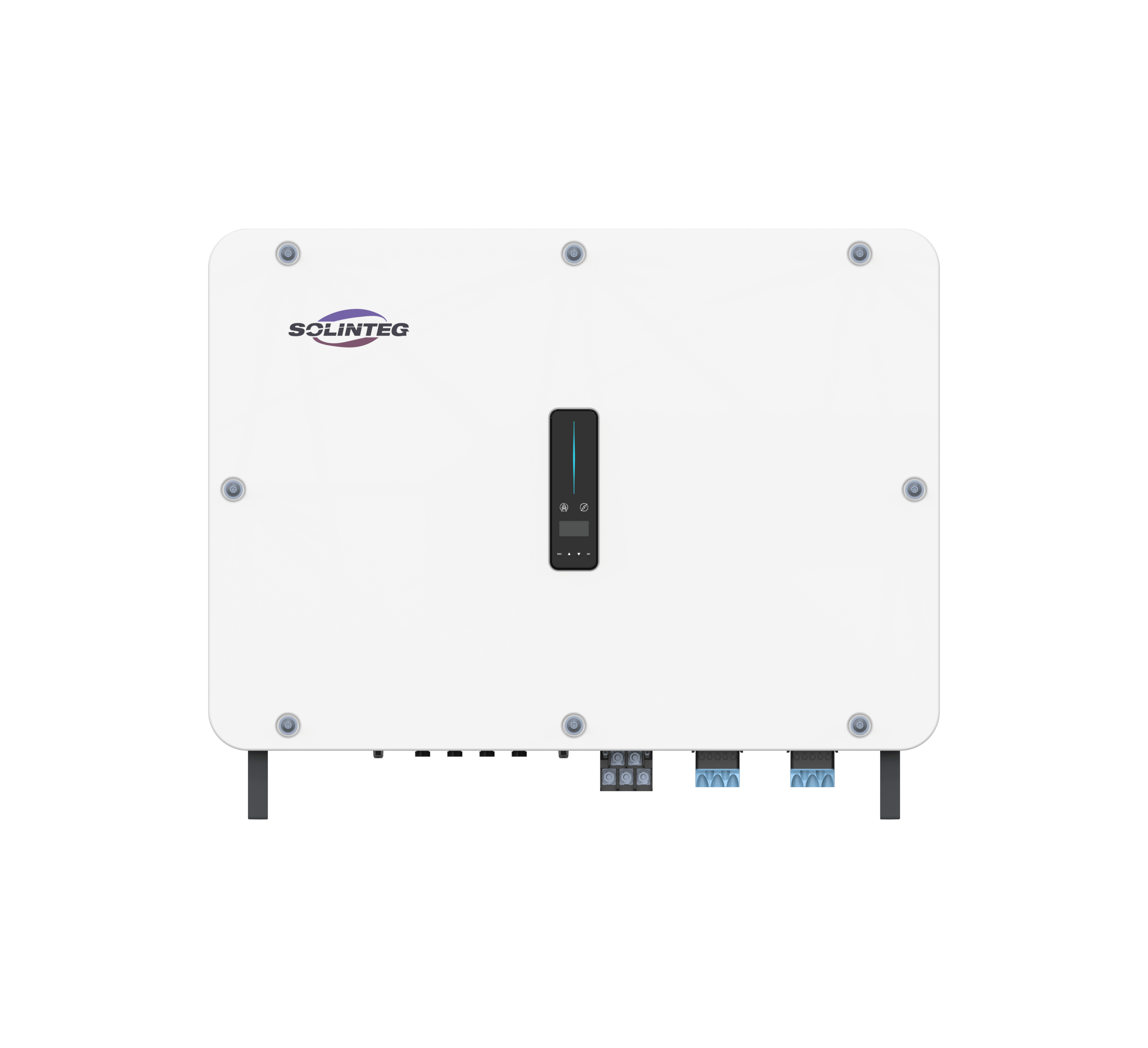

{ "id": "b0241ac472d6552f9fb3339cc1ff2d73", "item_brand": "", "item_name": "Solinteg M2HT-50K-150", "item_id": "15677", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b0241ac472d6552f9fb3339cc1ff2d73" } } -

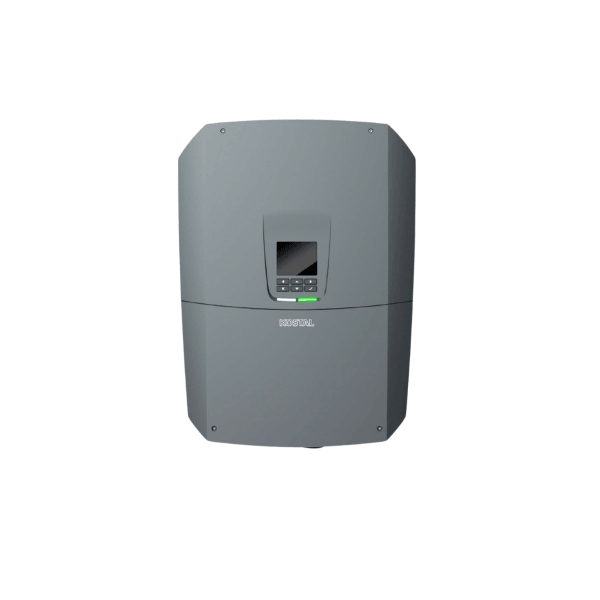

{ "id": "ead1407437d850d3b6ace361fd639a00", "item_brand": "", "item_name": "Kostal PLENTICORE BI 25 G3", "item_id": "15948", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ead1407437d850d3b6ace361fd639a00" } }
-
Description
Dyness Stack100 battery module with a capacity of 5.12 kWh
The Dyness Stack100 is a modular high-voltage Battery storage system, developed for commercial and large-scale domestic applications. The system offers impressive safety features thanks to state-of-the-art LiFePO4 technology and an integrated fire suppression system, as well as a long service life and flexible scalability. Installation is simple and space-saving thanks to stackable mounting, making the storage system ideally suited to spaces with limited room.
Smallest battery tower size: 3 battery modules (15.36 kWh)
Product benefits:
- Modularly expandable from 15.36 kWh to 76.8 kWh (up to 15 modules per tower; multiple towers can be connected in parallel)
- Modern, safe and durable LiFePO4 technology
- Integrated fire-extinguishing cartridge for maximum safety
- Intelligent battery management system with comprehensive protection functions
- Flexible installation (space-saving stack design, installation time ≤ 1 hour)
- Remote monitoring and updates via Wi-Fi
- Low maintenance and a 10-year manufacturer’s warranty
- Compatibility with numerous Inverters
Product features:
- Battery type: LiFePO4 (lithium iron phosphate)
- Single storage module: 5.12 kWh (51.2 V/100 Ah)
- Net capacity per module: 4.86 kWh
- System capacity: 15.36–76.8 kWh (max. 15 modules per tower)
- Can be connected in parallel: Up to 12 towers (max. 921.6 kWh in total)
- Operating voltage: 134–876 V (depending on the number of modules)
- Usable energy: 95 per cent depth of discharge (DoD)
- Max. charge/discharge current: 100 A (1C), peak current: 125 A (2 min)
- Service life: >6,000 cycles or unlimited within the warranty period
- Communication: CAN / RS485 / Wi-Fi
- Module dimensions: approx. 590 × 390 × 133.5 mm, weight: 47 kg
- Overall dimensions (10 modules + BDU): 590 × 390 × 1,468.5 mm, total weight: approx. 487 kg (depending on the number of modules)
- Protection class: IP55
- Operating temperature: -20°C to +55°C
-
