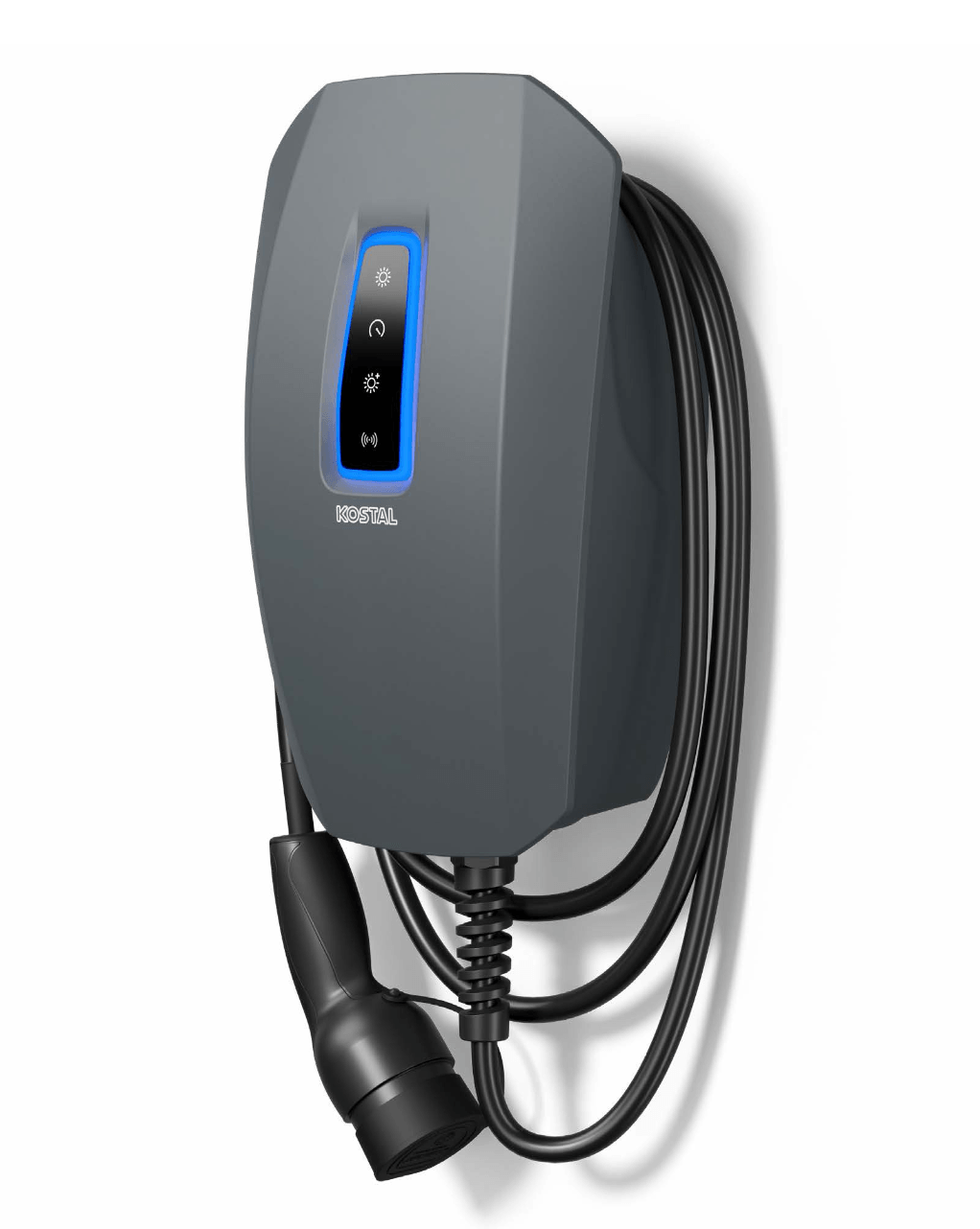

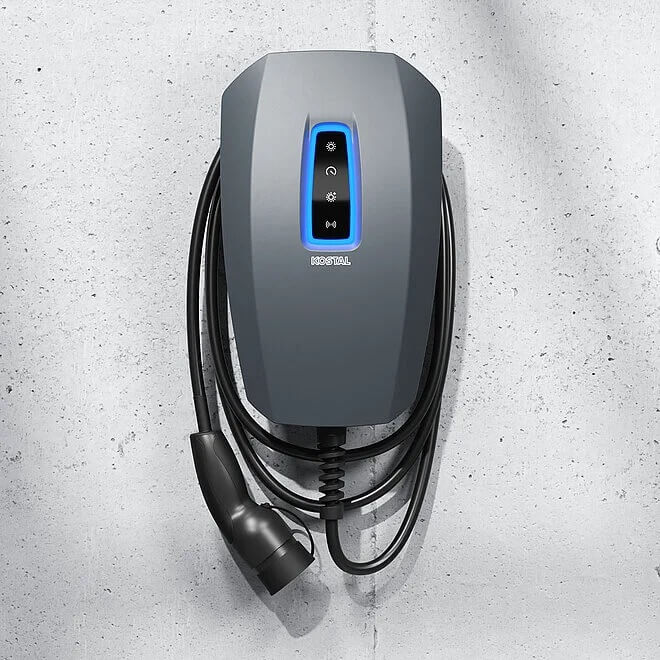

Kostal ENECTOR G2 AC 3.7/11
| Manufacturer Art. No.: | 12285982 |
|---|---|
| Art. Nr.: | 15943 |
| Pieces per package unit: |
|
| Power: | 11 kilowatt |
| Number of charging points: | 1 |
| Access control: | RFID |
| AC phases: | 3 |
| Surplus charging: | Yes |
| Charging port: | Cable |
| Energy meter: | No measurement |
| Electric charging system: | Private, Wallbox |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15943
-
-
{ "id": "a2ad918f496a56a38413878b2fc63401", "item_brand": "", "item_name": "Kostal Plenticore G3 M 8.5-12.5 kW", "item_id": "8095", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a2ad918f496a56a38413878b2fc63401" } } -
{ "id": "3e2ac886da205aa08c69bad6a1bbbd88", "item_brand": "", "item_name": "Kostal Plenticoin Card EU without DE", "item_id": "14309", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3e2ac886da205aa08c69bad6a1bbbd88" } } -
{ "id": "ab2cf80857d859adb0ca8444d783f149", "item_brand": "", "item_name": " Kostal Smart Energy Meter G2", "item_id": "7613", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ab2cf80857d859adb0ca8444d783f149" } }
-
Description
Kostal ENECTOR AC 3.7/11 kW G2 – Wallbox
The Kostal Enector Wallbox does not currently comply with OVE Guideline R37 for charging stations in Austria.
Charging using surplus PV energy is only possible with the Kostal Smart meter.
The KOSTAL ENECTOR AC Wallbox charges your electric vehicle at home at up to 11 kW – quickly, safely and with intelligent control. Thanks to PV-optimised charging (Solar Pure, Solar Plus, Power Mode, Lock Mode) in conjunction with a PLENTICORE G3 Inverter or the Kostal Smart Meter, the Wallbox prioritises charging with self-generated Solar power and automatically adjusts the charging power to the available PV energy – including automatic phase switching.
The compact Wallbox offers the benefits of simple wall mounting, integrated LAN/Wi-Fi, a web interface, as well as RFID and user management. A permanently connected 7.5 m Type 2 charging cable ensures convenient charging without the need for additional cable handling. Comprehensive safety features such as DC fault current monitoring, unbalanced load limitation and external load shedding ensure safe operation – even outdoors (IP54, –30 °C to 50 °C).
Available with a 5-year warranty (Smart Warranty, which can be activated free of charge in the Kostal Solar webshop).
Charging power & standards
- Up to 11 kW charging power (1-phase / 3-phase)
- Mode 3 charging in accordance with IEC 61851-1
- Communication in accordance with ISO 15118-20 (software update 2027)
PV-optimised charging
- Control via PLENTICORE G3 or Kostal Smart meter (KSEM)
- Charging modes: Solar Pure / Solar Plus / Power Mode / Lock Mode
- Automatic phase switching
- EEBUS- and §14a-ready
Operation & communication
- Colour LED status display
- Integrated LAN & Wi-Fi
- Activation via RFID card (3 cards included) or autostart
- Switching between charging modes via push-button
Advanced operation
- Integrated web interface
- Display of energy charged
- Data export in CSV format
- User and RFID management
Installation & Hardware
- 7.5 m Type 2 charging cable, permanently attached
- Removable front cover
- Compact design, easy wall mounting
- Cable entry at the top / bottom / rear
Safety & Mains Protection
- Internal DC residual current monitoring (RDC-MD > 6 mA)
- Compatible with external Type A RCDs
- Blackout protection
- Unbalanced load limitation
- External load shedding / shutdown in the event of a fault
- Charging current reduction via downgrade input
Other
- IP54 protection rating, protection class I, impact resistance IK10
- Suitable for indoor and outdoor installation
- Operating temperature -30 °C to 50 °C
- 5-year warranty (Smart Warranty, can be activated free of charge)
-
