Kostal Piko CI 100
| Manufacturer Art. No.: | 12182411 |
|---|---|
| Art. Nr.: | 10716 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 8 |
| AC power: | 100 kW |
| Warranty: | 5 years |
| Communication: | Ethernet, RS485, WLAN, GPRS |
| MPP voltage range: | 200 - 1100 Volt |
Prices are only visible to business customers upon successful registration.
Available from 27.05.2026
Product number:
10716
Description
Full power with the Kostal Piko CI 100 for commercial projects
Kostal presents its new Piko CI 100. The Inverter is initially certified for use in the low-voltage range, 400 V. The connection panel is clearly laid out. The Kostal Piko CI 100 has 16 DC inputs for connecting PV strings. No string combiner box is required for installation, which simplifies the process and results in cost savings. In addition to surge protection (Type 2 for both the AC and DC sides), the AFCI function is also included as standard. The integrated data logger, web server and connection to the Kostal Solar Portal are available free of charge with the CI 100.
Warranty extensions can be purchased at https://www.kostal-solar-electric.com/de-de/service-und-support/Kostal-garantie/
Product benefits
- Complete communication package as standard
- Increased safety and efficiency
- DC/AC Type 2 surge protection
- 4-wire AC connection
- Integrated shading management
- Single-string monitoring
- Zero feed-in possible
- PV derating of 150%
- 5-year warranty upon registration with Kostal
Product features Kostal Piko CI 100
- Grid connection: 3-phase
- AC power: 100.0 kW
- Transformerless design
- MPP trackers: 8
- DC inputs: 16
- MPP operating voltage range: 200–960 V
- Protection class: IP65
- Ambient temperature: -25 to +60 °C
- Weight: 93.0 kg
- Dimensions: 936 x 678 x 365 mm (H x W x D)
- Compatible with NA protection monitors; can be activated via app
-
Matching accessories
-
Stäubli MC4-EVO 2 plug 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm- Type of manufacturer: PV-KST4-EVO 2/6I-UR
- Art. Nr.: 6522
Available from stock{ "id": "b1c2dac4af1854aea1c57c503286fd02", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 plug 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm ", "item_id": "6522", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b1c2dac4af1854aea1c57c503286fd02" } } -
Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm- Type of manufacturer: PV-KBT4-EVO 2/6I-UR
- Art. Nr.: 6521
Available from stock{ "id": "fa509b3807ed5f9c84860bf3d494deec", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm ", "item_id": "6521", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "fa509b3807ed5f9c84860bf3d494deec" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black- Type of manufacturer: 713531
- Art. Nr.: 5734
Available from stock{ "id": "02eb7ea1d0a956a5b4c52598abf1754f", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black", "item_id": "5734", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "02eb7ea1d0a956a5b4c52598abf1754f" } } -

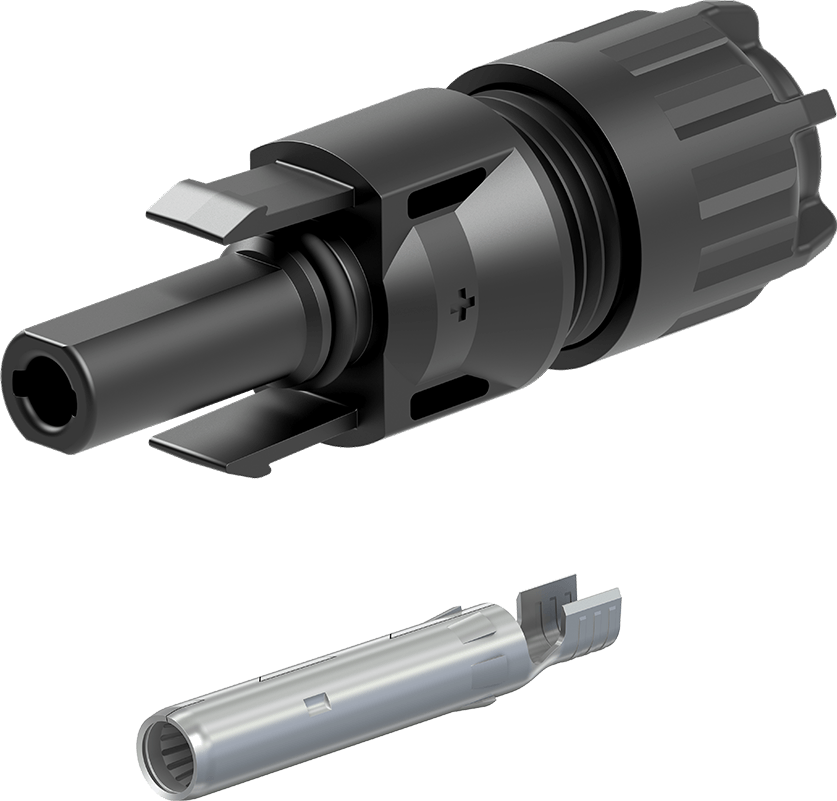

Stäubli MC4 socket, 4-6 mm² II, diameter 5.9-8.8 mm- Type of manufacturer: PV-KBT4/6II-UR
