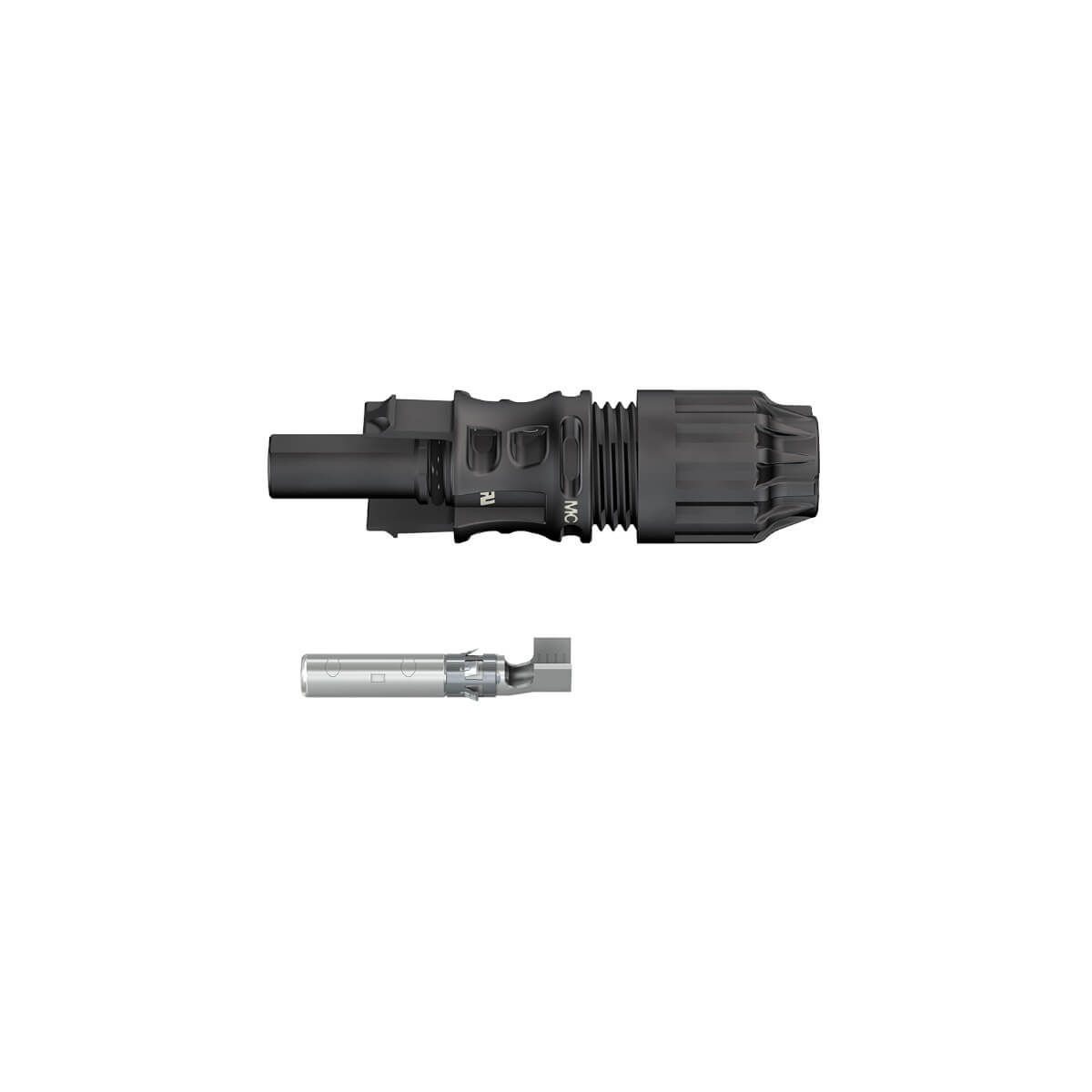

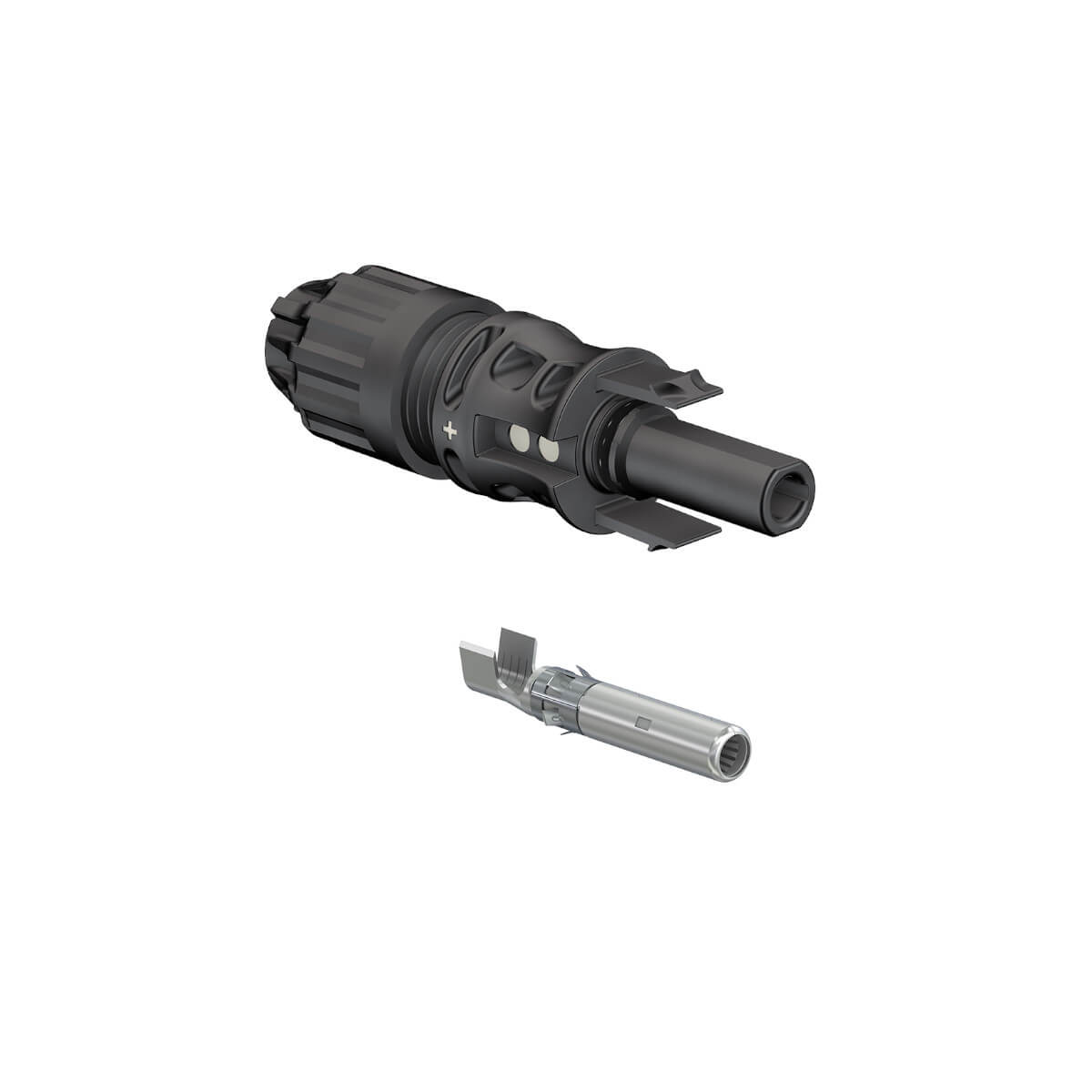

Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm
| Type of manufacturer: | PV-KBT4-EVO 2/6I-UR |
|---|---|
| Manufacturer Art. No.: | 32.0086P0001-UR |
| Art. Nr.: | 6521 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
6521
Description
Stäubli Multi Contact MC4-EVO 2 socket for system voltages up to 1,500 V DC and cables up to 6 mm²
Stäubli's MC4 and MC4-EVO 2 connectors are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (connectors – safety requirements and tests) for general low-voltage DC applications.
The scope of delivery includes the socket as well as the inner part.
Product advantages
- Meets the requirements of IEC 61984:2008
- TÜV certification in accordance with IEC 62852:2014 in combination with appropriate PV cables
- UL certification according to 6703:2014 in combination with appropriate PV cables
- Can also be used in systems beyond the photovoltaic sector
Product features Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 - 6.4mm
- Cable cross section (conductor): 4/6 mm²
- Outer cable diameter: 4.7 – 6.4 mm
- Rated voltage: 1,500 V DC
- Rated current (30°C) at 4 mm² cable cross-section: 51 A
- Rated current (30°C) at 6 mm² cable cross-section: 65 A
- Ambient temperature: -40 °C to +85 °C
- Protection category: IP 65
Downloads
Downloads
Videos
Videos
-
Stäubli MC4 PV connector assembly instructions videoThe YouTube video has been blocked due to the cookie settings.
-
Matching accessories
-
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black- Type of manufacturer: 713531
- Art. Nr.: 5752
Available from stock{ "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m red- Type of manufacturer: 713569
- Art. Nr.: 5753
Available from stock{ "id": "26b5b256d5d05ee1b34a261745ed4e81", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m red", "item_id": "5753", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "26b5b256d5d05ee1b34a261745ed4e81" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 m² 500m blue- Type of manufacturer: 713570
- Art. Nr.: 5754
Available from stock{ "id": "8aa3e56907415746bb6c683f70fbd8cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 m² 500m blue", "item_id": "5754", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8aa3e56907415746bb6c683f70fbd8cb" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black- Type of manufacturer: 713531
- Art. Nr.: 5734
Available from stock{ "id": "02eb7ea1d0a956a5b4c52598abf1754f", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black", "item_id": "5734", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "02eb7ea1d0a956a5b4c52598abf1754f" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 4.0 mm² 500m black- Type of manufacturer: 713530
- Art. Nr.: 5756
Available from stock{ "id": "0a9fb4bb1f255cc2b69927bd7b0c9159", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 4.0 mm² 500m black", "item_id": "5756", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0a9fb4bb1f255cc2b69927bd7b0c9159" } } -

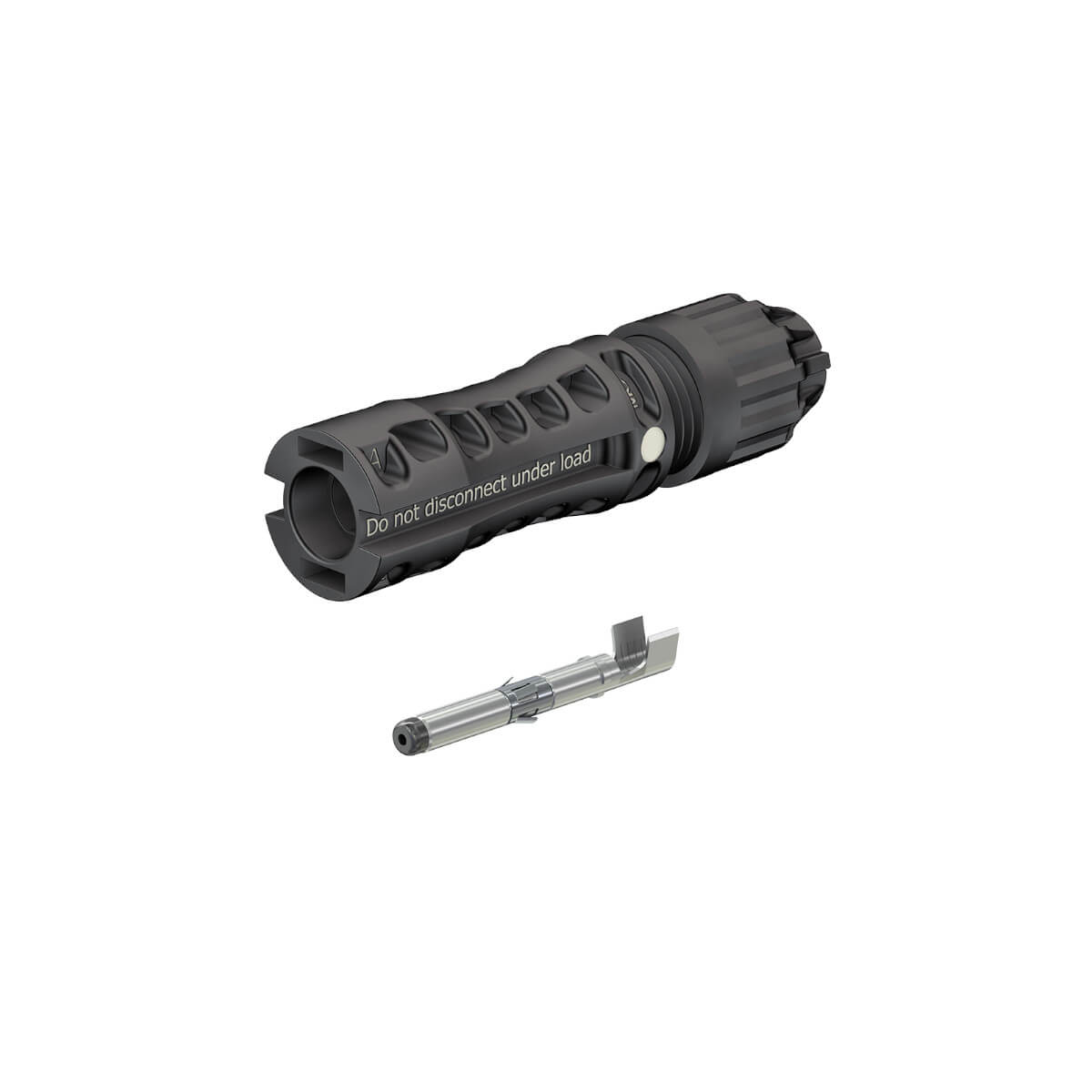

Stäubli MC4-EVO 2 plug 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm- Type of manufacturer: PV-KST4-EVO 2/6I-UR
