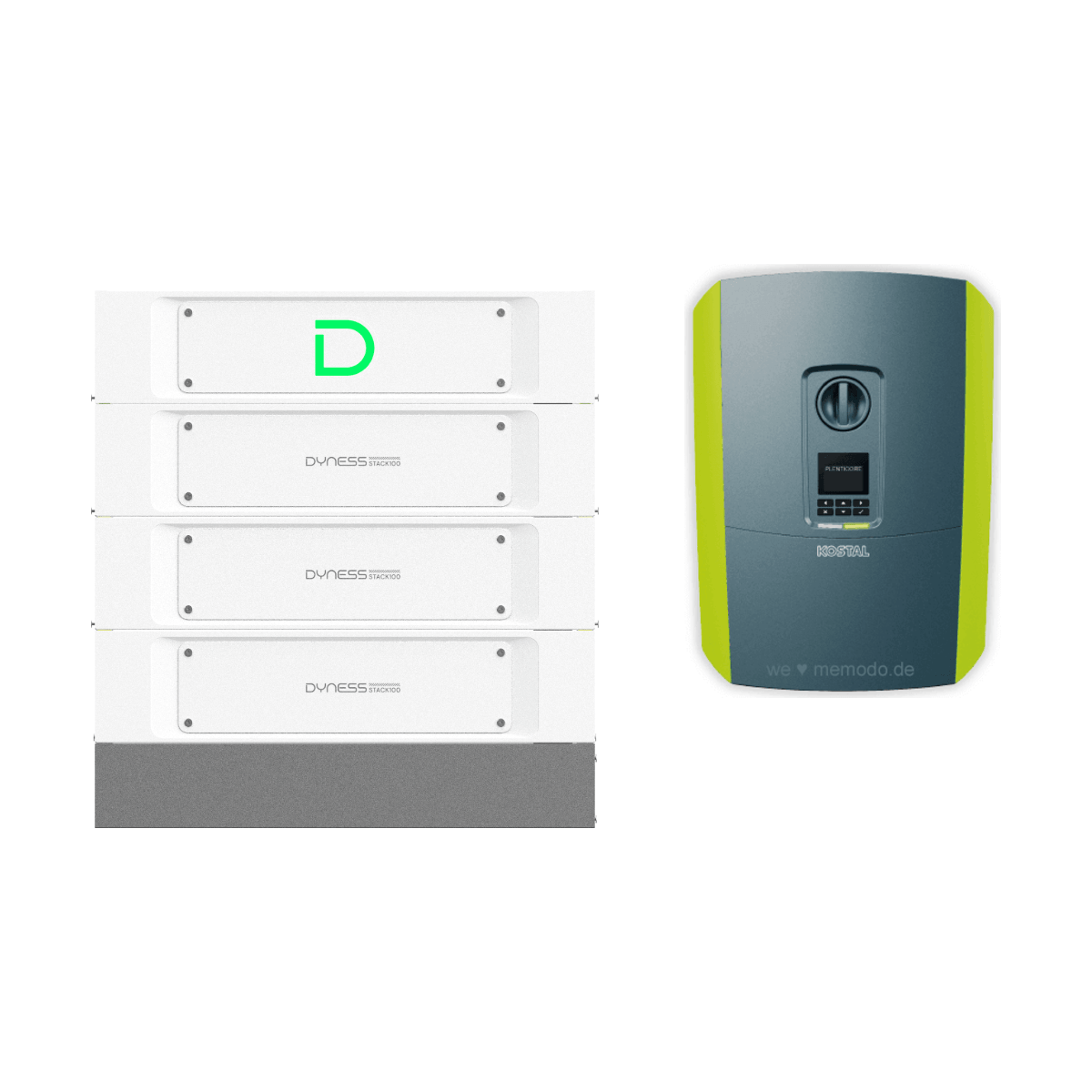

Kostal Plenticore plus 10 G2 with Dyness Stack 100 15.36 kWh
| Art. Nr.: | 16794 |
|---|---|
| Inverter: | Kostal Plenticore plus 10 G2 |
| Phases: | 3 |
| Solar battery: | Dyness Stack 100 15,36 kWh |
| Net capacity: | 14.59 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
Prices are only visible to business customers upon successful registration.
- TIP
Product number:
16794
-
-
{ "id": "3e2ac886da205aa08c69bad6a1bbbd88", "item_brand": "", "item_name": "Kostal Plenticoin Card EU without DE", "item_id": "14309", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3e2ac886da205aa08c69bad6a1bbbd88" } } -
{ "id": "ab2cf80857d859adb0ca8444d783f149", "item_brand": "", "item_name": " Kostal Smart Energy Meter G2", "item_id": "7613", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ab2cf80857d859adb0ca8444d783f149" } }
-
Description
Kostal Plenticore plus 10 G2 with Dyness Stack 100, 15.36 kWh in the storage package
The Kostal Plenticore plus 10 G2, together with the Dyness Stack 100 15.36 kWh, forms a flexible and efficient complete package. It features continuous self-consumption monitoring, dynamic power control, intelligent shading management and the tried-and-tested, free Kostal Portal. The integrated web server also allows for local use.
The Dyness Stack 100 – 15.36 kWh is a compact and modular high-voltage battery solution, ideal for private households as well as small commercial and industrial applications. The system is based on safe and durable lithium iron phosphate (LiFePO4) technology and, thanks to its space-saving stackable design, offers quick and easy installation. Integrated safety features, such as an aerosol fire suppression system and an intelligent battery management system, ensure maximum safety and service life.
Warranty extensions can be purchased at https://www.kostal-solar-electric.com/de-de/service-und-support/kostal-garantie/
Battery activation cost permanently reduced: only 1 PLENTICOIN required, down from 3 previously.
Product specifications: Dyness Stack 100 15.36 kWh
- Total capacity: 15.36 kWh
- Usable capacity: 14.59 kWh (95% Depth of discharge)
- Nominal voltage: 153.6 V
- Weight: approx. 141 kg (3 modules)
- Dimensions (WxDxH): 591 × 390 × 634 mm
- Cycle life: >6,000 cycles / 10-year warranty
- Operating temperature: -20 °C to +50 °C
- Protection rating: IP20
- Cooling: active air circulation
- Communication: CAN, RS485, Wi-Fi with OTA updates
- Installation type: Stacking
- Safety: integrated BMS with cell protection, temperature monitoring and aerosol fire suppression system
Product features: Kostal Plenticore plus 10 G2
- Mains connection: 3-phase
- AC power: 10.0 kW
- Transformerless design
- 2 + 1 MPP trackers
- DC isolator integrated into the front panel
- Interfaces: Wi-Fi, Ethernet, USB, CAN, RS485, Modbus RTU, FRE
- Switch contact for self-consumption control (e.g. Heat pump)
- Dimensions: 563 x 405 x 233 mm (H x W x D)
- Weight: 21.6 kg
- Protection class: IP 65
- 10-year warranty (subject to registration with Kostal)
Contents
- Kostal Plenticore plus 10 G2
- Dyness Stack 100 15.36 kWh comprising 1 BDU including base and 3 battery modules
