OBO generator connection box type I+II, 2x3 MPP, combined arrester
| Type of manufacturer: | PVG-BC1500M110 |
|---|---|
| Manufacturer Art. No.: | 5088462 |
| Art. Nr.: | 15120 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
Available from 19.06.2026
Product number:
15120
Description

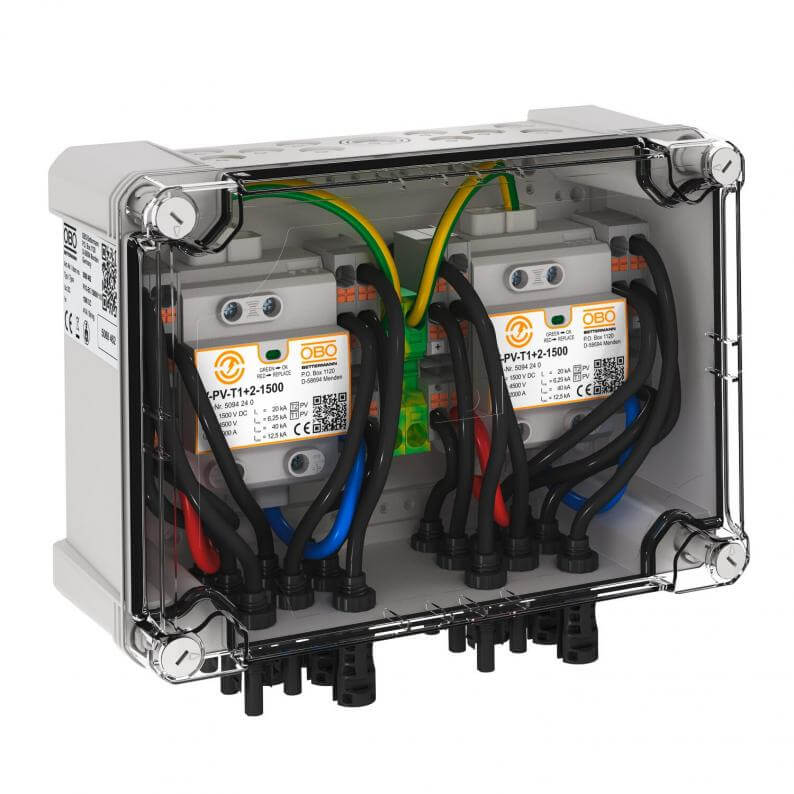

OBO Generator Connection Box Type I+II, 2x3 MPP, Combined Surge Arrester
Manufacturer’s reference: 5088462 / PVG-BC1500M110
The Generator Connection Box Type 1+2 with MC4-Evo 2 connectors is used to connect 2 × 3 PV strings and to provide effective DC protection for your Inverter. The robust, UV-resistant polycarbonate housing with IP67 protection and an integrated combination arrester for lightning protection equip potential and surge protection in accordance with current standards ensures perfect outdoor use. Ideal for photovoltaic systems with up to 1500 V DC.
Product benefits
- Surge protection in accordance with IEC 60364-7-712 (VDE 0100-712)
- High quality & robustness: IP67 housing with UV resistance
- Easy installation: Pre-assembled MC4-Evo 2 connectors
Product features
- Maximum DC continuous voltage: 1500 V
- Number of MPPT channels: 2
- Inputs per MPPT: 3
- Max. input current per string: 57 A

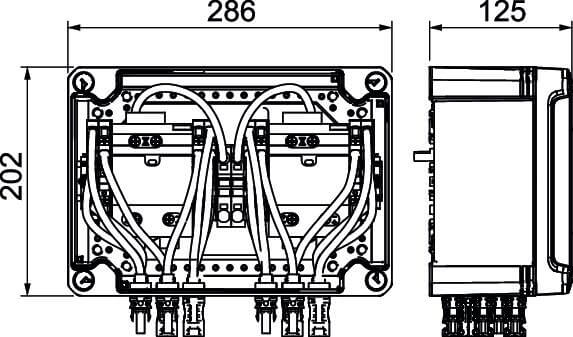

- Dimensions: 202 x 286 x 125 mm (HxWxD)
- Weight: 267 kg
- Protection class: IP67
-
