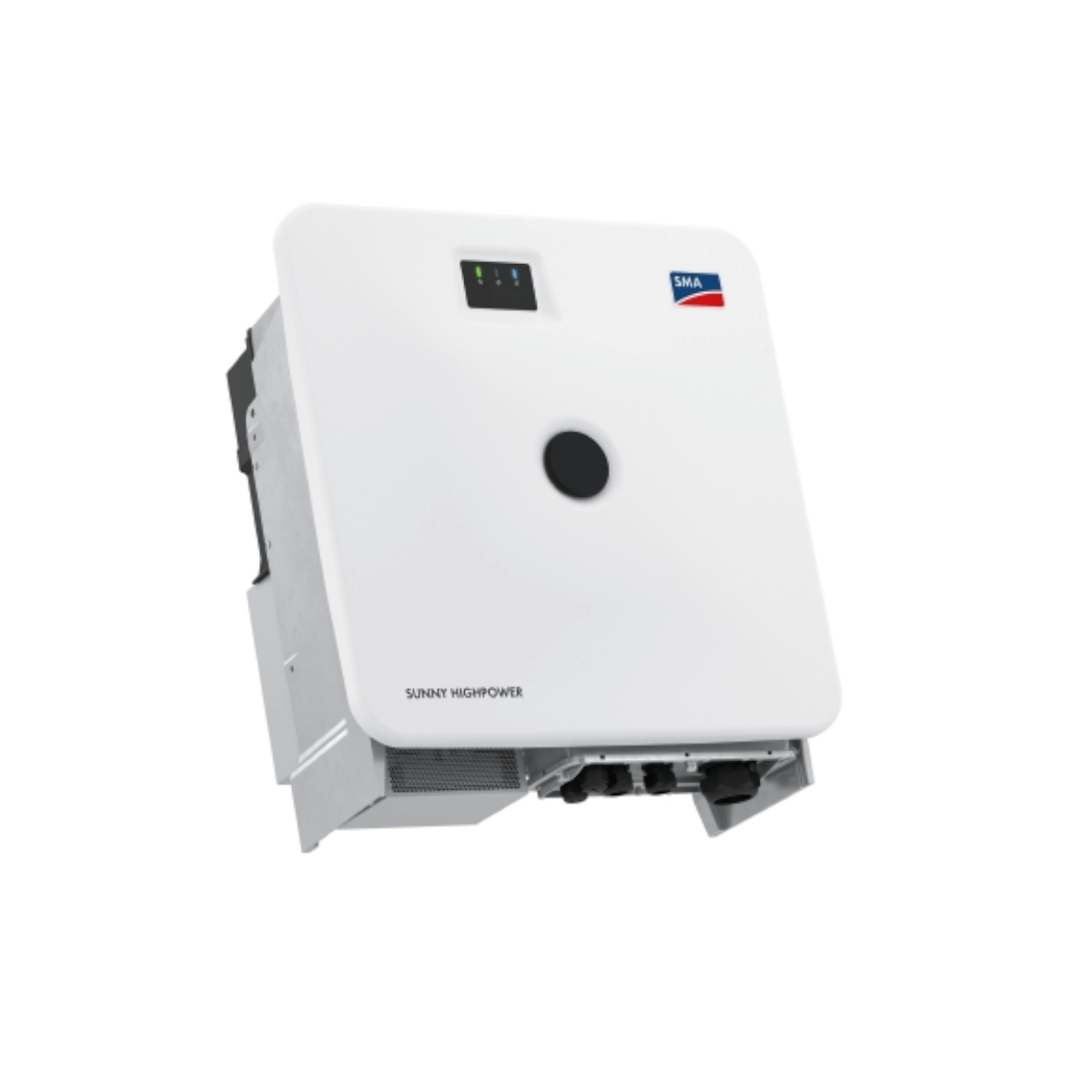

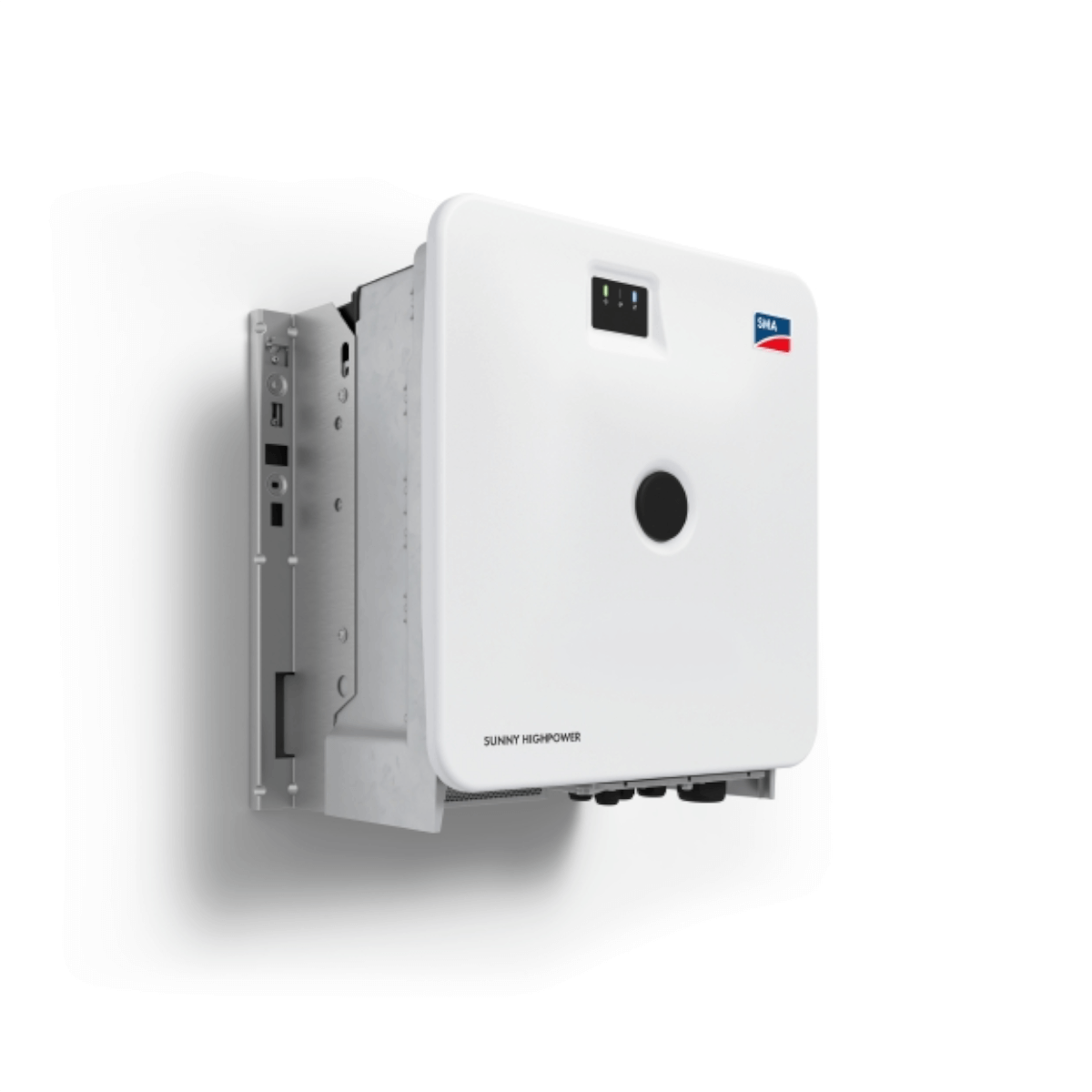

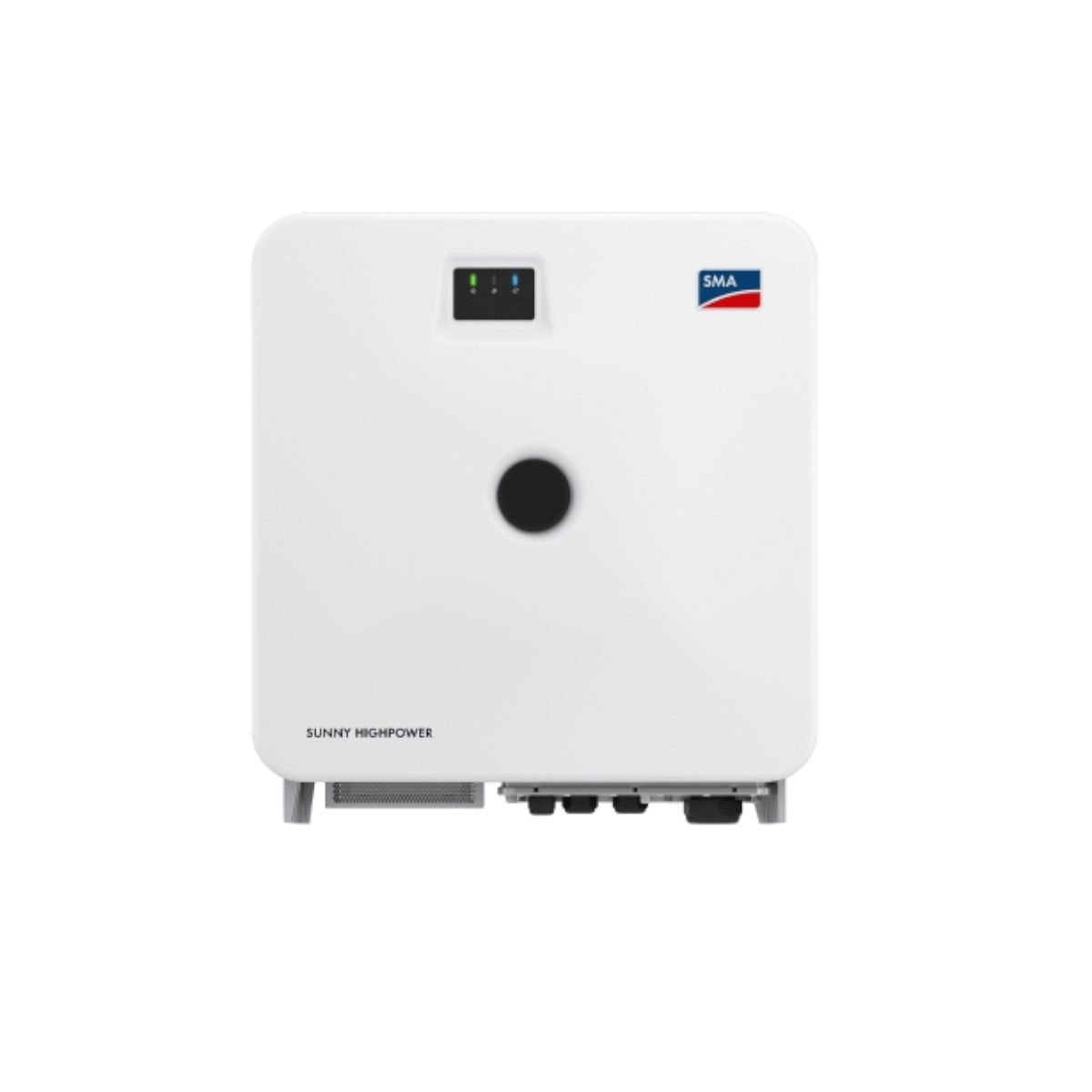

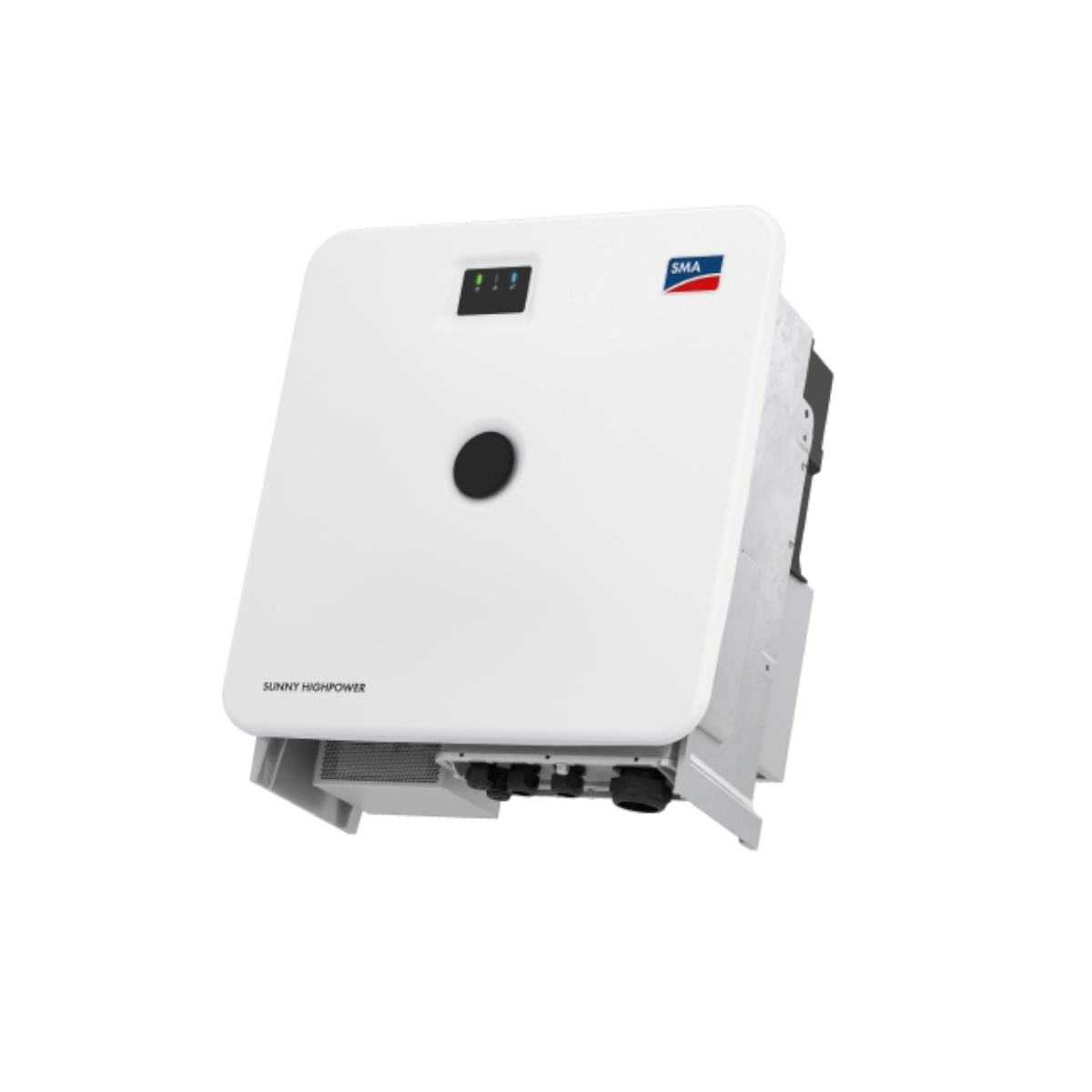

SMA Sunny Highpower PEAK3 SHP 100-21

SMA

Type of manufacturer:	SHP 100-21
Manufacturer Art. No.:	3-100-1000-1-21
Art. Nr.:	8977
Pieces per package unit:	1 per carton 1 per pallet
Phases:	3
Inverter type:	PV inverter, Project inverter
MPP-Tracker:	1
AC power:	100 kW
Warranty:	5 years
Communication:	Speedwire / Webconnect
MPP voltage range:	590 - 1000 Volt

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 8977

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 8977

Recommended accessories
- LG Chem RESU data cable for 3.3, 6.5 and 10

  Art. Nr.: 2793

  Helukabel

  { "id": "a35d21b2f8fb5835862ce423c8819265", "item_brand": "", "item_name": "LG Chem RESU data cable for 3.3, 6.5 and 10", "item_id": "2793", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a35d21b2f8fb5835862ce423c8819265" } }
- SMA Data Manager M

  Art. Nr.: 12484

  SMA

  { "id": "a42f181fd3ed5d93bfad8dcacf2f7994", "item_brand": "", "item_name": "SMA Data Manager M", "item_id": "12484", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a42f181fd3ed5d93bfad8dcacf2f7994" } }
- SMA Energy Meter-20

  Art. Nr.: 2837

  SMA

  { "id": "ca63fe68321f59f38c50f350b50ac08c", "item_brand": "", "item_name": "SMA Energy Meter-20", "item_id": "2837", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ca63fe68321f59f38c50f350b50ac08c" } }
- Raycap AC overvoltage protection top-hat rail type II TN-S/ TT

  Art. Nr.: 4329

  Raycap

  { "id": "f234fff5f08f5fbd89fef8b89ae918f8", "item_brand": "", "item_name": "Raycap AC overvoltage protection top-hat rail type II TN-S/ TT", "item_id": "4329", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f234fff5f08f5fbd89fef8b89ae918f8" } }

The SMA Sunny Highpower Peak3 SHP 100-21

No approval for VDE-AR-N 4105, only for VDE-AR-N 4110/4120

The Sunny Highpower PEAK3 is perfect for large PV systems that require an MPP tracker and feed in at medium or high voltage level. With the help of a project-specific DC combiner box, it is possible to oversize the PV system by up to 200 %. The inverter can also withstand temperatures of up to 50 °C without derating. The PEAK3 comes with the proven SMA platform with integrated web server and offers high reliability in addition to a flexible, decentralized system design. In combination with the SMA Data Manager, the PEAK3 is fully compatible with the ennexOS energy management platform.

Product advantages

Fast commissioning
Flexibility in the use of combiner boxes
Overdimensioning of up to 200 %
Integrated overvoltage protection DC (type 2) and AC (type 3)

Product features SMA Sunny Highpower PEAK3 SHP 100-21

Mains connection: 3-phase
AC rated power: 100 kVA
MPP tracker: 1
MPP voltage range: 590 V – 1.000 V
Max. input current DC: 180 A
Max. short-circuit current: 325 A
Communications: 2 x ethernet RJ45
Protection categories: IP65
Dimensions: 830 x 770 x 462 mm (H x W x D)
Weight: 99 kg
