OBO PV system solution, Type 2, for inverters with 1 MPP tracker, 1000 V DC
| Type of manufacturer: | PVG-C1000K 400 |
|---|---|
| Manufacturer Art. No.: | 5088657 |
| Art. Nr.: | 16609 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16609
Description

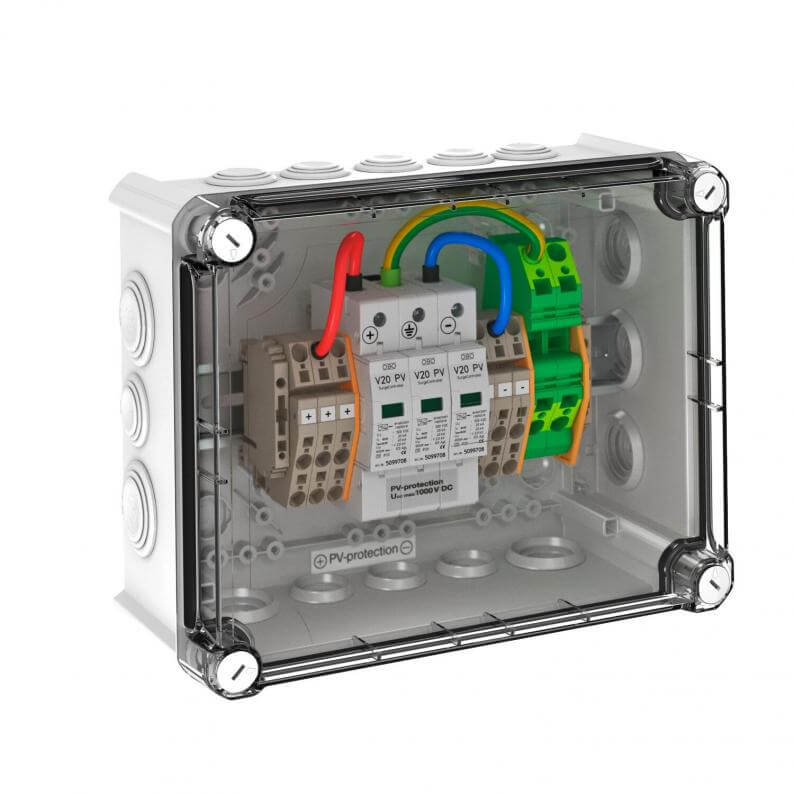

OBO PV system solution, Type 2, for inverters with 1 MPP tracker, 1000 V DC
Manufacturer’s reference: 5088657 / PVG-C1000K 400
PV system solution for PV inverters with 1 separate MPP tracker. For DC protection of the inverter in PV systems.
If there is a risk of condensation forming due to wind, ice, temperature or sunlight, additional measures may be required!
Product advantages
- Varistor arrester, pluggable with disconnection device in a fault-tolerant Y-circuit in accordance with VDE 0100-712 (50539-12)
- Low DC protection level: < 4.0 kV (Uoc max = 1000 V DC with V20-C/0-500PV)
- Each protection unit comes with 8 pre-installed terminal points in the housing, up to 6 mm², rated up to 30 A DC per terminal
- Pre-assembled in a polycarbonate housing (IP66), UV-resistant for outdoor use, including cable gland set
Product features
- On-device indication: visual
- Protection rating: IP66
- Test class: Type 2
- Max. PV voltage: 1000 V
- Maximum continuous DC voltage: 1000 V
- Rated surge current (8/20 µs): 20 kA
- Number of poles: 3
- Mounting type: pre-assembled in housing
- Design: Type 2 in enclosure with terminals
- Short-circuit proof
- Mains type: DC
- Operating temperature: min. -40 °C, max. 80 °C
- SPD in accordance with EN 61643-11: Type 2
- LPZ: 1→2
- Maximum discharge surge current (8/20 μs): 40 kA
- Maximum upstream fuse rating: 125 A
- Number of MPPT channels: 1
- Inputs per MPPT: 4
- Outputs per MPPT: 4
